CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon

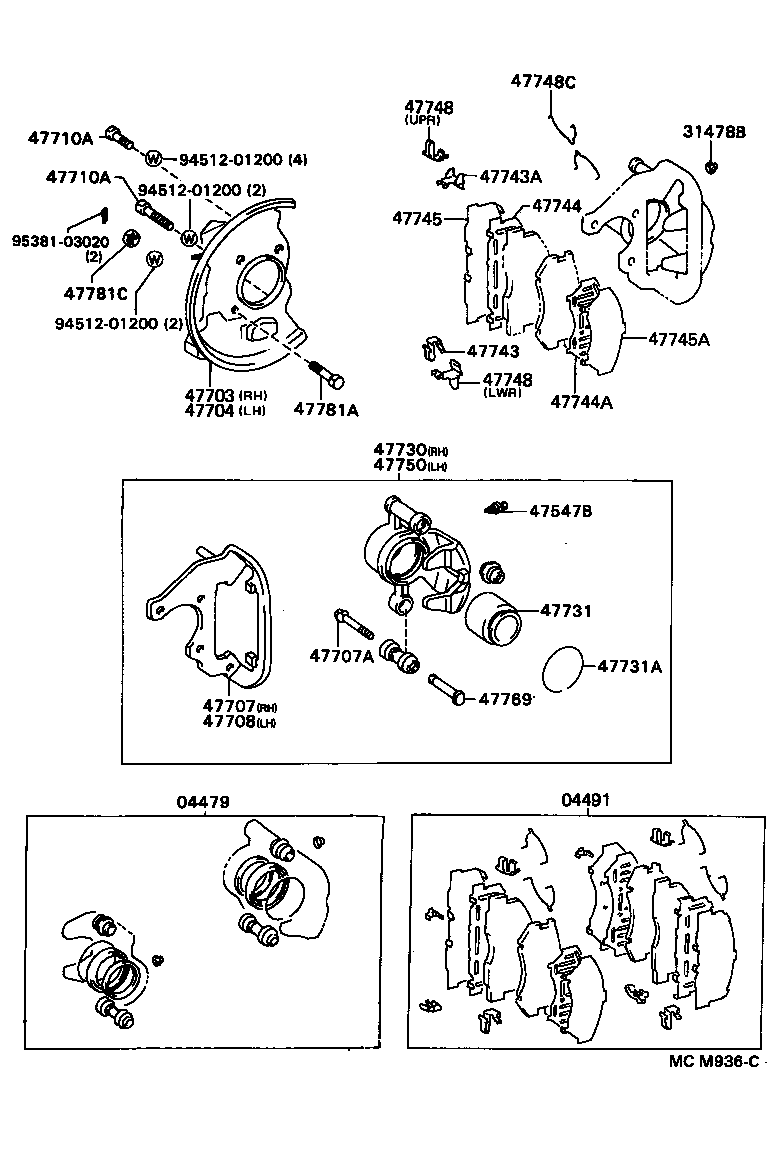

ILLUST NO. 1 OF 2(9201- )CR27,KR27,YR29
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-28050 |
CR27,KR27,YR29 |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-28290 |
CR27,KR27,YR29 |
1 | ||
| 04491-28370 |
CR27,KR27,YR29 |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
CR27,KR27,YR29 |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27040 |
CR27,KR27,YR29 |
2 | ||
| 47703 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH | ||||
| 47703-28050 |
CR27,KR27,YR29 |
1 | ||
| 47703-28051 |
CR27,YR29 |
1 | ||
| 47704 - COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH | ||||
| 47704-28050 |
CR27,KR27,YR29 |
1 | ||
| 47704-28051 |
CR27,YR29 |
1 | ||
| 47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH | ||||
| 47707-28150 |
CR27,KR27,YR29 |
1 | ||
| 47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE) | ||||
| 90119-10385 |
CR2#,KR2#,YR2# |
2 | ||
| 47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH | ||||
| 47708-28150 |
CR27,KR27,YR29 |
1 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12010 |
CR2#,KR2#,YR2# *12-1.25PX50-26 |
2 | ||
| 90101-12030 |
CR2#,KR2#,YR2# *12-1.25PX31-20 |
4 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12010 |
CR2#,KR2#,YR2# *12-1.25PX50-26 |
2 | ||
| 90101-12030 |
CR2#,KR2#,YR2# *12-1.25PX31-20 |
4 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-28220 |
CR27,KR27,YR29 |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-28040 |
CR27,KR27,YR29 |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-67001 |
CR27,KR27,YR29 |
2 | ||
| 47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47743-14040 |
CR2#,KR2#,YR2# |
2 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-28010 |
CR2#,KR2#,YR2# |
2 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-28130 |
CR2#,KR2#,YR2# |
2 | ||
| 47744A - SHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47744-28120 |
CR27,KR27,YR29 |
2 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-28070 |
CR2#,KR2#,YR2# |
2 | ||
| 47745A - SHIM, ANTI-SQUEAL, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47745-28060 |
CR27,KR27,YR29 |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14050 |
CR2#,KR2#,YR2# UPR |
2 | ||
| 47748-28010 |
CR2#,KR2#,YR2# LWR |
2 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-14050 |
CR2#,KR2#,YR2# UPR |
2 | ||
| 47748-28010 |
CR2#,KR2#,YR2# LWR |
2 | ||
| 47748C - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47748-20020 |
CR2#,KR2#,YR2# |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-28220 |
CR27,KR27,YR29 |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-28020 |
CR2#,KR2#,YR2# |
2 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90102-12001 |
CR27,KR27,YR29 |
2 | ||
| 90102-12001 |
CR2#,KR2#,YR2# |
2 | ||
| 47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 94145-71200 |
CR2#,KR2#,YR2# |
2 | ||
| Common parts | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||
ILLUST NO. 2 OF 2(9201- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-28180 |
CR27,KR27,YR29 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-28040 |
CR27,KR27,YR29 |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-14020 |
CR27,KR27,YR29 |
1 | ||
