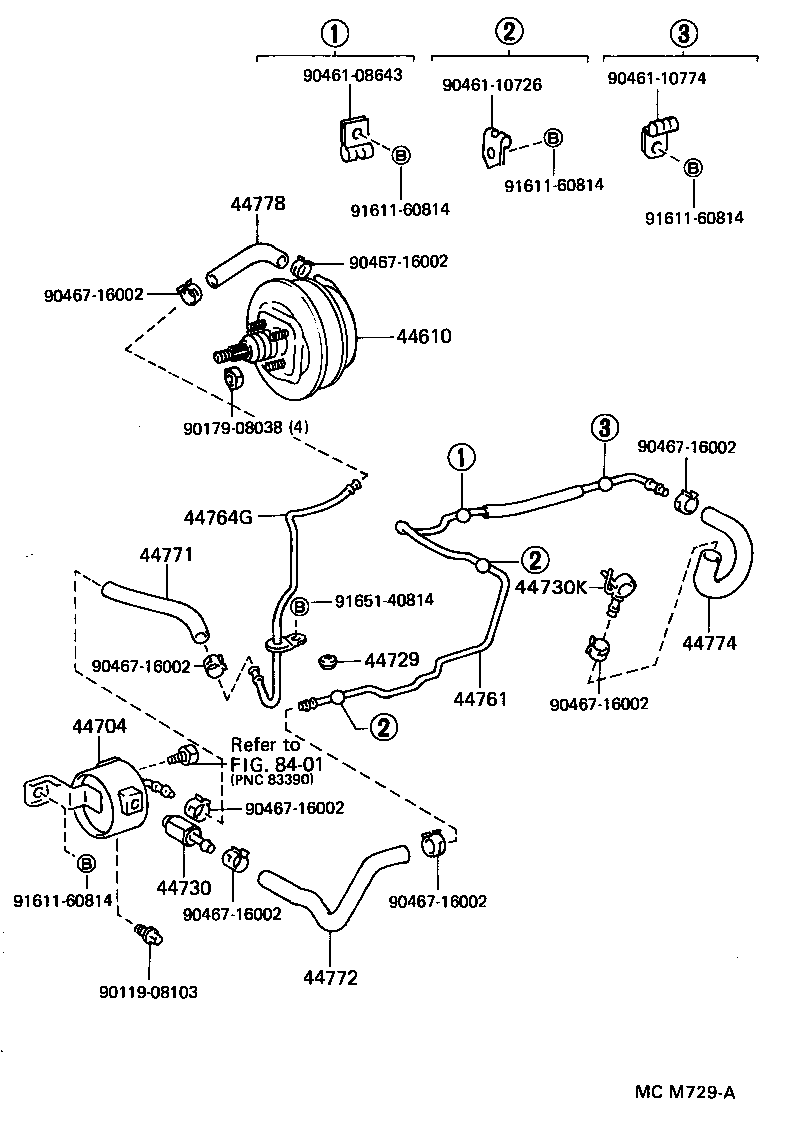

Toyota Liteace van wagon CR27 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-28770	CR2#..LHD	01/1992 - 01/1995	1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-28070	CR2#	09/1993 - 01/1995	1
44704-28030	CR2#	01/1992 - 09/1993	1
44729 - GASKET, VACUUM TUBE
44729-28010	CR2#,KR2#,YR2#	01/1992 - 01/1995	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60050	CR2#	01/1992 - 01/1995	1
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-09166	CR2#	01/1992 - 05/1993	1
90405-09064	CR2#	05/1993 - 09/1993	1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-28210	CR2#	01/1992 - 09/1993	1
44763-28070	CR2#	09/1993 - 01/1995	1
44764G - TUBE, CONNECTOR TO BRAKE BOOSTER
44764-28070	CR2#,KR2#,YR2#..LHD	01/1992 - 01/1995	1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-28090	CR2#..LHD	01/1992 - 09/1993	1
44771-28140	CR2#..LHD	09/1993 - 01/1995	1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-28110	CR2#	01/1992 - 09/1993	1
44772-28130	CR2#	09/1993 - 01/1995	1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-28150	CR2#	01/1992 - 05/1993	1
44774-28151	CR2#	05/1993 - 09/1993	1
44779-28020	CR2#	09/1993 - 01/1995	1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-28060	CR2#,KR2#,YR2#..LHD	01/1992 - 01/1995	1
Common parts
90119-08103
90179-08038
90461-08643
90461-10726
90461-10774
90467-16002
91611-60814
91651-40814
Linked diagrams
8401

CR27LV-MRSBEW (1992)
