CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

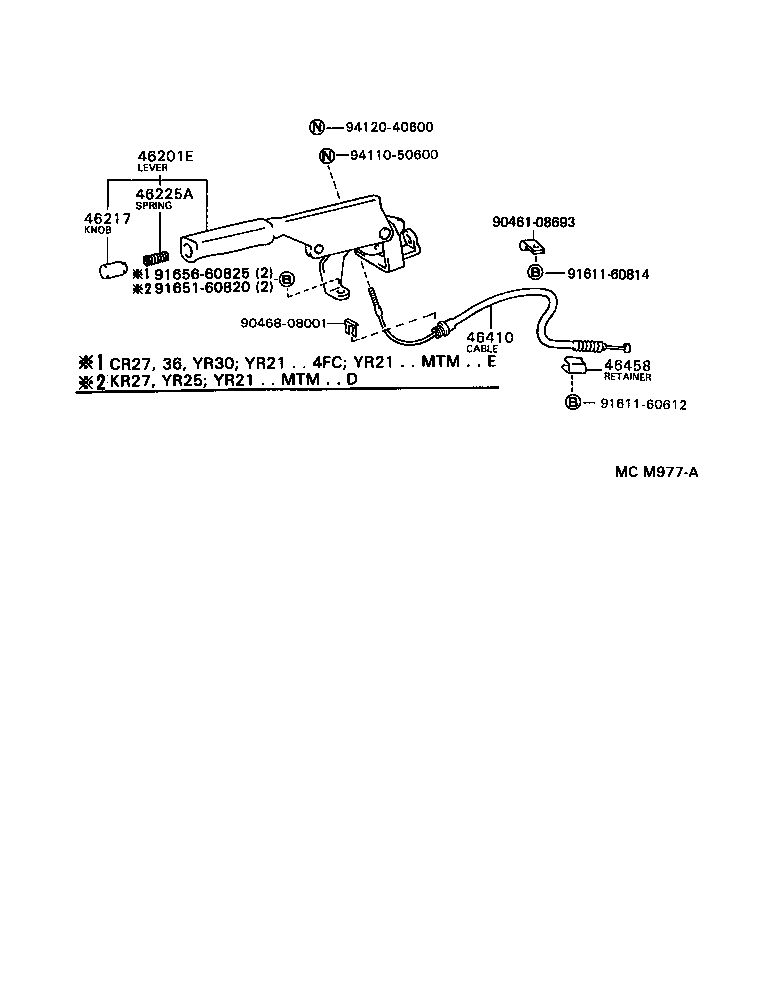

ILLUST NO. 1 OF 2(9201- )

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46410 46458 9046108693 9046808001 9161160612 9161160814 9165160820 9165660825 9411050600 9412040600
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-28120B0

CR2#,KR2#,YR2#

GRAY,TRIM1#

 1
46201-28120B0

KR27..LHD;CR2#,KR21,YR2#

GRAY,TRIM1#

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-12020B3

CR2#,KR2#,YR2#

BLUISH GRAY,TRIM1#

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10132

CR2#,KR2#,YR2#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-28190

CR2#..LHD

 1
46458 - RETAINER, CABLE
46458-28010

CR2#,KR2#,YR2#

 1
Common parts
90461-08693
90468-08001
91611-60612
91611-60814
91651-60820
91656-60825
94110-50600
94120-40600

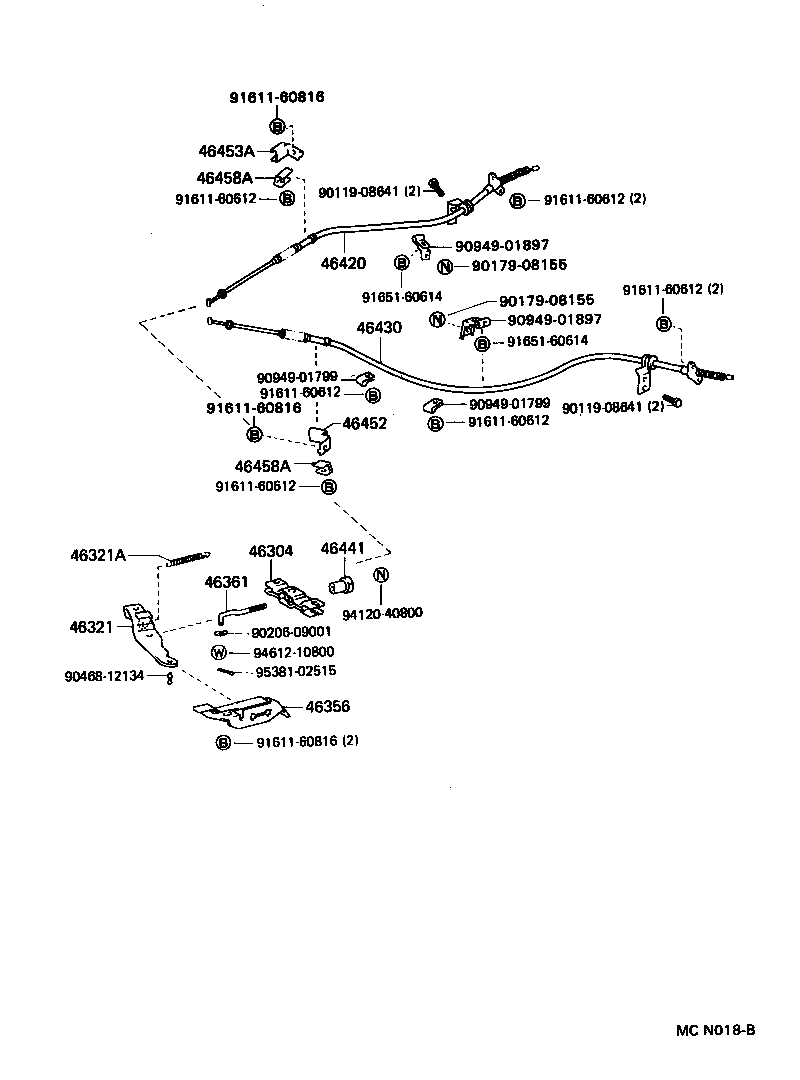

ILLUST NO. 2 OF 2(9201- )CR27,KR27,YR29

Click highlighted areas on diagram

diagram 46304 46321 46321A 46356 46361 46420 46430 46441 46452 46453A 46458A 46458A 9011908641 9011908641 9017908155 9017908155 9020609001 9046812134 9094901799 9094901799 9094901897 9094901897 9161160612 9161160612 9161160612 9161160612 9161160612 9161160612 9161160816 9161160816 9161160816 9165160614 9165160614 9412040800 9461210800 9538102515
Part # Description Qty Price
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46304-28010

CR2#,KR2#,YR2#

 1
46321 - LEVER, PARKING BRAKE INTERMEDIATE
46321-28060

CR2#,KR2#,YR2#

 1
46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)
90506-11006

CR2#,KR2#,YR2#

 1
46356 - BRACKET, EQUALIZER SUPPORT
46356-28031

CR2#,KR2#,YR2#

 1
46361 - ROD, PARKING BRAKE PULL
46361-28031

CR2#,KR2#,YR2#

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-28340

CR27,KR27,YR29

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-28290

CR27,KR27,YR29

 1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-35010

CR2#,KR2#,YR2#

 1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46452-28060

CR2#,KR2#,YR2#

 1
46453A - BRACKET, CABLE SUPPORT, NO.3
46453-28010

CR2#,KR2#,YR2#

 1
46458A - RETAINER, CABLE
46458-28010

CR2#,KR2#,YR2#

 2
46458A - RETAINER, CABLE
46458-28010

CR2#,KR2#,YR2#

 2
Common parts
90119-08641
90179-08155
90206-09001
90468-12134
90949-01799
90949-01897
91611-60612
91611-60816
91651-60614
94120-40800
94612-10800
95381-02515
