CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )CR2#..LHD

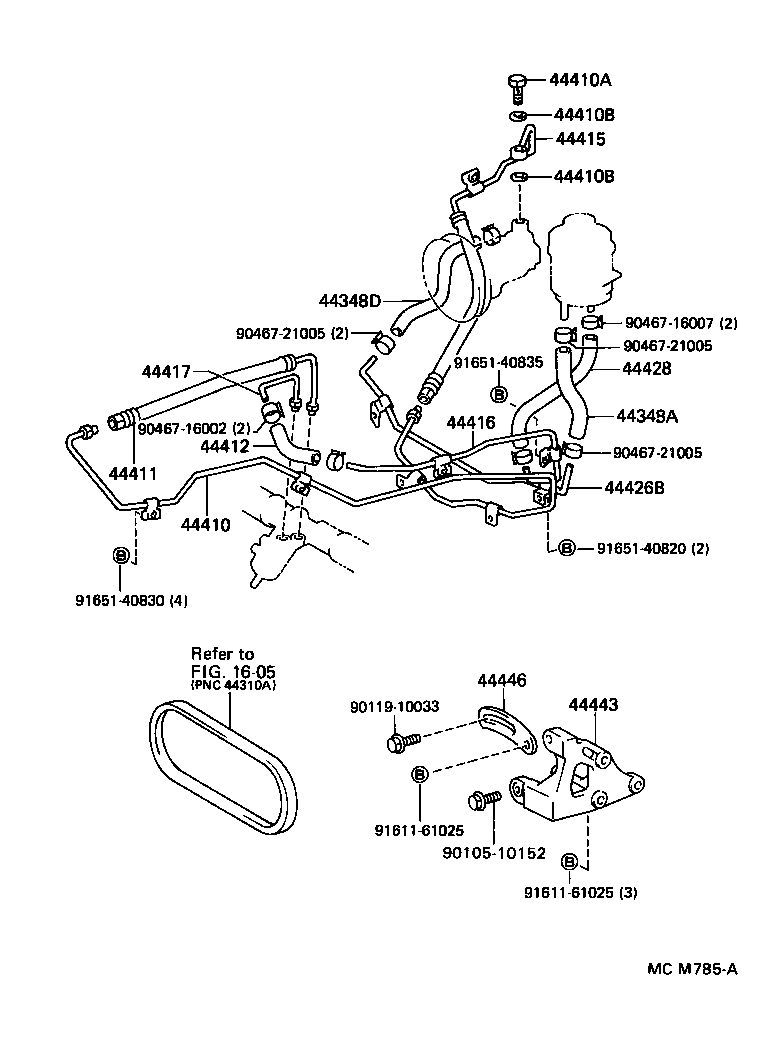

Click highlighted areas on diagram

diagram 1605 44348A 44348D 44410 44410A 44410B 44410B 44411 44412 44415 44416 44417 44426B 44428 44443 44446 9010510152 9011910033 9046716002 9046716007 9046721005 9046721005 9046721005 9161161025 9161161025 9165140820 9165140830 9165140835
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28160

CR2#

 1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-28110

CR2#

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28280

CR2#..LHD

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16008

CR2#,YR2#

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

CR2#,YR2#

 2
44410B - GASKET(FOR PRESSURE FEED TUBE)
90430-16242

CR2#,YR2#

 2
44411 - HOSE, PRESSURE FEED
44411-28051

CR2#,YR2#..LHD

 1
44412 - HOSE, RETURN
44412-28150

CR2#..LHD

 1
44415 - HOSE, PRESSURE FEED, NO.2
44415-28060

CR2#

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-28210

CR2#..LHD

 1
44417 - TUBE, RETURN, NO.2
44417-28190

CR2#,YR2#..LHD

 1
44426B - TUBE, OIL RESERVOIR TO PUMP
44426-28060

CR2#

 1
44428 - HOSE, RETURN, NO.2
44428-28010

CR2#

 1
44443 - BRACKET, PUMP
44443-14030

CR2#

 1
44446 - STRUT, ADJUSTING
44446-14010

CR2#

 1
Common parts
90105-10152
90119-10033
90467-16002
90467-16007
90467-21005
91611-61025
91651-40820
91651-40830
91651-40835
Linked diagrams
1605
