CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

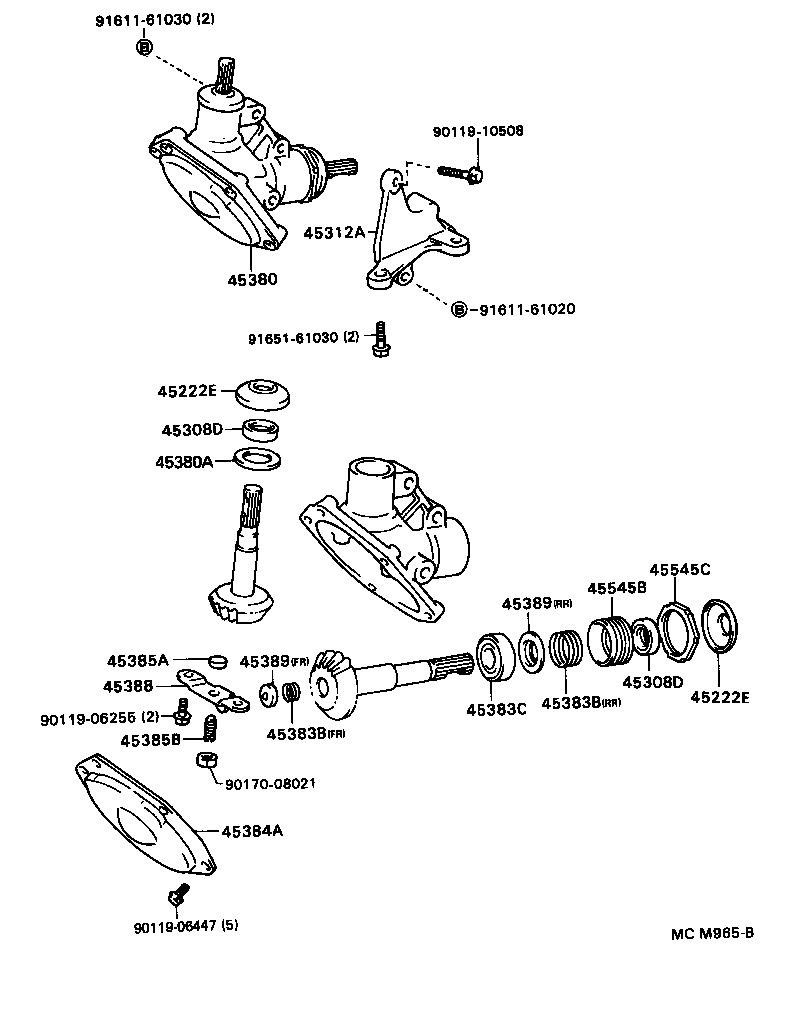

ILLUST NO. 3 OF 3(9201- )

Click highlighted areas on diagram

diagram 45222E 45222E 45308D 45308D 45312A 45380 45380A 45383B 45383B 45383C 45384A 45385A 45385B 45388 45389 45389 45545B 45545C 9011906255 9011906447 9011910508 9017008021 9161161020 9161161030 9165161030
Part # Description Qty Price
45222E - COVER, DUST(FOR STEERING BEVEL GEAR)
45222-27030

CR2#,KR2#,YR2#

TORQUE SHAFT SIDE

 1
45222-27050

CR2#,KR2#,YR2#

COLUMN TUBE SIDE

 1
45222E - COVER, DUST(FOR STEERING BEVEL GEAR)
45222-27030

CR2#,KR2#,YR2#

TORQUE SHAFT SIDE

 1
45222-27050

CR2#,KR2#,YR2#

COLUMN TUBE SIDE

 1
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15002

CR2#,KR2#,YR2#

 2
45308D - SEAL, OIL(FOR STEERING BEVEL GEAR HOUSING)
90311-15002

CR2#,KR2#,YR2#

 2
45312A - BRACKET, STEERING BEVEL GEAR HOUSING
45312-28020

CR2#,KR2#,YR2#..LHD

 1
45380 - GEAR ASSY, STEERING BEVEL
45380-37010

CR2#,YR2#..LHD

W(POWER STEERING)

 1
45380-28011

CR2#,KR2#,YR2#..LHD

 1
45380A - WASHER(FOR STEERING BEVEL GEAR)
90209-18005

CR2#,KR2#,YR2#

T=2.05,MARK 5

 1
90209-18008

CR2#,KR2#,YR2#

T=2.20,MARK 8

 1
90209-18004

CR2#,KR2#,YR2#

T=2.00,MARK 4

 1
90209-18007

CR2#,KR2#,YR2#

T=2.15,MARK 7

 1
90209-18003

CR2#,KR2#,YR2#

T=1.95,MARK 3

 1
90209-18002

CR2#,KR2#,YR2#

T=1.90,MARK 2

 1
90209-18006

CR2#,KR2#,YR2#

T=2.10,MARK 6

 1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-20080

CR2#,KR2#,YR2#

FR

 1
90501-18063

CR2#,KR2#,YR2#

RR

 1
45383B - SPRING, COMPRESSION(FOR STEERING BEVEL GEAR)
90501-20080

CR2#,KR2#,YR2#

FR

 1
90501-18063

CR2#,KR2#,YR2#

RR

 1
45383C - BEARING, RADIAL BALL(FOR STEERING BEVEL GEAR)
90363-15010

CR2#,KR2#,YR2#

 1
45384A - COVER, STEERING BEVEL GEAR
45384-27010

CR2#,KR2#,YR2#

 1
45385A - SEAT, LOCK BOLT(FOR STEERING BEVEL GEAR)
45385-27010

CR2#,KR2#,YR2#

 1
45385B - BOLT, SET(FOR LOCK BOLT SEAT)
90113-08006

CR2#,KR2#,YR2#

 1
45388 - PLATE, STEERING BEVEL GEAR
45388-27010

CR2#,KR2#,YR2#

 1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27010

CR2#,KR2#,YR2#

FR

 1
45389-27021

CR2#,KR2#,YR2#

RR

 1
45389 - HOLDER, STEERING BEVEL GEAR SPRING
45389-27010

CR2#,KR2#,YR2#

FR

 1
45389-27021

CR2#,KR2#,YR2#

RR

 1
45545B - SCREW, PINION BEARING ADJUSTING(FOR STEERING BEVEL GEAR
45545-10010

CR2#,KR2#,YR2#

 1
45545C - NUT(FOR STEERING BEVEL GEAR PINION BEARING ADJUST SCREW
90179-38001

CR2#,KR2#,YR2#

 1
Common parts
90119-06255
90119-06447
90119-10508
90170-08021
91611-61020
91611-61030
91651-61030

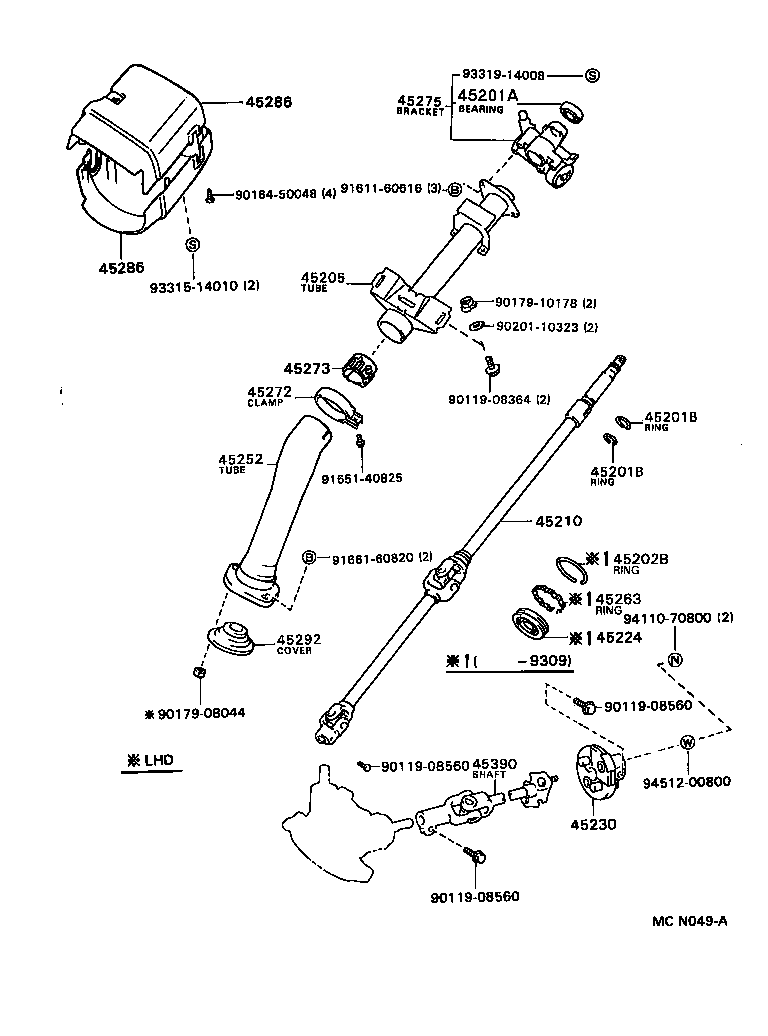

ILLUST NO. 1 OF 3(9201- )

Click highlighted areas on diagram

RIGID STEERING

diagram 45201A 45201B 45201B 45202B 45205 45210 45224 45230 45252 45263 45272 45273 45275 45286 45286 45292 45390 9011908364 9011908560 9011908560 9011908560 9016450048 9017908044 9017910178 9020110323 9161160616 9165140825 9166160820 9331514010 9331914008 9411070800 9451200800
Part # Description Qty Price
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

CR2#,KR2#,YR2#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CR2#,KR2#,YR2#

T=1.20

 1
90520-17269

CR2#,KR2#,YR2#

T=1.20

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CR2#,KR2#,YR2#

T=1.20

 1
90520-17269

CR2#,KR2#,YR2#

T=1.20

 1
45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
96152-00300

CR2#,KR2#,YR2#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28060

CR2#,KR2#,YR2#

 1
45205-28150

CR2#,KR2#,YR2#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-28070

CR2#,KR2#,YR2#..LHD

 1
45210-28061

CR2#,KR2#,YR2#

 1
45210-28100

CR2#,KR2#,YR2#

 1
45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
45225-26010

CR2#,KR2#,YR2#

L=16

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-28030

CR2#,YR2#

W(POWER STEERING)

 1
45230-28020

CR2#,KR2#,YR2#

 1
45252 - TUBE, STEERING COLUMN, LOWER
45252-28130

CR2#,KR2#,YR2#..LHD

 1
45263 - RING, STEERING COLUMN, NO.1
45263-32010

CR2#,KR2#,YR2#

 1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-28030

CR2#,KR2#,YR2#

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-28010

CR2#,KR2#,YR2#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-28081

CR2#,KR2#,YR2#..LHD

 1
45286 - COVER, STEERING COLUMN
45287-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,LWR

 1
45286-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,UPR

 1
45286 - COVER, STEERING COLUMN
45287-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,LWR

 1
45286-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,UPR

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-28030

CR2#,KR2#,YR2#

 1
45390 - SHAFT ASSY, STEERING TORQUE
45390-28050

CR2#,YR2#

W(POWER STEERING)

 1
45390-28040

CR2#,KR2#,YR2#

 1
Common parts
90119-08364
90119-08560
90164-50048
90179-08044
90179-10178
90201-10323
91611-60616
91651-40825
91661-60820
93315-14010
93319-14008
94110-70800
94512-00800

ILLUST NO. 1 OF 3(9201- )

Click highlighted areas on diagram

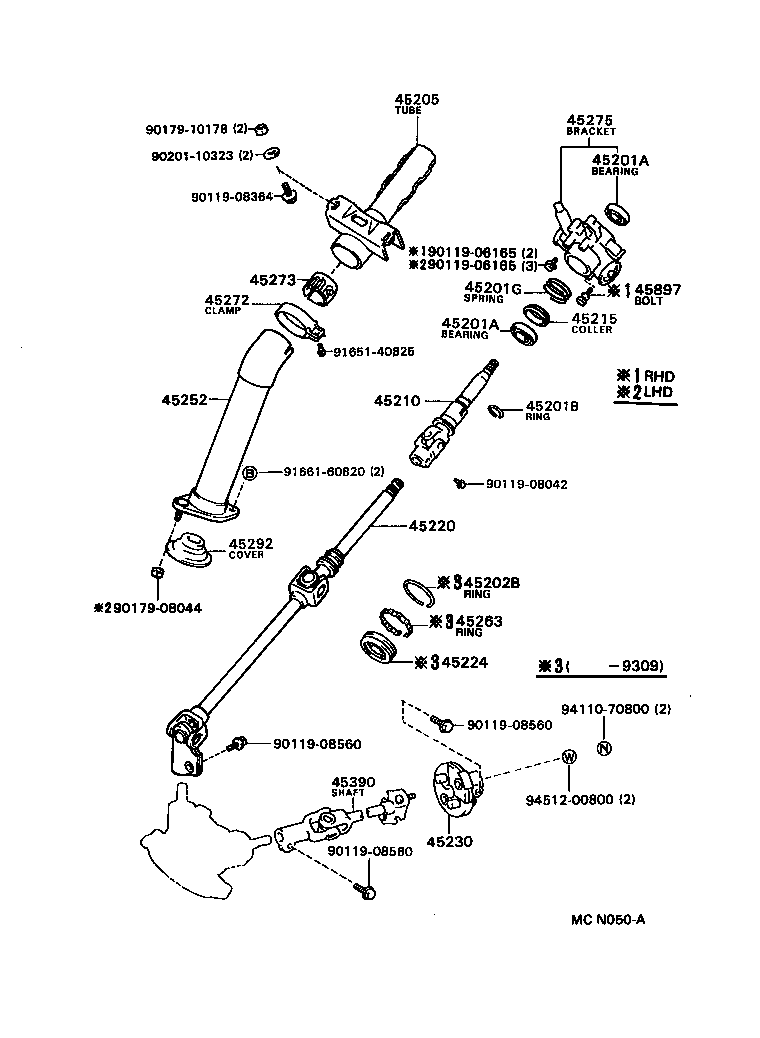

TILT STEERING

diagram 45201A 45201A 45201B 45201G 45202B 45205 45210 45215 45220 45224 45230 45252 45263 45272 45273 45275 45292 45390 45897 9011906165 9011906165 9011908042 9011908364 9011908560 9011908560 9011908560 9017908044 9017910178 9020110323 9165140825 9166160820 9411070800 9451200800
Part # Description Qty Price
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

CR2#,KR2#,YR2#

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

CR2#,KR2#,YR2#

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17042

CR2#,KR2#,YR2#

T=1.20

 1
90520-17269

CR2#,KR2#,YR2#

T=1.20

 1
45202B - RING, SHAFT SNAP(FOR STEERING INTERMEDIATE SHAFT)
96152-00300

CR2#,KR2#,YR2#

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-28060

CR2#,KR2#,YR2#

 1
45205-28150

CR2#,KR2#,YR2#

 1
45210 - SHAFT ASSY, STEERING MAIN
45210-28070

CR2#,KR2#,YR2#..LHD

 1
45210-28061

CR2#,KR2#,YR2#

 1
45210-28100

CR2#,KR2#,YR2#

 1
45224 - BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)
45225-26010

CR2#,KR2#,YR2#

L=16

 1
45230 - COUPLING ASSY, FLEXIBLE
45230-28030

CR2#,YR2#

W(POWER STEERING)

 1
45230-28020

CR2#,KR2#,YR2#

 1
45252 - TUBE, STEERING COLUMN, LOWER
45252-28130

CR2#,KR2#,YR2#..LHD

 1
45263 - RING, STEERING COLUMN, NO.1
45263-32010

CR2#,KR2#,YR2#

 1
45272 - CLAMP, STEERING COLUMN, LOWER
45272-28030

CR2#,KR2#,YR2#

 1
45273 - BUSH, STEERING MAIN SHAFT
45273-28010

CR2#,KR2#,YR2#

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-28081

CR2#,KR2#,YR2#..LHD

 1
45292 - SEAL, MAIN SHAFT LOWER DUST
45292-28030

CR2#,KR2#,YR2#

 1
45390 - SHAFT ASSY, STEERING TORQUE
45390-28050

CR2#,YR2#

W(POWER STEERING)

 1
45390-28040

CR2#,KR2#,YR2#

 1
45897 - BOLT, STEERING LOCK SET
45897-12030

CR2#,KR2#,YR2#

 1
Common parts
90119-06165
90119-08042
90119-08364
90119-08560
90179-08044
90179-10178
90201-10323
91651-40825
91661-60820
94110-70800
94512-00800

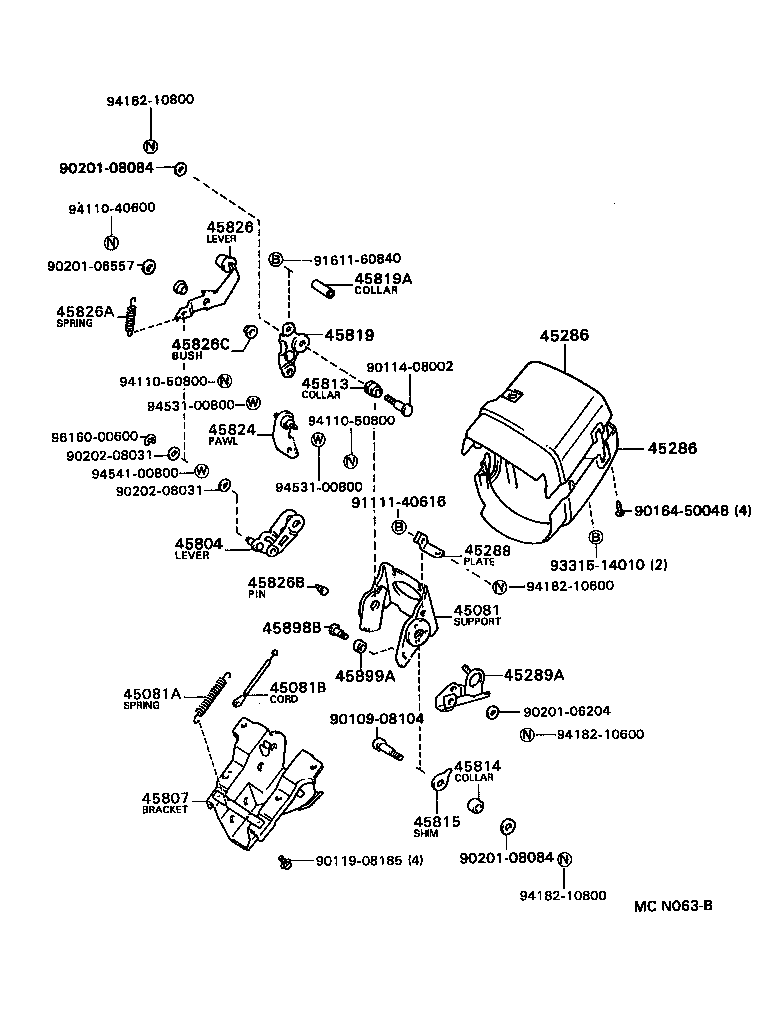

ILLUST NO. 2 OF 3(9201- )

Click highlighted areas on diagram

TILT STEERING

diagram 45081 45081A 45081B 45286 45286 45288 45289A 45804 45807 45813 45814 45815 45819 45819A 45824 45826 45826A 45826B 45826C 45898B 45899A 9010908104 9011408002 9011908185 9016450048 9020106204 9020106557 9020108084 9020108084 9020208031 9020208031 9111140616 9161160840 9331514010 9411040600 9411050800 9411050800 9418210600 9418210600 9418210800 9418210800 9453100800 9453100800 9454100800 9616000600
Part # Description Qty Price
45286 - COVER, STEERING COLUMN
45287-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,LWR

 1
45286-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,UPR

 1
45286 - COVER, STEERING COLUMN
45287-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,LWR

 1
45286-28330B0

CR2#,KR2#,YR2#..LHD

GRAY,TRIM1#,UPR

 1
Common parts
90109-08104
90114-08002
90119-08185
90164-50048
90201-06204
90201-06557
90201-08084
90202-08031
91111-40616
91611-60840
93315-14010
94110-40600
94110-50800
94182-10600
94182-10800
94531-00800
94541-00800
96160-00600
