CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

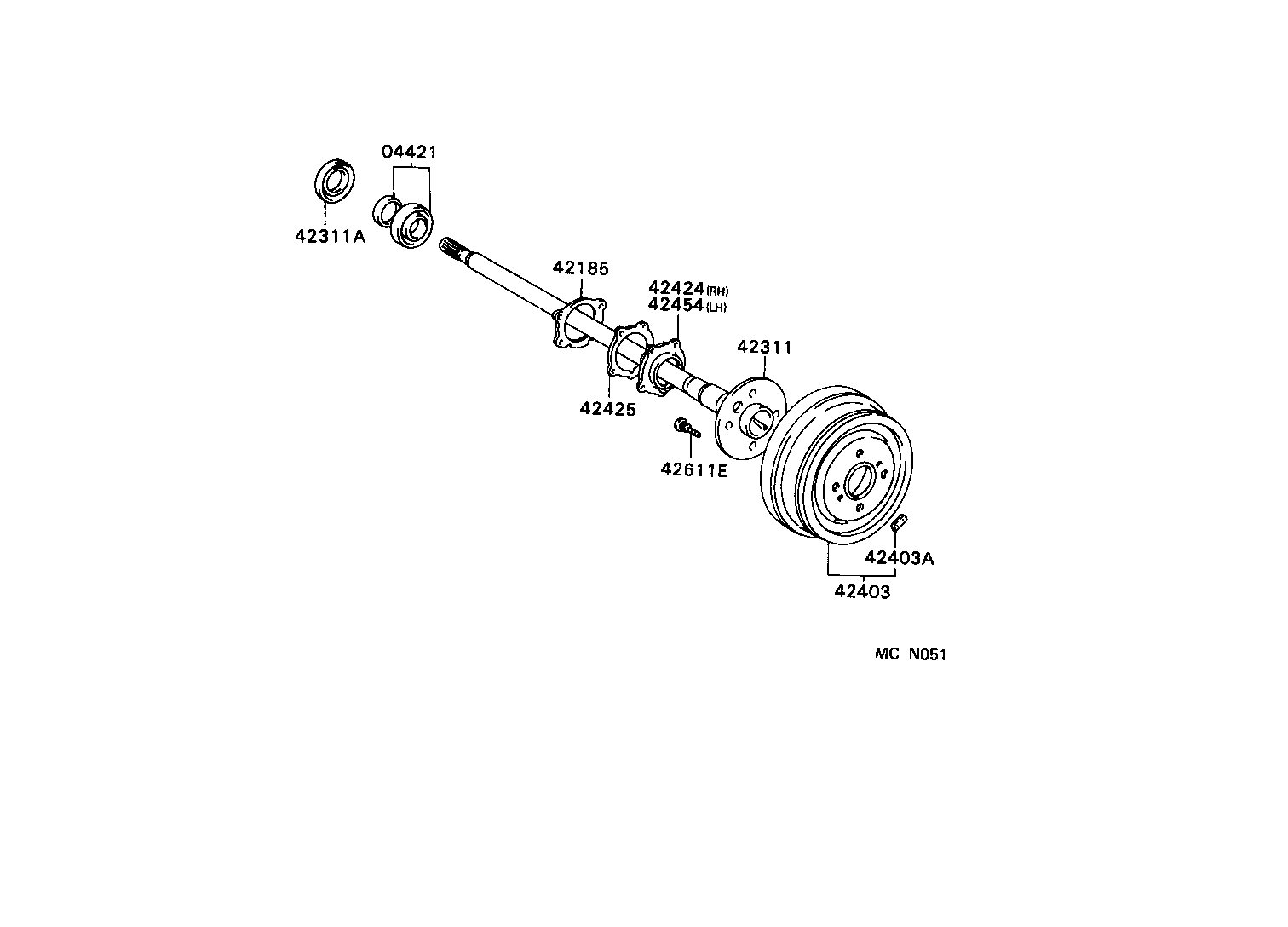

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-12020

CR2#,KR2#

 2
04421-27021

CR2#,KR2#

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-28010

CR2#,KR2#

 2
42311 - SHAFT, REAR AXLE
42311-22110

CR2#,KR2#

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

CR2#,KR2#,YR2#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-28020

CR2#,KR2#,YR2#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01117

CR2#,KR2#,YR2#

10G

 2
90937-01118

CR2#,KR2#,YR2#

20G

 2
90937-01119

CR2#,KR2#,YR2#

30G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-14020

CR2#,KR2#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-14020

CR2#,KR2#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-14010

CR2#,KR2#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

CR2#,KR2#,YR2#

 8
