CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

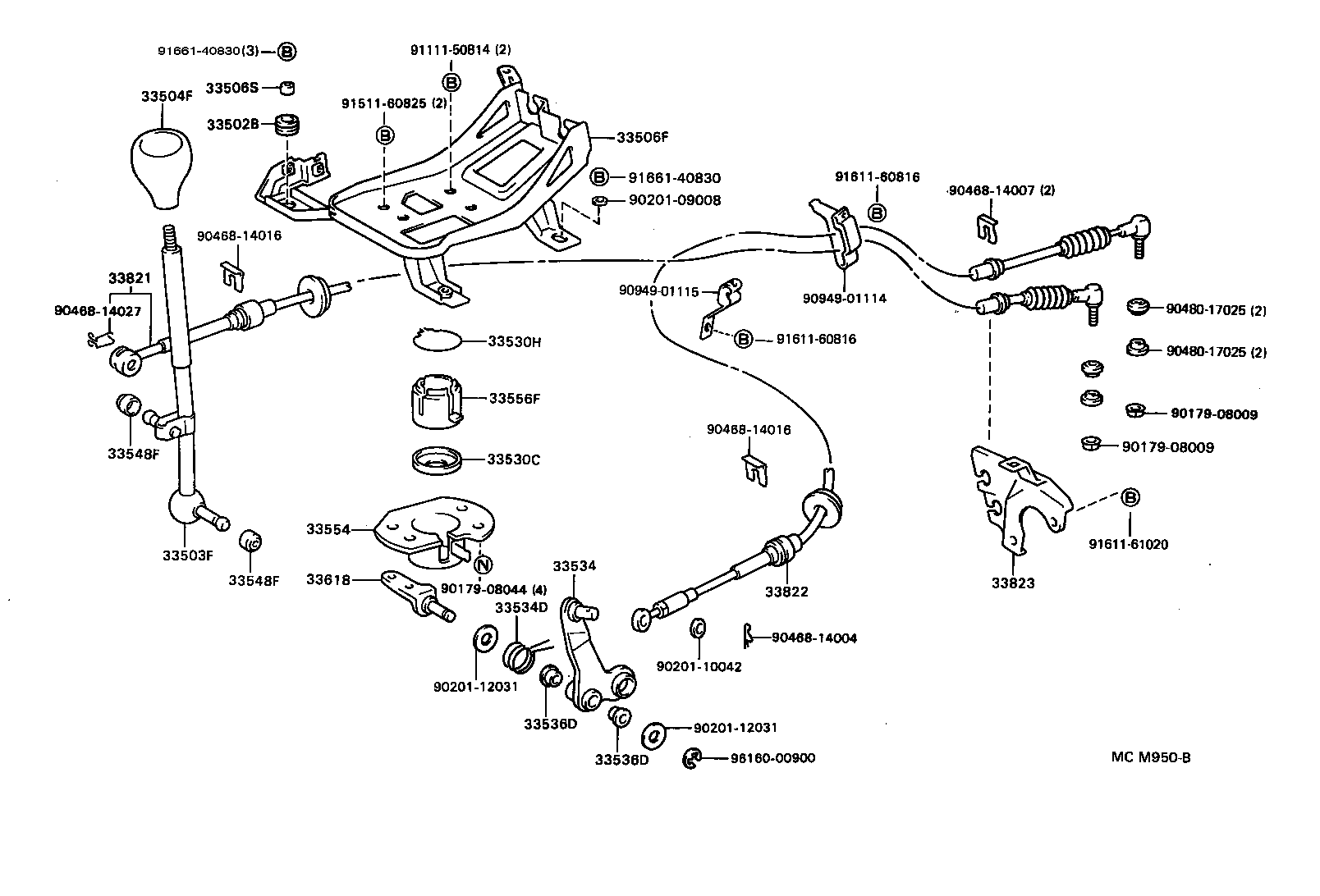

Click highlighted areas on diagram

diagram 33502B 33503F 33504F 33506F 33506S 33530C 33530H 33534 33534D 33536D 33536D 33548F 33548F 33554 33556F 33618 33821 33822 33823 9017908009 9017908009 9017908044 9020109008 9020110042 9020112031 9020112031 9046814004 9046814007 9046814016 9046814016 9046814027 9048017025 9048017025 9094901114 9094901115 9111150814 9151160825 9161160816 9161160816 9161161020 9166140830 9166140830 9616000900
Part # Description Qty Price
33502B - GROMMET (FOR SHIFT LEVER PLATE)
90480-13012

CR2#,KR2#,YR2#

 4
33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33055-28010

CR2#,KR2#,YR2#..LHD

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2401048

CR27,KR27,YR29

URETHANE,GRAY,TRIM1#

 1
33504-14070B1

CR27,KR27,YR29

GRAY,TRIM1#

 1
33504-35030B1

CR27,YR29

URETHANE,BLUISH GRAY,TRIM1#

 1
33504-35030B1

CR27,KR27,YR29

URETHANE,BLUISH GRAY,TRIM1#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-28140

CR2#,KR2#,YR2#..LHD

 1
33506S - COLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)
90387-09011

CR2#,KR2#,YR2#

 4
33530C - BUSH (FOR SHIFT LEVER)
90385-24001

CR2#,KR2#,YR2#

 1
33530H - RING, SNAP (FOR SHIFT LEVER)
90520-36018

CR2#,KR2#,YR2#

 1
90520-34002

CR2#,KR2#,YR2#

 1
33534 - BELLCRANK, SELECTING
33534-28050

CR2#,KR2#,YR2#

 1
33534D - SPRING, TORSION (FOR SELECTING BELLCRANK NO.1)
90508-28001

CR2#,KR2#,YR2#

 1
33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
90386-12034

CR2#,KR2#,YR2#

 2
90386-12013

CR2#,KR2#,YR2#

 2
33536D - BUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)
90386-12034

CR2#,KR2#,YR2#

 2
90386-12013

CR2#,KR2#,YR2#

 2
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

CR2#,KR2#,YR2#

 2
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-12021

CR2#,KR2#,YR2#

 2
33554 - CAP, SHIFT LEVER
33554-28060

CR2#,KR2#,YR2#

 1
33556F - SEAT, TRANSMISSION SHIFT LEVER BALL
33556-20020

CR2#,KR2#,YR2#

 1
33618 - SUPPORT, SELECTING BELLCRANK, NO.1
33618-28030

CR2#,KR2#,YR2#

 1
33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)
33821-28061

CR2#,YR2#

 1
33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)
33822-28061

CR2#,YR2#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-28032

CR2#

 1
Common parts
90179-08009
90179-08044
90201-09008
90201-10042
90201-12031
90468-14004
90468-14007
90468-14016
90468-14027
90480-17025
90949-01114
90949-01115
91111-50814
91511-60825
91611-60816
91611-61020
91661-40830
96160-00900
