CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9201- )LHD

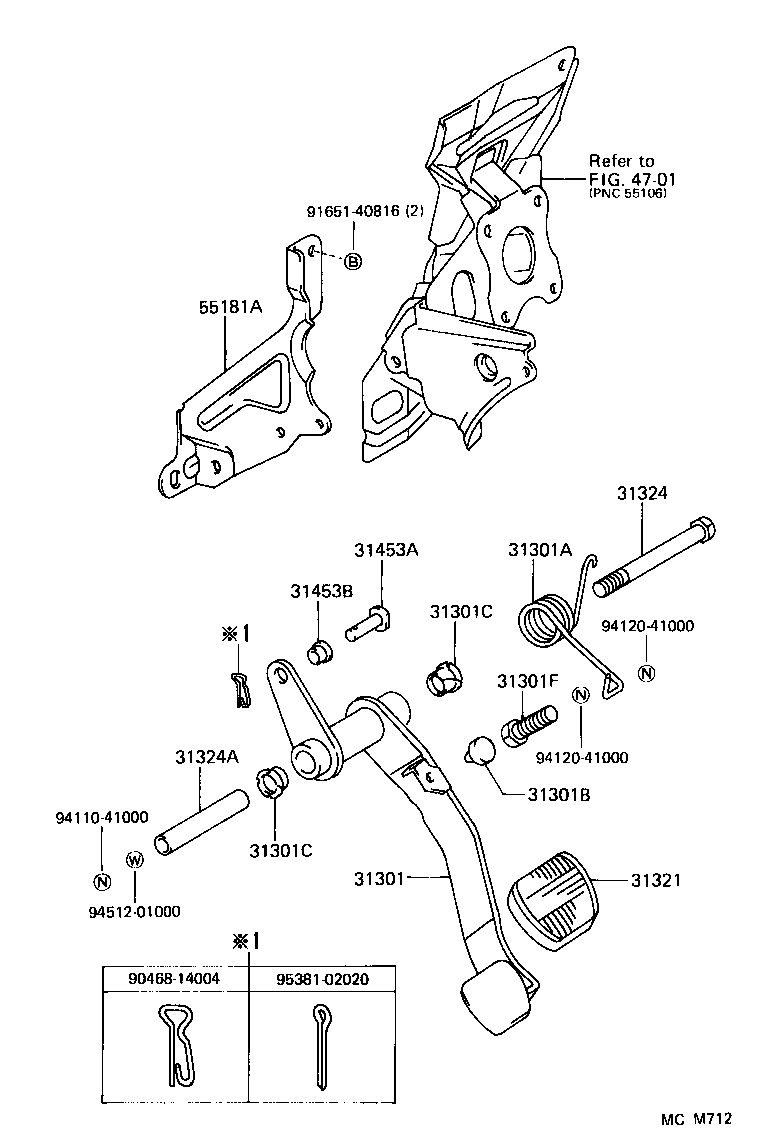

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 4701 55181A 9046814004 9165140816 9411041000 9412041000 9412041000 9451201000 9538102020
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-28080

CR2#,KR2#,YR2#..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35021

CR2#,KR2#,YR2#..LHD

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

CR2#,KR2#,YR2#..LHD

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CR2#,KR2#,YR2#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CR2#,KR2#,YR2#

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10085

CR2#,KR2#,YR2#

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

CR2#,KR2#,YR2#

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10043

CR2#,KR2#,YR2#..LHD

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10002

CR2#,KR2#,YR2#..LHD

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

CR2#,KR2#,YR2#

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

CR2#,KR2#,YR2#

 1
55181A - SUPPORT, CLUTCH PEDAL
55181-28030

CR2#,KR2#,YR2#..LHD

 1
Common parts
90468-14004
91651-40816
94110-41000
94120-41000
94512-01000
95381-02020
Linked diagrams
4701

ILLUST NO. 2 OF 2(9201- )CR2#,KR2#..LHD

Click highlighted areas on diagram

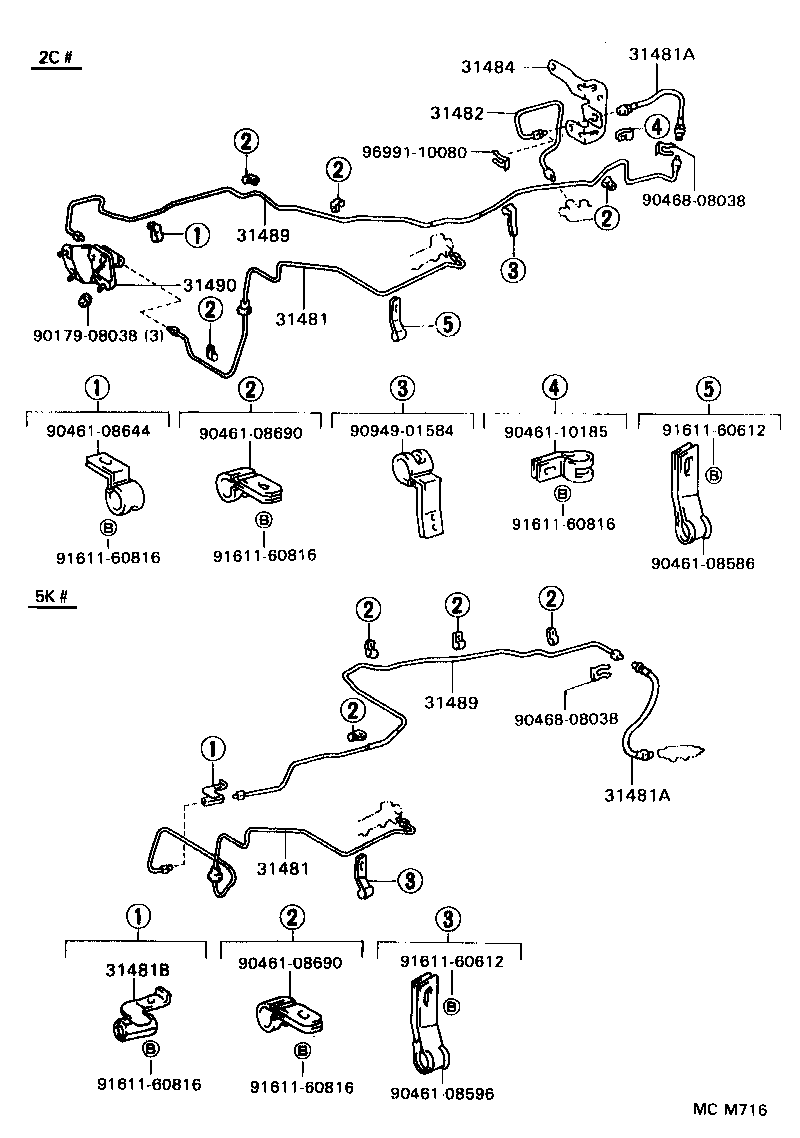

diagram 31481 31481 31481A 31481A 31481B 31482 31484 31489 31489 31490 9017908038 9046108586 9046108596 9046108644 9046108690 9046108690 9046110185 9046808038 9046808038 9094901584 9161160612 9161160612 9161160816 9161160816 9161160816 9161160816 9161160816 9699110080
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-28191

CR2#..LHD

 1
31481-28190

CR2#..LHD

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-28191

CR2#..LHD

 1
31481-28190

CR2#..LHD

 1
31481A - HOSE, CLUTCH, NO.1
90931-01088

CR2#

 1
31481A - HOSE, CLUTCH, NO.1
90931-01088

CR2#

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-28110

CR2#

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-28080

CR2#

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-28220

CR2#

 1
31489-28221

CR2#

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-28220

CR2#

 1
31489-28221

CR2#

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-28070

CR2#

 1
31490-28080

CR2#

 1
Common parts
90179-08038
90461-08586
90461-08596
90461-08644
90461-08690
90461-10185
90468-08038
90949-01584
91611-60612
91611-60816
96991-10080
