CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )2C

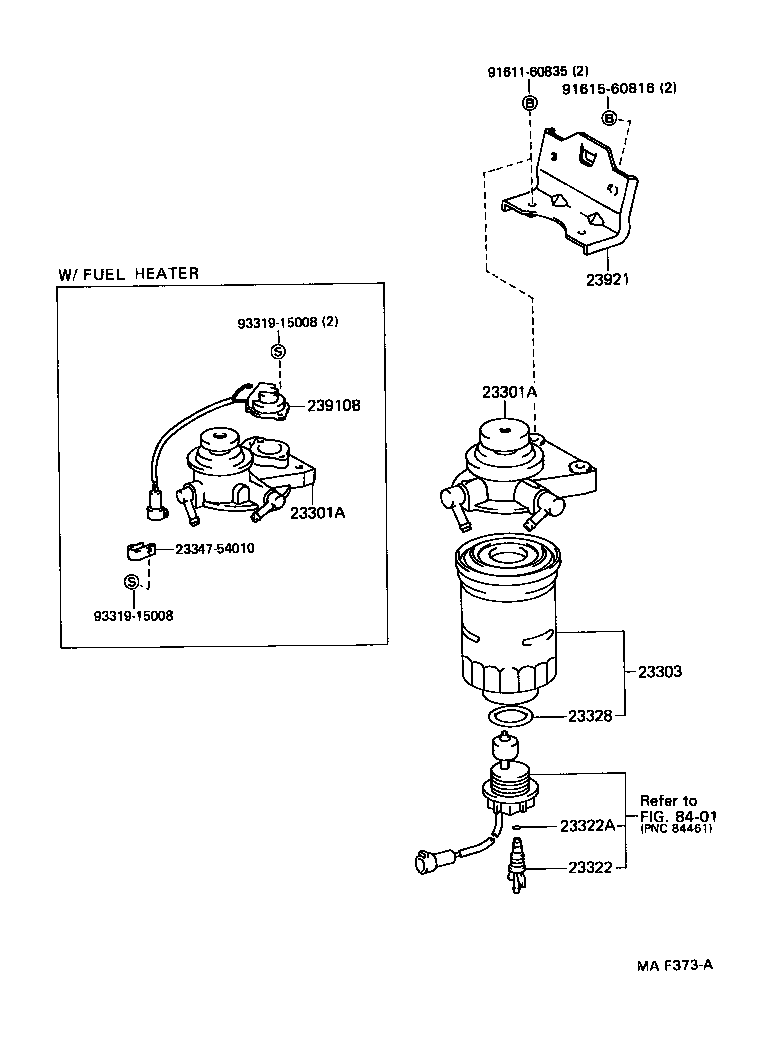

Click highlighted areas on diagram

diagram 23301A 23301A 23303 23322 23322A 23328 2334754010 23910B 23921 8401 9161160835 9161560816 9331915008 9331915008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23301-64240

2C..CR2#

W(FUEL HEATER)

 1
23301-64070

2C..CR2#

 1
23301A - CAP ASSY, FUEL FILTER
23301-64240

2C..CR2#

W(FUEL HEATER)

 1
23301-64070

2C..CR2#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010

2C..CR2#

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010

2C..CR2#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

2C..CR2#

 1
23328 - GASKET(FOR FUEL FILTER)
23344-64010

2C..CR2#

 1
23910B - HEATER ASSY, FUEL
23910-54050

2C..CR2#

 1
23921 - SUPPORT, FUEL FILTER
23921-64110

2C..CR2#

 1
Common parts
23347-54010
91611-60835
91615-60816
93319-15008
Linked diagrams
8401
