CR27LV-MRSBEW (1992)
Toyota Liteace Van Wagon
Production
Jan 1992
-
Jan 1995
Engine
2C
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9201- )2C

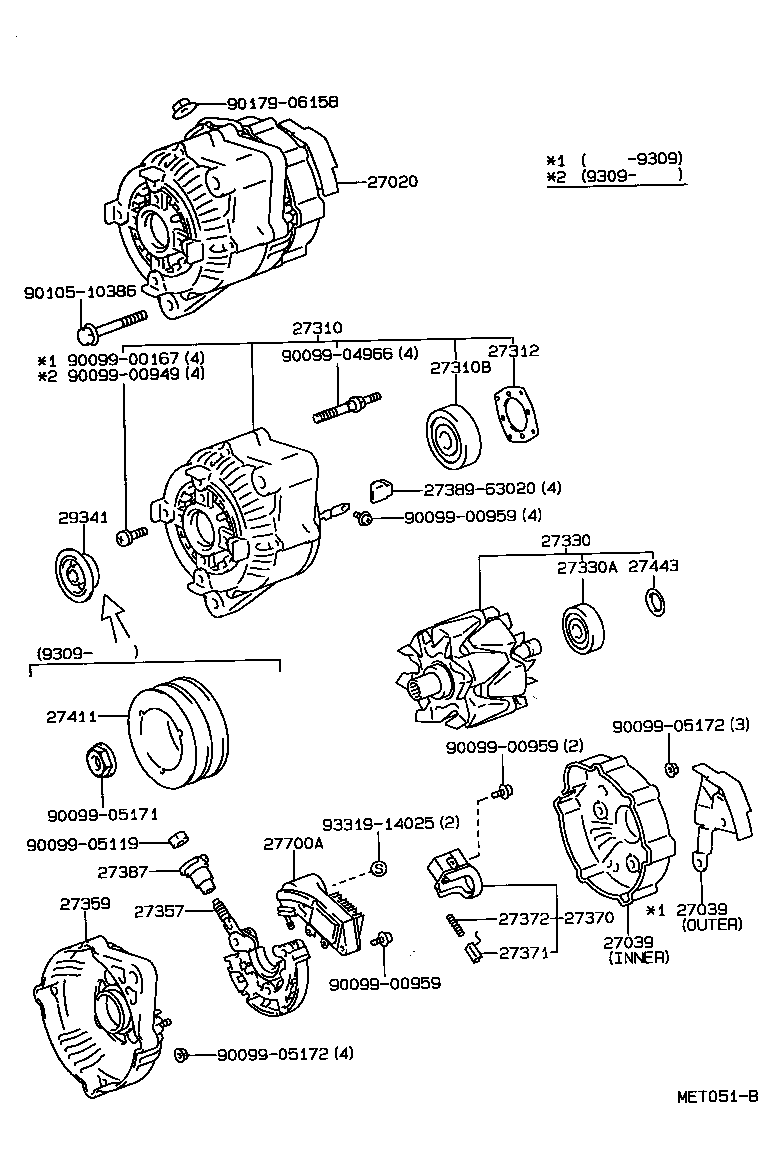

Click highlighted areas on diagram
12V 55A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-64140 |
2C..CR2# 12V 55A |
1 | ||
| 27060-64030 |
2C..CR2# 12V 55A |
1 | ||
| 27060-64210 |
2C..CR2# 12V 55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15170 |
2C..CR2# |
1 | ||
| 27039-64190 |
2C..CR2# OUTER |
1 | ||
| 27039-15170 |
2C..CR2# INNER |
1 | ||
| 27039-73020 |
2C..CR2# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-15170 |
2C..CR2# |
1 | ||
| 27039-64190 |
2C..CR2# OUTER |
1 | ||
| 27039-15170 |
2C..CR2# INNER |
1 | ||
| 27039-73020 |
2C..CR2# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64230 |
2C..CR2# |
1 | ||
| 27310-64460 |
2C..CR2# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10165 |
2C..CR2# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-64130 |
2C..CR2# |
1 | ||
| 27312-70200 |
2C..CR2# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64130 |
2C..CR2# |
1 | ||
| 27330-72101 |
2C..CR2# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2C,4YEC..CR2#,YR2# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63060 |
2C..CR2# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64130 |
2C..CR2# |
1 | ||
| 27359-64460 |
2C..CR2# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54450 |
2C..CR2# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
2C..CR2# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2C..CR2# |
2 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
2C..CR2# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64460 |
2C..CR2# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2C,4YEC..CR2#,YR2# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-54050 |
2C..CR2# |
1 | ||
| 27700-65010 |
2C..CR2# |
1 | ||
| 27700-11030 |
2C..CR2# |
1 | ||
| 29341 - SEAL, ALTERNATOR OIL | ||||
| 29341-64130 |
2C..CR2# |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00167 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10386 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
