CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

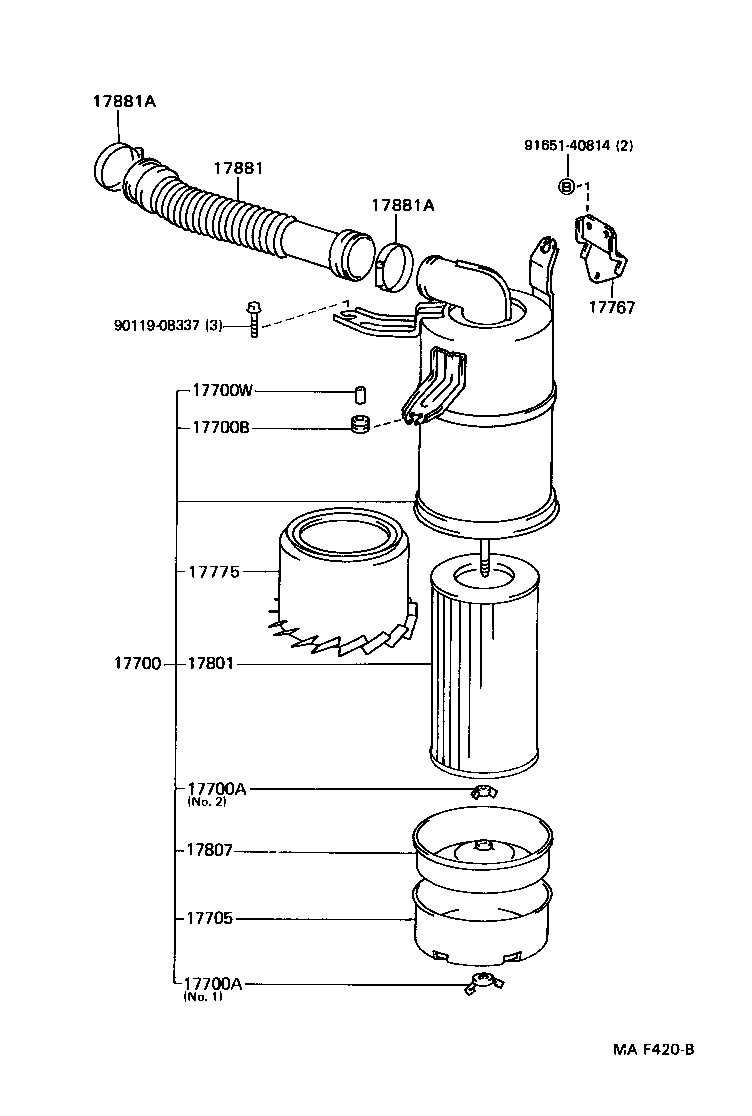

ILLUST NO. 1 OF 2(9201- )2C

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17700W 17705 17767 17775 17801 17807 17881 17881A 17881A 9011908337 9165140814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-64090

2C..CR2#

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2C..CR2#

NO.1

 1
94271-00800

2C..CR2#

NO.2

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06003

2C..CR2#

NO.1

 1
94271-00800

2C..CR2#

NO.2

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90480-12010

2C..CR2#

 3
17700W - SPACER(FOR AIR CLEANER)
90560-08038

2C..CR2#

 3
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64070

2C..CR2#

 1
17767 - BRACKET, AIR CLEANER
17771-28010

2C..CR2#

 1
17775 - WING, CYCLONE
17775-64010

2C..CR2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-64030

2C..CR2#

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17703-64010

2C..CR2#

 1
17881 - HOSE, AIR CLEANER, NO.1
17880-64240

2C..CR2#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-77003

2C..CR2#

AIR CLEANER SIDE

 1
90460-73003

2C..CR2#

MANIFOLD SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-77003

2C..CR2#

AIR CLEANER SIDE

 1
90460-73003

2C..CR2#

MANIFOLD SIDE

 1
Common parts
90119-08337
91651-40814

ILLUST NO. 2 OF 2(9201- )2C

Click highlighted areas on diagram

diagram 17911 17911 17911A 17912 17912 17912B 17912B 17912B 17912B 17913 17913 17913 17913F 17913F 17913F 4475328020 52850 53199B 53208B 9011908337 9011908337 9011908337 9011908337 9011908337 9011908337 9011908337 9011908337 9011908710 9011908710 9011908710 9011908710 9011908710 9011908710 9011908710 9046065010 9046065010 9161160814 9162140820 9162140820 9162140820 9163260820 9163260820 9163260820 9165140816 9165140816 9165140816 9611110650 9611110650 9611110670 9611110670 9611110690 9611110690 9611110800
Part # Description Qty Price
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-87007

2C..CR2#

 1
52810-87007

2C..CR2#

 1
52810-87007

2C..CR2#

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-87007

2C..CR2#

 1
52810-87007

2C..CR2#

 1
52810-87007

2C..CR2#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-87007

2C..CR2#

 1
52820-87007

2C..CR2#

 1
52820-87007

2C..CR2#

 1
17912 - DUCT, COOL AIR INTAKE, NO.2
52820-87007

2C..CR2#

 1
52820-87007

2C..CR2#

 1
52820-87007

2C..CR2#

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
17912B - BRACKET, COOL AIR INTAKE DUCT, NO.2
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52805-87002

2C..CR2#

NO.1

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
52852-87003

2C..CR2#

NO.2

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52815-87001

2C..CR2#

 1
52815-87001

2C..CR2#

 1
52815-87001

2C..CR2#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52815-87001

2C..CR2#

 1
52815-87001

2C..CR2#

 1
52815-87001

2C..CR2#

 1
17913 - DUCT, COOL AIR INTAKE, NO.3
52815-87001

2C..CR2#

 1
52815-87001

2C..CR2#

 1
52815-87001

2C..CR2#

 1
17913F - FLANGE, COOL AIR INTAKE DUCT, NO.3
52809-87001

2C..CR2#

 1
52809-87001

2C..CR2#

 1
52809-87001

2C..CR2#

 1
52809-28020

2C..CR2#

 1
52809-28020

2C..CR2#

 1
52809-28020

2C..CR2#

 1
17913F - FLANGE, COOL AIR INTAKE DUCT, NO.3
52809-87001

2C..CR2#

 1
52809-87001

2C..CR2#

 1
52809-87001

2C..CR2#

 1
52809-28020

2C..CR2#

 1
52809-28020

2C..CR2#

 1
52809-28020

2C..CR2#

 1
17913F - FLANGE, COOL AIR INTAKE DUCT, NO.3
52809-87001

2C..CR2#

 1
52809-87001

2C..CR2#

 1
52809-87001

2C..CR2#

 1
52809-28020

2C..CR2#

 1
52809-28020

2C..CR2#

 1
52809-28020

2C..CR2#

 1
52850 - CHAMBER ASSY, COOL AIR INTAKE
52850-28010

CR2#

 1
52850-28010

CR2#

 1
52850-28010

CR2#

 1
53199B - DUCT SUB-ASSY, COOL AIR INTAKE
53207-28010

CR2#

 1
53207-28010

CR2#

 1
53207-28010

CR2#

 1
53208B - DUCT SUB-ASSY, COOL AIR INTAKE, NO.2
53208-28010

CR2#

 1
53208-28010

CR2#

 1
53208-28010

CR2#

 1
Common parts
44753-28020
90119-08337
90119-08710
90460-65010
91611-60814
91621-40820
91632-60820
91651-40816
96111-10650
96111-10670
96111-10690
96111-10800
