CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )

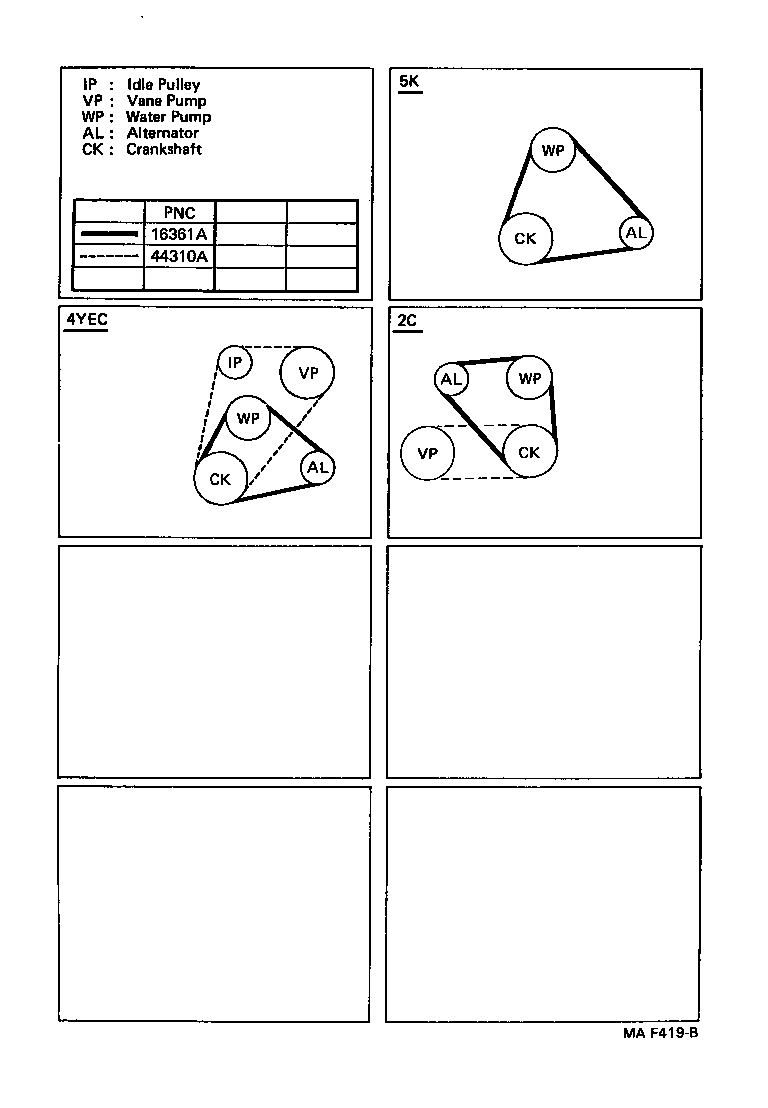

Click highlighted areas on diagram

diagram 16361A 44310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02315

2C..CR2#

 1
90916-02398

2C..CR2#

 1
90916-02381

2C..CR2#

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02363

CR2#

L=765

 1
90916-02399

CR2#

 1
