CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )2C

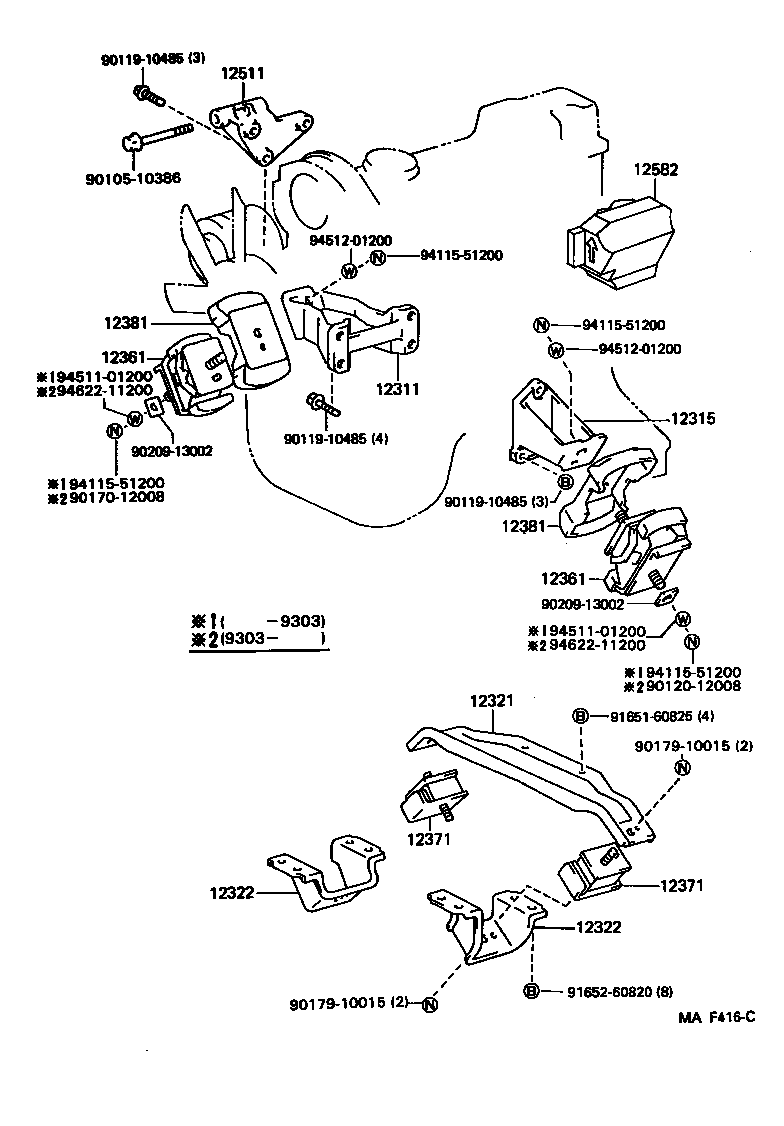

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12322 12361 12361 12371 12371 12381 12381 12511 12582 9010510386 9011910485 9011910485 9011910485 9012012008 9017012008 9017910015 9017910015 9020913002 9020913002 9165160825 9165260820 9411551200 9411551200 9411551200 9411551200 9451101200 9451101200 9451201200 9451201200 9462211200 9462211200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64060

2C..CR2#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64020

2C..CR2#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-64010

2C..CR2#

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-13010

2C..CR2#

LH

 1
12322-13030

2C..CR2#

RH

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12326-13010

2C..CR2#

LH

 1
12322-13030

2C..CR2#

RH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64022

2C..CR2#

 2
12361-64023

2C..CR2#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64022

2C..CR2#

 2
12361-64023

2C..CR2#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13051

2C..CR2#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13051

2C..CR2#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

2C..CR2#

 2
12381-64011

2C..CR2#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64010

2C..CR2#

 2
12381-64011

2C..CR2#

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-64030

2C..CR2#

 1
12511-64080

2C..CR2#

 1
12582 - INSULATOR, CYLINDER BLOCK, NO.2
12582-64020

2C..CR2#

 1
Common parts
90105-10386
90119-10485
90120-12008
90170-12008
90179-10015
90209-13002
91651-60825
91652-60820
94115-51200
94511-01200
94512-01200
94622-11200
