CR27LV-MRSBEW (1992)

Toyota Liteace Van Wagon

Production Jan 1992 - Jan 1995
Engine 2C
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9201- )2C

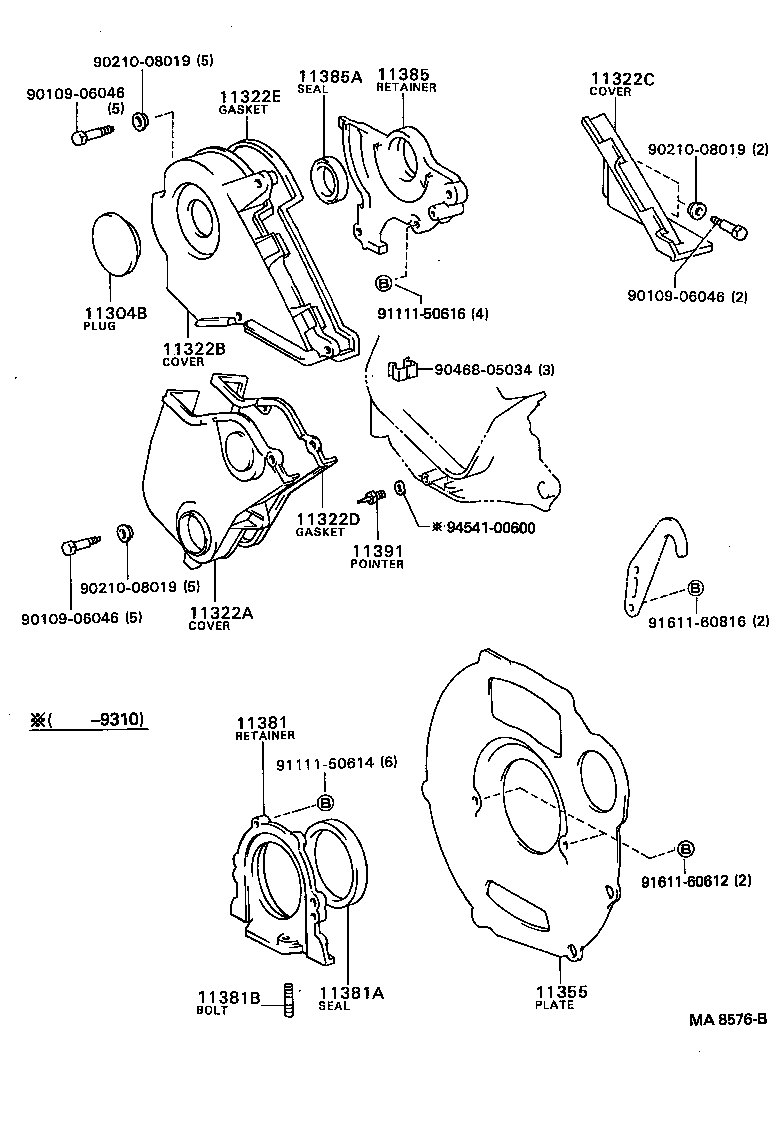

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322E 11355 11381 11381A 11381B 11385 11385A 11391 9010906046 9010906046 9010906046 9021008019 9021008019 9021008019 9046805034 9111150614 9111150616 9161160612 9161160816 9454100600
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01357

2C..CR2#

OD=64

 1
11322A - COVER, TIMING BELT, NO.1
11321-64010

2C..CR2#

 1
11322B - COVER, TIMING BELT, NO.2
11322-64010

2C..CR2#

 1
11322C - COVER, TIMING BELT, NO.3
11323-64011

2C..CR2#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-64020

2C..CR2#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-64020

2C..CR2#

 1
11355 - PLATE, REAR END
11305-64030

2C..CR2#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-64012

2C..CR2#

 1
11381A - SEAL, ENGINE REAR OIL
90311-90005

2C..CR2#

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06134

2C..CR2#

 2
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-64011

2C..CR2#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38044

2C..CR2#

 1
11391 - POINTER, TIMING
11391-64020

2C..CR2#

 1
Common parts
90109-06046
90210-08019
90468-05034
91111-50614
91111-50616
91611-60612
91611-60816
94541-00600
