KM36RV-MRSBEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM36,KM36

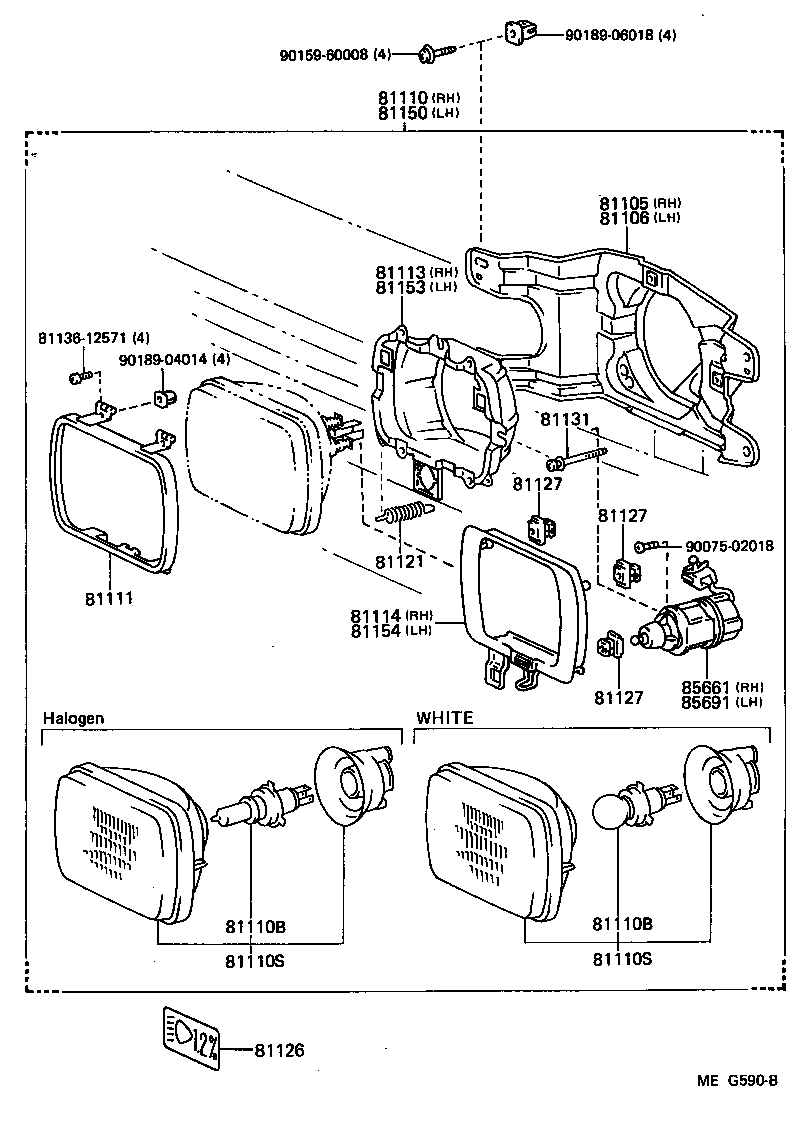

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110B 81110S 81110S 81111 81113 81114 81121 81126 81127 81127 81127 81131 8113612571 81150 81153 81154 85661 85691 9007502018 9015960008 9018904014 9018906018
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-95728

CM36,KM36

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-95728

CM36,KM36

 1
81110 - HEADLAMP ASSY, RH
81110-95731

CM36,KM36..RHD

 1
81110-95739

CM36,KM36..RHD

HALOGEN WHITE

 1
81110-95751

CM36,KM36..RHD

HALOGEN WHITE

 1
81110-95755

CM36,KM36..RHD

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

CM3#,KM3#

12V 45/40W,WHITE

 2
90981-13015

KM36..V4D..02S

12V 60/55W,*HAL *WH

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13013

CM3#,KM3#

12V 45/40W,WHITE

 2
90981-13015

KM36..V4D..02S

12V 60/55W,*HAL *WH

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04011

KM36..RHD

12V 60/55W,*HWS

 2
90981-04005

CM36,KM36..RHD

12V 45/40W,*WSB

 2
81110S - SEALED BEAM UNIT, NO.1
90981-04011

KM36..RHD

12V 60/55W,*HWS

 2
90981-04005

CM36,KM36..RHD

12V 45/40W,*WSB

 2
81111 - RING, SEALED BEAM RETAINING
81111-16020

CM36,KM36

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-16220

CM36,KM36

 1
81121 - SPRING, HEADLAMP TENSION
81121-16020

CM36,KM36

 2
81126 - PLATE, HEADLAMP
81126-95J00

KM36..RHD

ENGLAND SPEC

 2
81131 - SCREW, HEADLAMP ADJUSTING
81131-10031

CM36,KM36

 4
81150 - HEADLAMP ASSY, LH
81150-95731

CM36,KM36..RHD

 1
81150-95739

CM36,KM36..RHD

HALOGEN WHITE

 1
81150-95751

CM36,KM36..RHD

HALOGEN WHITE

 1
81150-95755

CM36,KM36..RHD

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-16220

CM36,KM36

 1
Common parts
81136-12571
90075-02018
90159-60008
90189-04014
90189-06018
