KM36RV-MRSBEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K

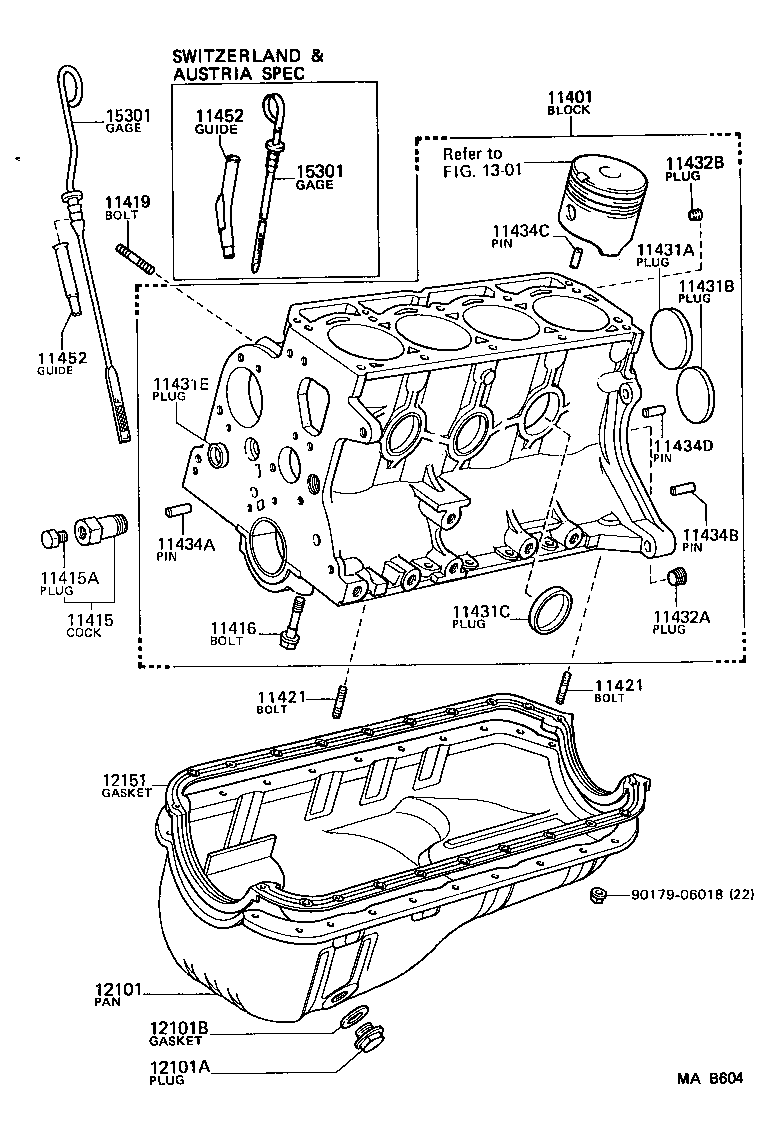

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11419 11421 11421 11431A 11431B 11431C 11431E 11432A 11432B 11434A 11434B 11434C 11434D 11452 11452 12101 12101A 12101B 12151 1301 15301 15301 9017906018
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19335

5K..KM3#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

5K..KM3#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

5K..KM3#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02019

5K..KM3#

 10
11419 - BOLT, STUD(FOR FUEL PUMP)
90116-08102

5K..KM3#

 2
11421 - BOLT, STUD(FOR OIL PAN)
90116-06006

5K..KM3#

 16
11421 - BOLT, STUD(FOR OIL PAN)
90116-06006

5K..KM3#

 16
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-47025

5K..KM3#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44500

5K..KM3#

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-43500

5K..KM3#

 3
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96412-01800

5K..KM3#

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90344-53011

5K..KM3#

 1
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90344-51014

5K..KM3#

 3
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

5K..KM3#

L=18,OD=8

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

5K..KM3#

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08120

5K..KM3#

L=18,OD=8

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

5K..KM3#

L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-24010

5K..KM3#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-24010

5K..KM3#

 1
12101 - PAN SUB-ASSY, OIL
12101-13070

5K..KM3#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

5K..KM3#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027

5K..KM3#

 1
90430-12019

5K..KM3#

 1
90430-12027

5K..KM3#

 1
12151 - GASKET, OIL PAN
12151-13011

5K..KM3#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-24010

5K..KM3#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-24010

5K..KM3#

 1
Common parts
90179-06018
Linked diagrams
1301
