KM36RV-KRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Jan 1987
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8510- )RHD

Click highlighted areas on diagram

diagram 04443 44608 44610 44618 44629 44642 44663 9017908038
Part # Description Qty Price
04443 - BOOSTER KIT, BRAKE
04443-27200

KM36..RHD

 1
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-12520

CM35,KM36..RHD

 1
44610 - BOOSTER ASSY, BRAKE
44610-27240

CM35,KM36..RHD

 1
44618 - SEAL, BOOSTER BODY
44621-28120

CM35,KM36..RHD

 1
44629 - RING, CIRCULAR INTERNAL
44628-28120

CM35,KM36..RHD

 1
44642 - PISTON, BRAKE BOOSTER
44642-12520

CM35,KM36..RHD

 1
44663 - KEY, VALVE STOPPER
44635-28120

CM35,KM36..RHD

 1
Common parts
90179-08038

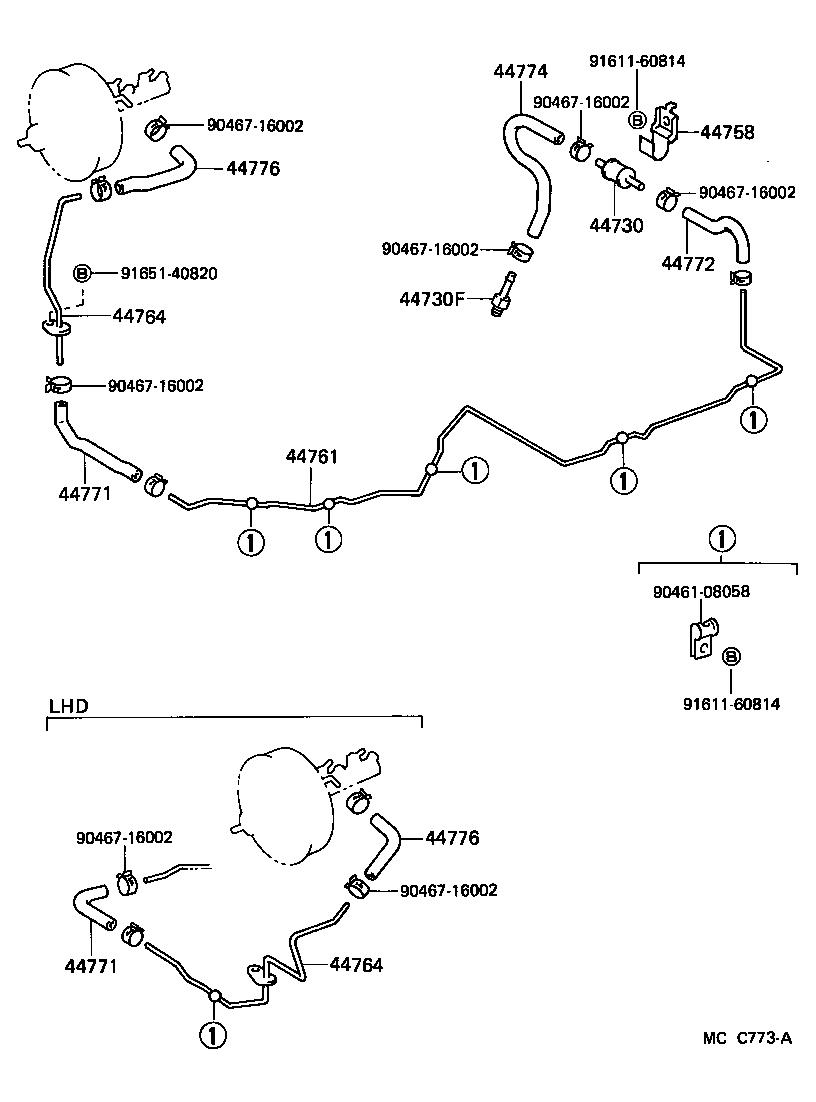

ILLUST NO. 2 OF 2(8510- )KM3#

Click highlighted areas on diagram

diagram 44730 44730F 44758 44761 44764 44764 44771 44771 44772 44774 44776 44776 9046108058 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160814 9161160814 9165140820
Part # Description Qty Price
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-24020

KM3#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51031

KM3#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-27070

KM3#

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-27110

KM36..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-27060

CM35,KM36..RHD

 1
44764 - TUBE, BOOSTER VACUUM
44764-27060

CM35,KM36..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27050

KM36..RHD

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-27050

KM36..RHD

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-27020

KM36..RHD

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-27080

KM36..RHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-27020

CM35,KM36..RHD

 1
44776 - HOSE, BRAKE BOOSTER
44776-27020

CM35,KM36..RHD

 1
Common parts
90461-08058
90467-16002
91611-60814
91651-40820
