KM36LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

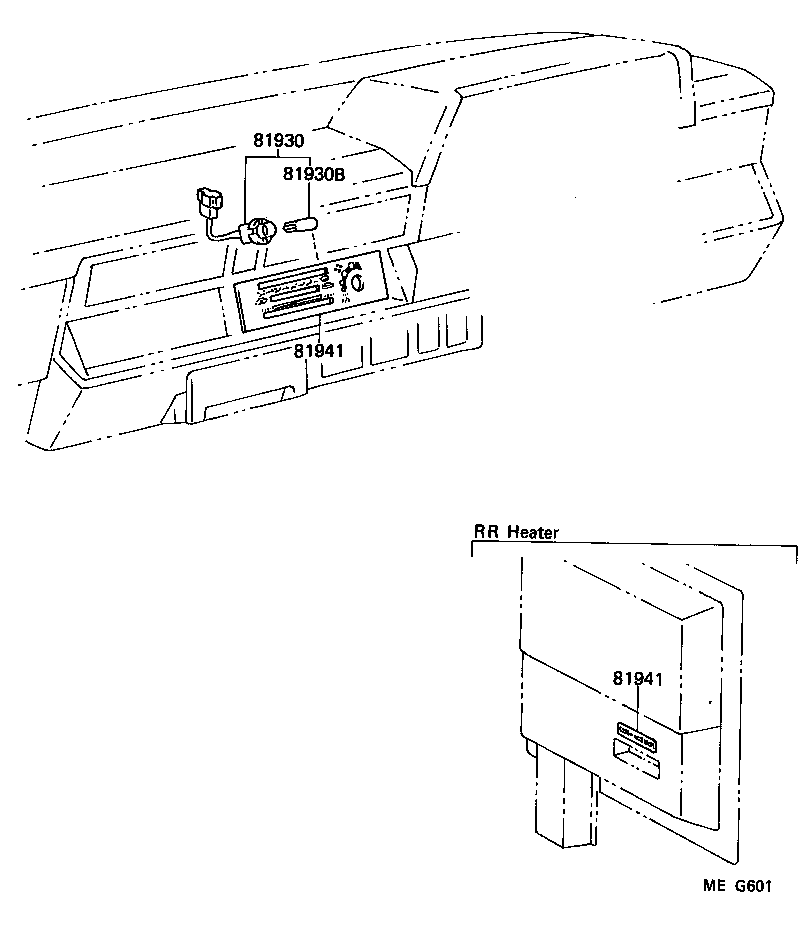

Click highlighted areas on diagram

diagram 81930 81930B 81941 81941
Part # Description Qty Price
81930 - LAMP ASSY, HEATER CONTROL INDICATOR, NO.1
81930-95700

CM35,KM3#

 1
81930B - BULB, HEATER CONTROL INDICATOR LAMP
84999-10170

CM35,KM3#

12V 1.12W,12V 1.4W

 1
81941 - PLATE, HEATER CONTROL NAME
55519-95716

CM35,KM3#

FR HEATER

 1
55519-95J05

CM35,KM3#..05S,08S

RR HEATER=TRIM BUILT-IN TYPE

 1
81941 - PLATE, HEATER CONTROL NAME
55519-95716

CM35,KM3#

FR HEATER

 1
55519-95J05

CM35,KM3#..05S,08S

RR HEATER=TRIM BUILT-IN TYPE

 1
