KM36LV-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

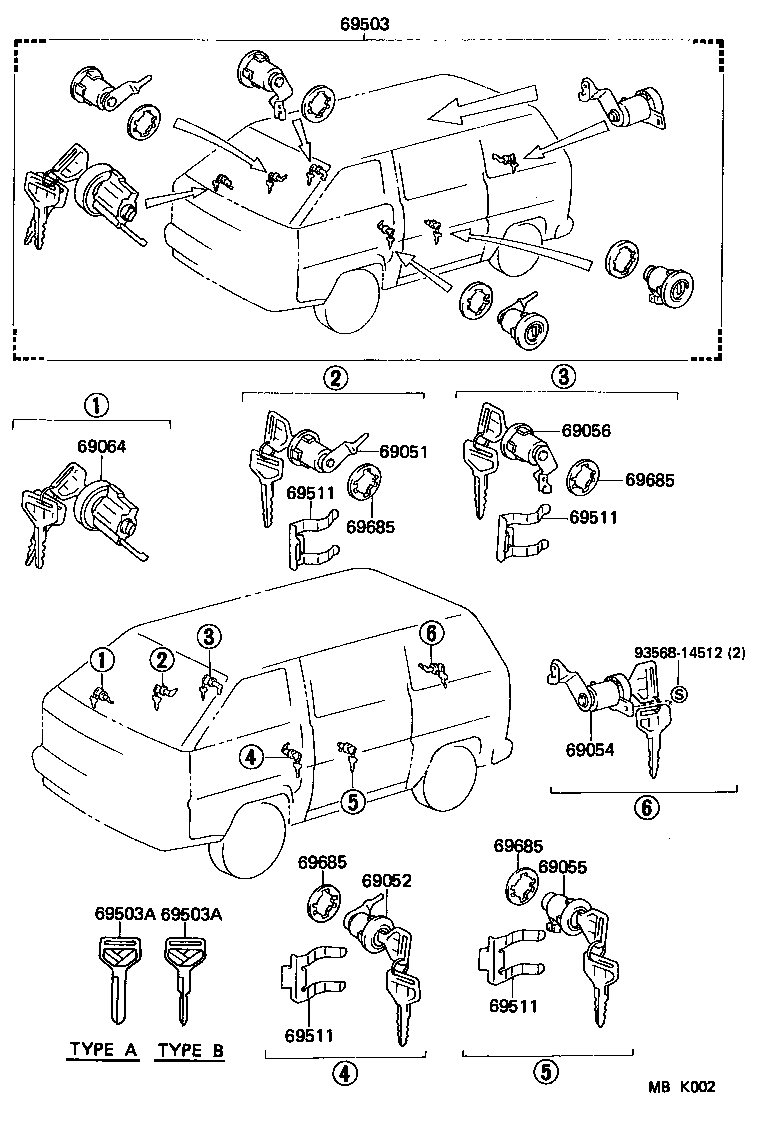

Click highlighted areas on diagram

diagram 69051 69052 69054 69055 69056 69064 69503 69503A 69503A 69511 69511 69511 69511 69685 69685 69685 69685 9356814512
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95705

CM35,KM3#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95705

CM35,KM3#

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95711

CM35,KM3#

 1
69056 - CYLINDER & KEY SET, REAR DOOR LOCK, RH
69053-95707

CM35,KM3#..LHD

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-89109

CM35,KM3#..4F,5F

 1
69057-95719

CM35,KM3#..4F,5F

 1
69057-95713

CM35,KM3#..4F,5F

 1
69503 - CYLINDER SET, LOCK
69503-95775

CM35,KM3#..LHD..MRF..(4F,5F)

 1
69503-95749

CM35,KM3#..LHD..MRF..(4F,5F)

 1
69503-95762

CM35,KM3#..LHD..MRF..(4F,5F)

 1
69503A - KEY, BLANK
90999-00086

CM35,KM3#

MASTER KEY,TYPE A

 2
90999-00086

CM35,KM3#

MASTER KEY,TYPE A

 1
90999-00084

CM35,KM3#

MASTER KEY,W(*68),W/PROTECTOR

 1
90999-00091

CM35,KM3#

MASTER KEY,W(*70),TYPE B

 2
69503A - KEY, BLANK
90999-00086

CM35,KM3#

MASTER KEY,TYPE A

 2
90999-00086

CM35,KM3#

MASTER KEY,TYPE A

 1
90999-00084

CM35,KM3#

MASTER KEY,W(*68),W/PROTECTOR

 1
90999-00091

CM35,KM3#

MASTER KEY,W(*70),TYPE B

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM35,KM3#..MRF

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM35,KM3#..MRF

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM35,KM3#..MRF

 3
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM35,KM3#..MRF

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM35,KM3#..MRF

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM35,KM3#..MRF

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM35,KM3#..MRF

 3
69685 - PAD, LOCK CYLINDER
69513-32010

CM35,KM3#..MRF

 3
Common parts
93568-14512
