KM36LV-MRSW (1985)
Toyota Liteace Van,Wagon
ILLUST NO. 1 OF 2(8510- )KM31,36..05S ; (8510- )CM35..LHD..5F
TANDEM BOOSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-27300 |
KM36..4F..05S;KM3#..LHD..(4H,5F) TANDEM BOOSTER,JKC |
1 | ||
| 04443-27220 |
KM36..4F..05S;KM3#..LHD..(4H,5F) TANDEM BOOSTER,AISIN |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-17090 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER,JKC |
1 | ||
| 44608-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER,JKC |
1 | ||
| 44606-20800 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER,AISIN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-27260 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-14030 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44624D - RETAINER, BOOSTER SEAL | ||||
| 44626-60010 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-20800 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-20800 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-20800 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44666 - CASE, REACTION DISC | ||||
| 44657-27260 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(8510- )KM3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-24020 |
KM3# |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51031 |
KM3# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-27070 |
KM3# |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-27100 |
KM3#..LHD |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-27050 |
CM35,KM3#..LHD |
1 | ||
| 44764 - TUBE, BOOSTER VACUUM | ||||
| 44764-27050 |
CM35,KM3#..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-27040 |
KM3#..LHD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-27040 |
KM3#..LHD |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-27010 |
KM3#..LHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-27110 |
KM3#..LHD |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-27030 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-27030 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| Common parts | ||||
| 90461-08058 | ||||
| 90467-16002 | ||||
| 91611-60814 | ||||
| 91651-40820 | ||||

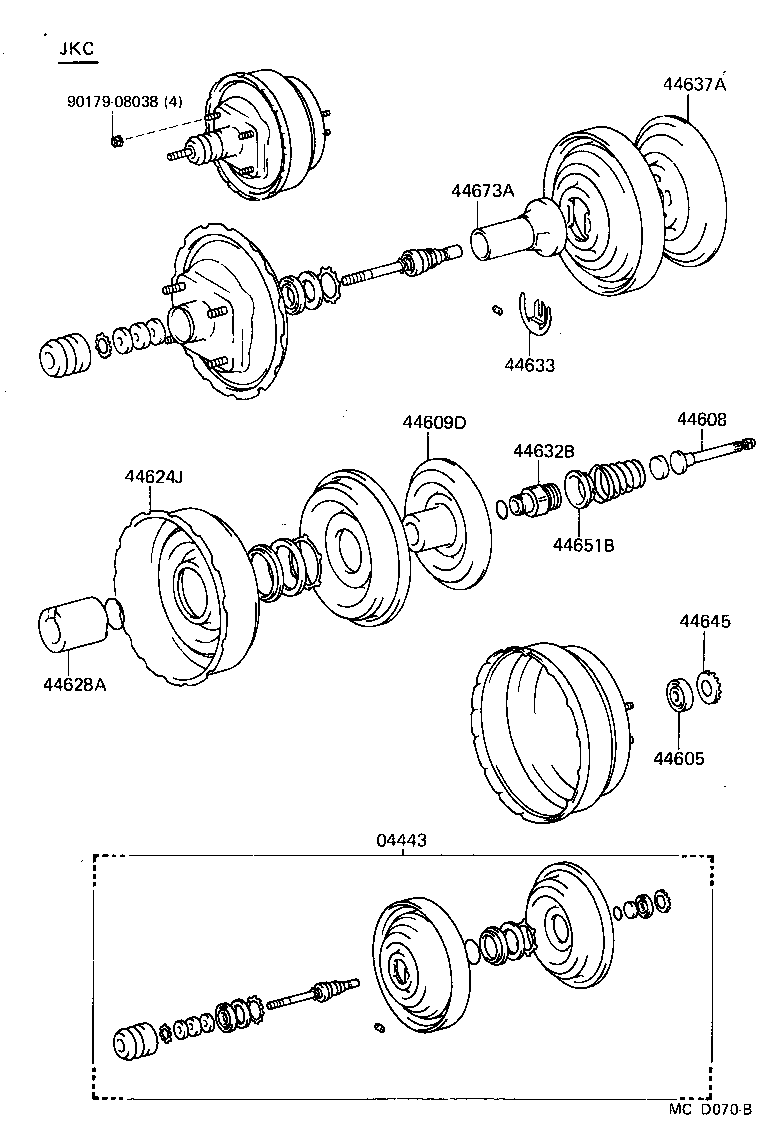

ILLUST NO. 1 OF 2(8510- )KM31,36..05S ; (8510- )CM35..LHD..5F
TANDEM BOOSTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-27300 |
KM36..4F..05S;KM3#..LHD..(4H,5F) TANDEM BOOSTER,JKC |
1 | ||
| 04443-27220 |
KM36..4F..05S;KM3#..LHD..(4H,5F) TANDEM BOOSTER,AISIN |
1 | ||
| 44605 - PLATE & SEAL SUB-ASSY, BOOSTER | ||||
| 44605-30350 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER,JKC |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44608-17090 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER,JKC |
1 | ||
| 44608-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER,JKC |
1 | ||
| 44606-20800 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER,AISIN |
1 | ||
| 44609D - PLATE & RETAINER SUB-ASSY, BOOSTER | ||||
| 44609-17090 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44609-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44624J - PLATE, BOOSTER CENTER | ||||
| 44624-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44628A - BODY, BOOSTER CENTER | ||||
| 44628-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44632B - HUB, BOOSTER REACTION DISK | ||||
| 44632-27290 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44633 - KEY, BOOSTER VALVE PLUNGER | ||||
| 44633-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44633-20811 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44637A - PLATE, BOOSTER DIAPHRAGM | ||||
| 44637-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44645 - RETAINER, BOOSTER PUSH ROD SEAL | ||||
| 44645-10080 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44651B - NUT, BOOSTER | ||||
| 44651-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| 44673A - BODY, BOOSTER VALVE | ||||
| 44673-20810 |
KM36..4F..05S;CM35,KM3#..LHD..(4H,5F) TANDEM BOOSTER |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
