KM36LV-MRSBFEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

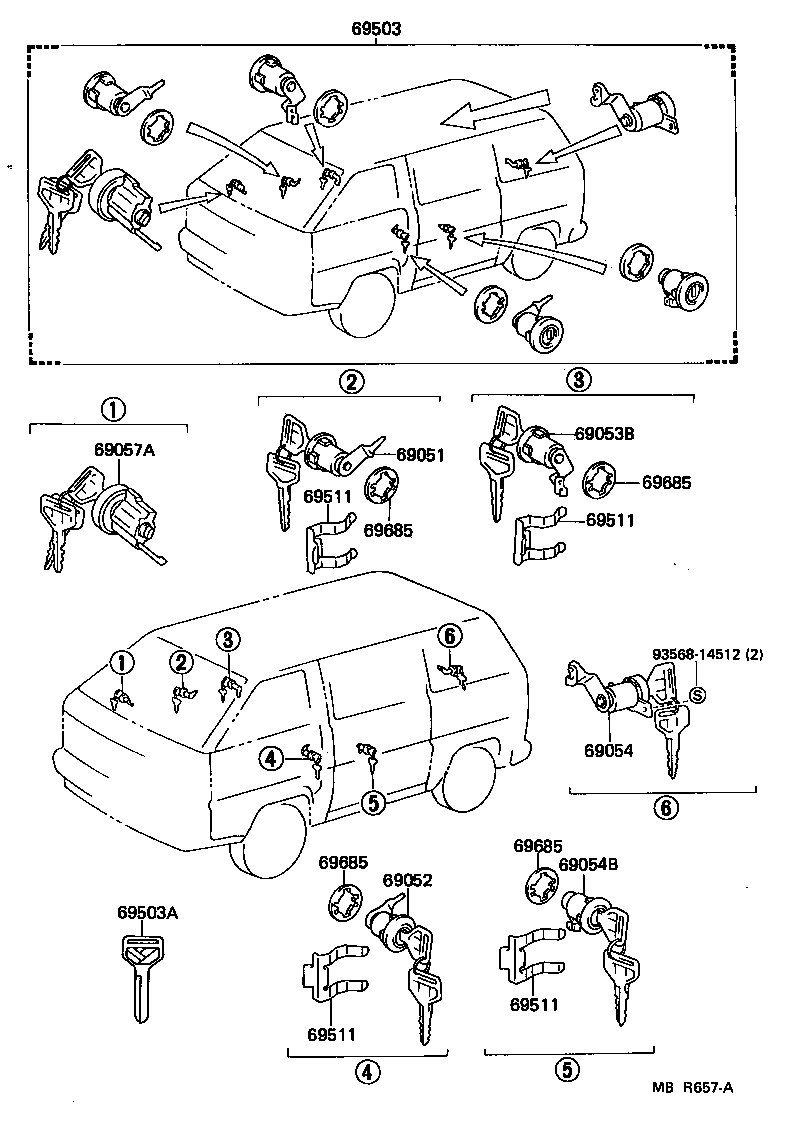

Click highlighted areas on diagram

diagram 69051 69052 69053B 69054 69054B 69057A 69503 69503A 69511 69511 69511 69511 69685 69685 69685 69685 9356814512
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95716

CM3#,KM3#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95716

CM3#,KM3#

 1
69053B - CYLINDER & KEY SET, SLIDE DOOR LOCK, RH
69053-95710

CM3#,KM3#..LHD

 1
69054 - CYLINDER & KEY SET, BACK DOOR LOCK
69055-95713

CM3#,KM3#

 1
69054B - CYLINDER & KEY SET, SLIDE DOOR LOCK, LH
69054-95710

CM36,KM36..RHD;CM36,KM36..V5D

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95719

CM3#,KM3#..4F,5F

 1
69503 - CYLINDER SET, LOCK
69503-95G04

CM36,KM36..V5D

 1
69503A - KEY, BLANK
90999-00086

CM3#,KM3#

MASTER KEY

 1
90999-00084

CM3#,KM3#

MASTER KEY,W(*68)

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM36..V5D

 4
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM36..V5D

 4
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM36..V5D

 4
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

CM36,KM36..V5D

 4
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM36..V5D

 4
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM36..V5D

 4
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM36..V5D

 4
69685 - PAD, LOCK CYLINDER
69513-32010

CM36,KM36..V5D

 4
Common parts
93568-14512
