KM36LV-MRSBFEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

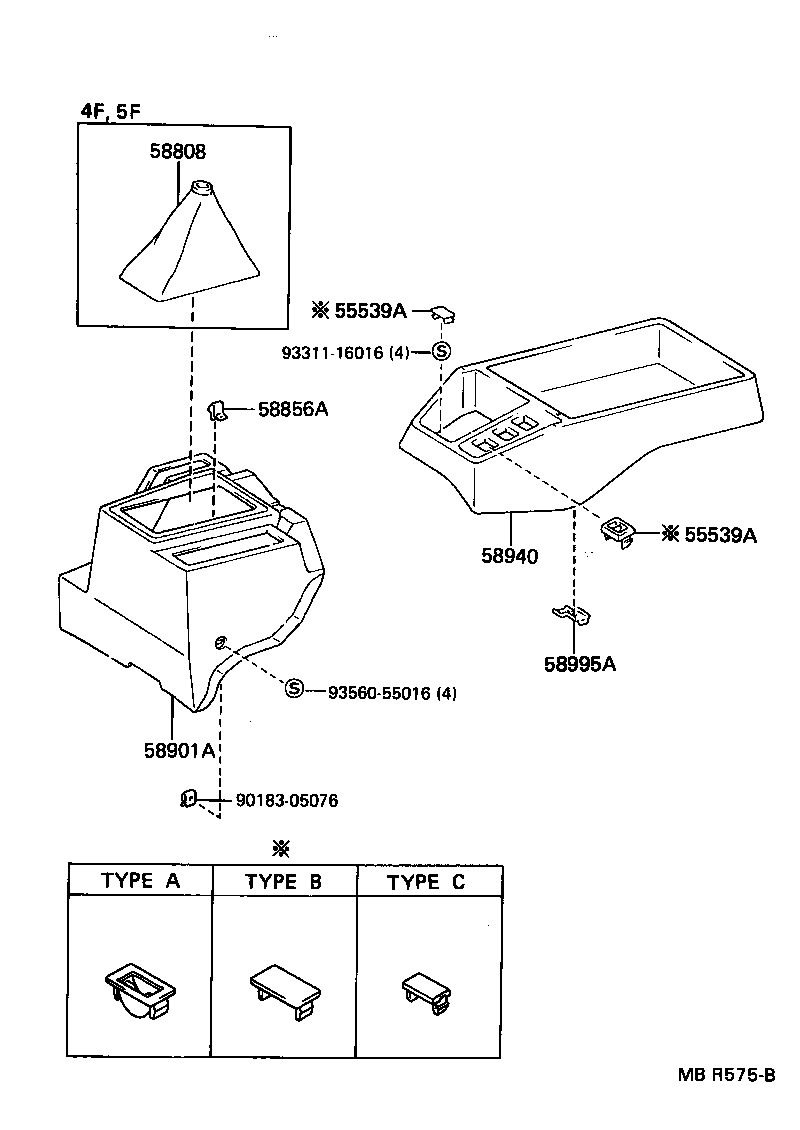

Click highlighted areas on diagram

diagram 55539A 55539A 58808 58856A 58901A 58940 58995A 9018305076 9331116016 9356055016
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2002003

CM3#,KM3#..4F,5F

SHADOW GRAY,TRIM1#,TYPE A

 1
74617-1601033

CM3#,KM3#..4F,5F

SHADOW GRAY,TRIM1#,TYPE C

 4
74617-1601023

CM3#,KM3#..4F,5F

GRAY,TRIM1#,TYPE C

 4
55539-2401013

CM3#,KM3#..4F,5F

GRAY,TRIM1#,TYPE B

 2
55539A - COVER, SPARE SWITCH HOLE
55539-2002003

CM3#,KM3#..4F,5F

SHADOW GRAY,TRIM1#,TYPE A

 1
74617-1601033

CM3#,KM3#..4F,5F

SHADOW GRAY,TRIM1#,TYPE C

 4
74617-1601023

CM3#,KM3#..4F,5F

GRAY,TRIM1#,TYPE C

 4
55539-2401013

CM3#,KM3#..4F,5F

GRAY,TRIM1#,TYPE B

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58840-9570113

CM3#,KM3#..4F,5F

GRAY,TRIM1#

 1
58856A - HOLDER, CONSOLE BOX
58856-95700

CM3#,KM3#..4F,5F

 2
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-9570903

CM36,KM36..LHD..(4F,5F)

GRAY,TRIM1#

 1
58940 - CONSOLE ASSY, REAR
58810-9570303

CM3#,KM3#..LHD..(4F,5F)

GRAY,TRIM1#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-95703

CM3#,KM3#..4F,5F

 1
Common parts
90183-05076
93311-16016
93560-55016
