Toyota Liteace van,wagon KM36 SEAT & SEAT TRACK

KM36LV-MRSBEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992

Engine 5K

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

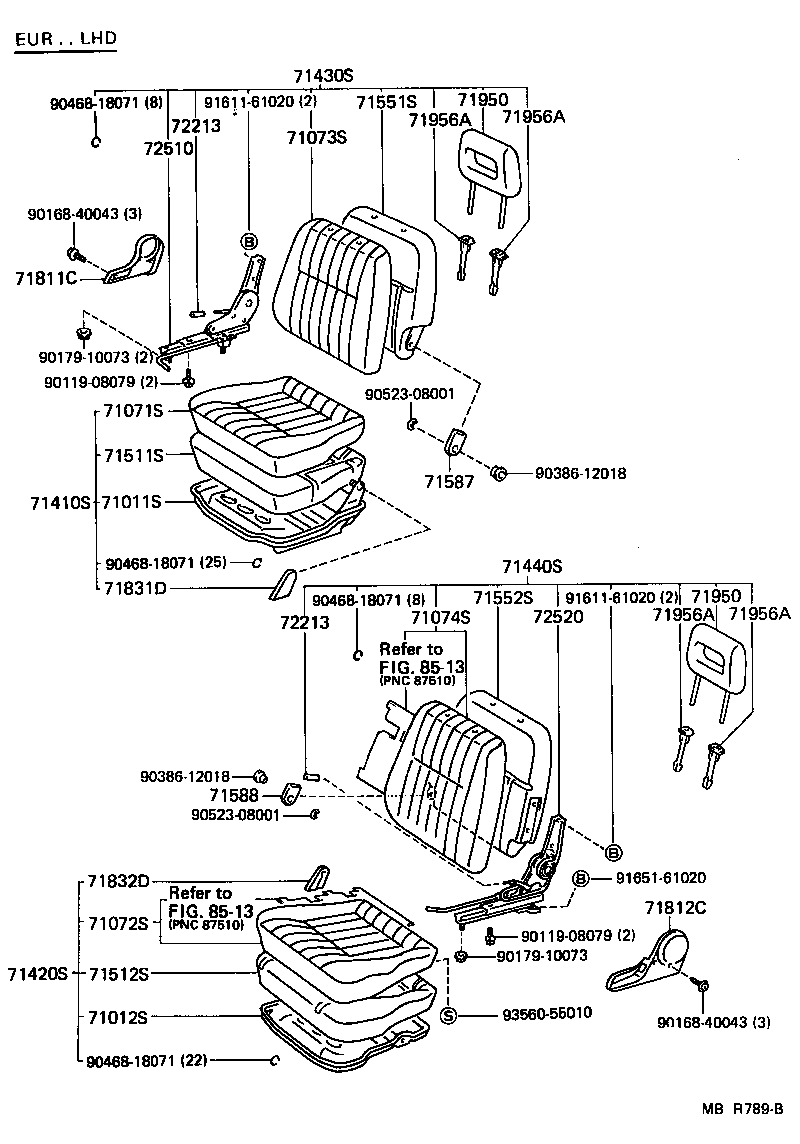

ILLUST NO. 1 OF 3(8808- )LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95706	CM3#,KM3#	08/1988 - 01/1992	1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95708	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC	08/1988 - 01/1992	1
71012-95709	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71012-95709	CM36,KM36..LHD..V4D..5F..02S AUSTRIA SPEC	08/1988 - 01/1992	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9572103	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71071-9572103	CM36,KM3#..LHD..STD W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71071-9574103	CM36,KM36..LHD..V4D..5F..02S AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71071-9574103	CM36,KM3#..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9575003	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71072-9576403	CM36,KM3#..LHD..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71072-9574703	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71072-9575003	CM36,KM3#..LHD..STD W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71072-9576403	CM36,KM36..LHD..V4D..5F..02S AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9574603	KM36..SRF;CM36,KM3#..LHD..V4D..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71073-9572103	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC OR AUSTRIA SPEC OR W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71073-9574703	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71073-9572403	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-9573103	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9574403	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9575303	KM36..SRF;CM36,KM3#..LHD..V4D..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9575503	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9574303	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9572703	CM36,KM36..LHD..V4D..5F..02S W(FABRIC SEAT & SEPARATE HEADREST) OR AUSTRIASPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-95G0303	CM36,KM3#..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71410-95G0303	CM36,KM36..LHD..V4D..5F..02S ***,AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71410-9577303	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71410-9577303	CM36,KM3#..LHD..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9574703	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71420-9576103	CM36,KM3#..LHD..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71420-9576103	CM36,KM36..LHD..V4D..5F..02S ***,AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71420-9574703	CM36,KM3#..LHD..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71420-9574403	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9573303	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71430-9573003	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC OR AUSTRIA SPEC OR W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71430-9575603	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71430-9575503	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9575303	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9573903	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9576303	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9575203	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9576503	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9573503	CM36,KM36..LHD..V4D..5F..02S ***,W(FABRIC SEAT & SEPARATE TYPE HEADREST) OR AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95701	CM3#,KM3#	08/1988 - 01/1992	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-95706	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC	08/1988 - 01/1992	1
71512-95705	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71512-95705	CM36,KM36..LHD..V4D..5F..02S AUSTREA SPEC	08/1988 - 01/1992	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-95703	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-95708	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC	08/1988 - 01/1992	1
71506-95706	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71506-95706	CM36,KM36..LHD..V4D..5F..02S AUSTREA SPEC	08/1988 - 01/1992	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71588-9570013	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-9570013	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71811C - COVER, RECLINING ADJUSTER, RH
71801-9570003	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71812C - COVER, RECLINING ADJUSTER, LH
71802-9570003	CM3#,KM3#..LHD GRAY,TRIM1#	08/1988 - 01/1992	1
71831D - COVER, FRONT SEAT HINGE, RH
71831-9570013	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-9570003	CM3#,KM3#..LHD GRAY,TRIM1#	08/1988 - 01/1992	1
71950 - HEADREST ASSY, FRONT SEAT
71910-9570803	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S GRAY,TRIM1#	08/1988 - 01/1992	2
71950 - HEADREST ASSY, FRONT SEAT
71910-9570803	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S GRAY,TRIM1#	08/1988 - 01/1992	2
71956A - SUPPORT, FRONT SEAT HEADREST
71990-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
71956-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W/O(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
71956A - SUPPORT, FRONT SEAT HEADREST
71990-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
71956-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W/O(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
71956A - SUPPORT, FRONT SEAT HEADREST
71990-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
71956-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W/O(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
71956A - SUPPORT, FRONT SEAT HEADREST
71990-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
71956-3002013	KM36..4H;CM36,KM36..LHD..V4D..(5F,5H)..02S W/O(LOCK),GRAY,TRIM1#	08/1988 - 01/1992	2
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-9570003	CM3#,KM3# GRAY,TRIM1#	09/1989 - 01/1992	1
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-9570003	CM3#,KM3# GRAY,TRIM1#	09/1989 - 01/1992	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-9570803	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-9570703	CM3#,KM3#..LHD GRAY,TRIM1#	08/1988 - 01/1992	1
Common parts
90119-08079
90168-40043
90179-10073
90386-12018
90468-18071
90523-08001
91611-61020
91651-61020
93560-55010
Linked diagrams
8513

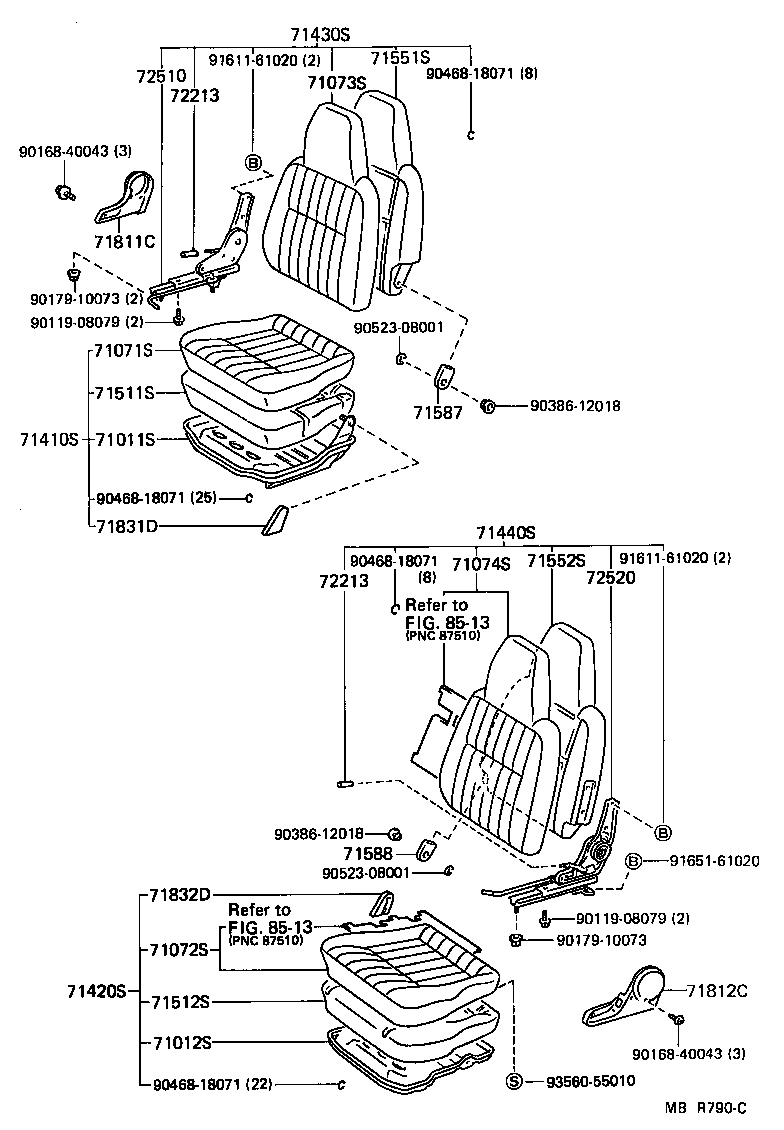

(8808- )LHD..STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95706	CM3#,KM3#	08/1988 - 01/1992	1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95708	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC	08/1988 - 01/1992	1
71012-95709	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71012-95709	CM36,KM36..LHD..V4D..5F..02S AUSTRIA SPEC	08/1988 - 01/1992	1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9572103	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71071-9572103	CM36,KM3#..LHD..STD W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71071-9574103	CM36,KM36..LHD..V4D..5F..02S AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71071-9574103	CM36,KM3#..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9575003	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71072-9576403	CM36,KM3#..LHD..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71072-9574703	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71072-9575003	CM36,KM3#..LHD..STD W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71072-9576403	CM36,KM36..LHD..V4D..5F..02S AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9574603	KM36..SRF;CM36,KM3#..LHD..V4D..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71073-9572103	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC OR AUSTRIA SPEC OR W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71073-9574703	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71073-9572403	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-9573103	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9574403	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9575303	KM36..SRF;CM36,KM3#..LHD..V4D..STD GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9575503	KM36..SRF;CM36,KM3#..LHD..V4D..STD W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9574303	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71074-9572703	CM36,KM36..LHD..V4D..5F..02S W(FABRIC SEAT & SEPARATE HEADREST) OR AUSTRIASPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-95G0303	CM36,KM3#..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71410-95G0303	CM36,KM36..LHD..V4D..5F..02S ***,AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71410-9577303	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71410-9577303	CM36,KM3#..LHD..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9574703	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 09/1988	1
71420-9576103	CM36,KM3#..LHD..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71420-9576103	CM36,KM36..LHD..V4D..5F..02S ***,AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71420-9574703	CM36,KM3#..LHD..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	09/1988 - 01/1992	1
71420-9574403	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9573303	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71430-9573003	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC OR AUSTRIA SPEC OR W(FABRIC SEAT & SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71430-9575603	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71430-9575503	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9575303	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC & W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9573903	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(FABRIC SEAT),GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9576303	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9575203	CM36,KM36..LHD..V4D..5F..02S ***,DENMARK SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9576503	KM36..SRF;CM36,KM3#..LHD..V4D..STD ***,W(SEPARATE TYPE HEADREST),GRAY,TRIM1#	08/1988 - 01/1992	1
71440-9573503	CM36,KM36..LHD..V4D..5F..02S ***,W(FABRIC SEAT & SEPARATE TYPE HEADREST) OR AUSTRIA SPEC,GRAY,TRIM1#	08/1988 - 01/1992	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95701	CM3#,KM3#	08/1988 - 01/1992	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-95706	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC	08/1988 - 01/1992	1
71512-95705	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71512-95705	CM36,KM36..LHD..V4D..5F..02S AUSTREA SPEC	08/1988 - 01/1992	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-95703	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-95708	CM36,KM36..LHD..V4D..5F..02S DENMARK SPEC	08/1988 - 01/1992	1
71506-95706	CM3#,KM3#..LHD	08/1988 - 01/1992	1
71506-95706	CM36,KM36..LHD..V4D..5F..02S AUSTREA SPEC	08/1988 - 01/1992	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71588-9570013	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71588 - PROTECTOR, FRONT SEAT BACK EDGE, NO.2
71588-9570013	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71811C - COVER, RECLINING ADJUSTER, RH
71801-9570003	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71812C - COVER, RECLINING ADJUSTER, LH
71802-9570003	CM3#,KM3#..LHD GRAY,TRIM1#	08/1988 - 01/1992	1
71831D - COVER, FRONT SEAT HINGE, RH
71831-9570013	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
71832D - COVER, FRONT SEAT HINGE, LH
71832-9570003	CM3#,KM3#..LHD GRAY,TRIM1#	08/1988 - 01/1992	1
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-9570003	CM3#,KM3# GRAY,TRIM1#	09/1989 - 01/1992	1
72213 - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-9570003	CM3#,KM3# GRAY,TRIM1#	09/1989 - 01/1992	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-9570803	CM3#,KM3# GRAY,TRIM1#	08/1988 - 01/1992	1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-9570703	CM3#,KM3#..LHD GRAY,TRIM1#	08/1988 - 01/1992	1
Common parts
90119-08079
90168-40043
90179-10073
90386-12018
90468-18071
90523-08001
91611-61020
91651-61020
93560-55010
Linked diagrams
8513

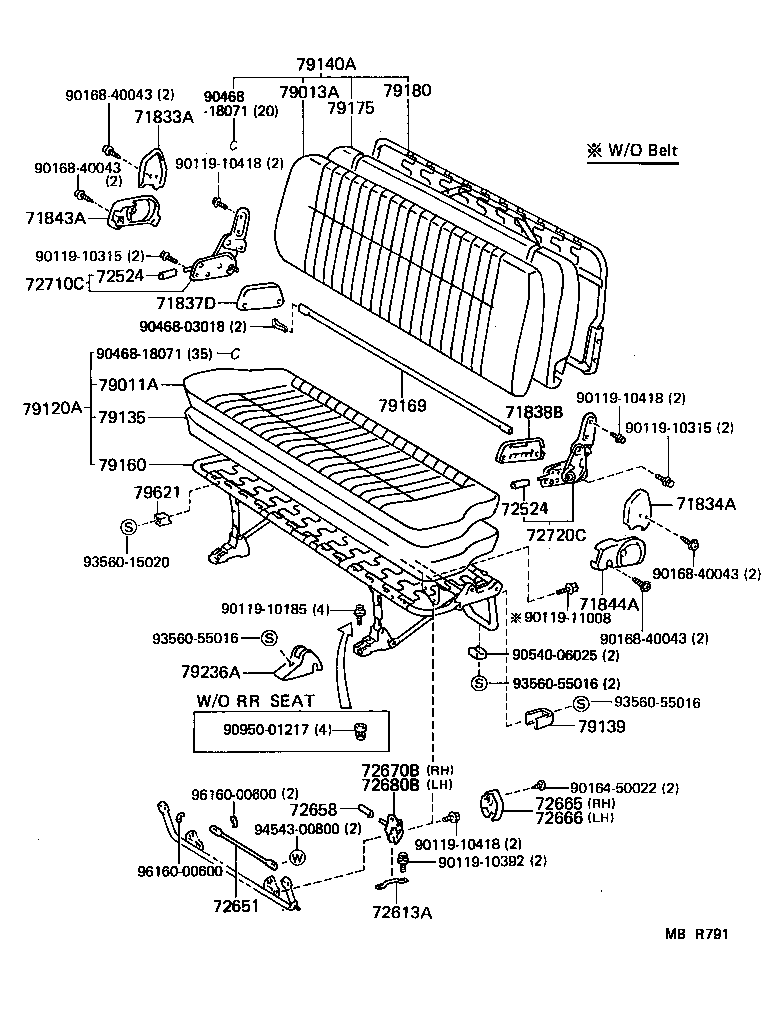

ILLUST NO. 2 OF 2(8808- )CM36,KM36..LHD

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-10185
90119-10315
90119-10392
90119-10418
90119-11008
90164-50022
90168-40043
90468-03018
90468-18071
90540-06025
90950-01217
93560-15020
93560-55016
94543-00800
96160-00600

KM36LV-MRSBEW (1988)

ILLUST NO. 1 OF 3(8808- )LHD

(8808- )LHD..STD

ILLUST NO. 2 OF 2(8808- )CM36,KM36..LHD

Part Price Details
