KM36LV-MRSBEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K

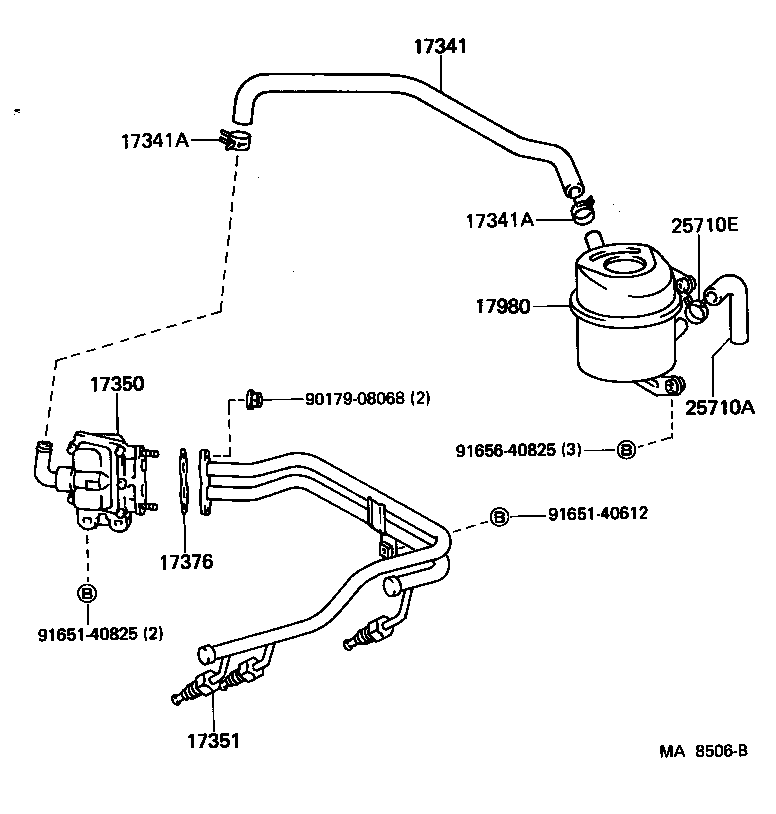

Click highlighted areas on diagram

SWITZERLAND SPEC & AUSTRIA SPEC

diagram 17341 17341A 17341A 17350 17351 17376 17980 25710A 25710E 9017908068 9165140612 9165140825 9165640825
Part # Description Qty Price
17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-13030

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17341-13030

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 2
90467-26001

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 2
17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1
90467-26001

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 2
90467-26001

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 2
17350 - VALVE ASSY, REED
17350-13080

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17351 - MANIFOLD, AIR INJECTION
17306-13050

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17306-13050

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17376 - GASKET, AIR TUBE, NO.1
17376-71010

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17376-71011

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17376-71011

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17980 - FILTER ASSY, AIR SUCTION
17980-13010

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
17980-13010

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
25710A - HOSE(FOR AIR BY-PASS VALVE TO AIR SWITCHING VALVE)
90910-05149

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
90910-05149

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
25710E - CLIP
90467-26001

5K..KM30..DLX;5K..KM36..LHD..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
90467-26001

5K..KM30..DLX;5K..KM36..LHD..V4D..5F..02S

SWITZERLAND SPEC OR AUSTRIA SPEC

 1
Common parts
90179-08068
91651-40612
91651-40825
91656-40825
