KM36LV-MRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

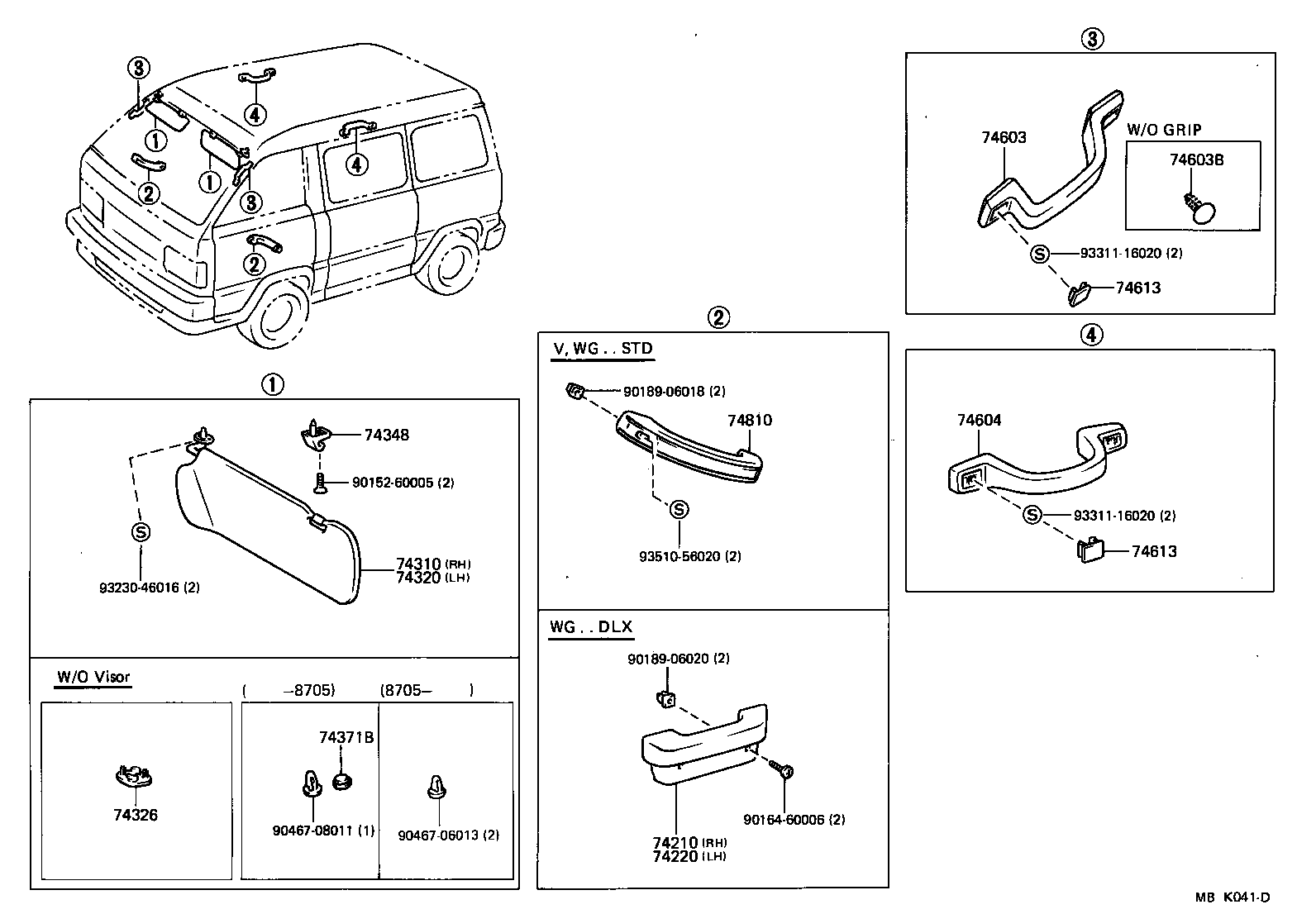

Click highlighted areas on diagram

diagram 74210 74220 74310 74320 74326 74348 74371B 74603 74603B 74604 74613 74613 74810 9015260005 9016460006 9018906018 9018906020 9046706013 9046708011 9323046016 9331116020 9331116020 9351056020
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-9572008

KM31;KM36..5F..02S

*FRG,IVORY,IVORY

 1
74310-9571808

CM35,KM3#..STD

IVORY,IVORY

 1
74310-9572008

KM36..LHD..MRF..02S

*FRG,IVORY,IVORY

 1
74320 - VISOR ASSY, LH
74320-9571108

KM31;KM36..5F..02S

*FRG,IVORY,IVORY

 1
74320-9570908

CM35,KM3#..STD

IVORY,IVORY

 1
74320-9571108

KM36..LHD..MRF..02S

*FRG,IVORY,IVORY

 1
74326 - COVER, VISOR HOLE
74325-95J0003

CM35,KM3#..STD

GRAY,GRAY,TRIM8#

 1
74348 - HOLDER, VISOR
74348-3201005

CM35,KM3#

BEIGE,BEIGE,TRIM4#

 2
74371B - PLUG, HOLE (FOR VISOR HANGER)
90950-01314

CM35,KM3#..STD

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-9570205

KM36;CM35..02S

BEIGE,BEIGE,TRIM4#

 1
74603B - CLIP (FOR ASSIST GRIP)
90467-0502003

KM36;CM35..02S

BEIGE,SHADOW GRAY,TRIM4#

 1
74613 - PLUG, ASSIST GRIP
74617-1601015

CM35,KM31,36

BEIGE,BEIGE,TRIM4#

 4
74613 - PLUG, ASSIST GRIP
74617-1601015

CM35,KM31,36

BEIGE,BEIGE,TRIM4#

 4
74810 - PULL ASSY, DOOR, INSIDE
69285-9570016

CM35,KM3#..STD

BROWN,BROWN,TRIM4#

 2
Common parts
90152-60005
90164-60006
90189-06018
90189-06020
90467-06013
90467-08011
93230-46016
93311-16020
93510-56020
