KM36LV-KRSW (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
5K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 3(8808- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 99132-12034 |
KM3#..LHD 12V 3.4W |
12 | ||
| 90981-11018 |
CM3#,KM3#..LHD 12V 1.2W W/O SOCKET |
1 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-95700 |
CM3#,KM3#..LHD |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CM3#,KM3#..LHD 12V 1.2W OR 14V 1.4W |
1 | ||
| 83101-20040 |
KM3#..LHD 12V 3.4W |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
CM3#,KM3#..LHD 12V 1.2W OR 14V 1.4W |
1 | ||
| 83101-20040 |
KM3#..LHD 12V 3.4W |
12 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-95723 |
KM3#..LHD |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-95721 |
CM3#,KM3#..LHD |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-95010 |
CM3#,KM3#..LHD |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-95705 |
KM3#..LHD |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-95709 |
CM3#,KM3#..LHD |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-95013 |
CM3#,KM3#..LHD |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-95A15 |
CM3#,KM3#..LHD |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-95G00 |
CM3#,KM3#..LHD |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83145-95G10 |
KM3#..LHD |
1 | ||
| 83145D - LENS, METER, NO.5 | ||||
| 83145-95026 |
CM3#,KM3#..LHD |
1 | ||
| 83145E - LENS, METER, NO.6 | ||||
| 83145-87303 |
CM3#,KM3#..LHD |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-95714 |
CM3#,KM3#..LHD |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-95704 |
CM3#,KM3#..LHD |
1 | ||
| Common parts | ||||
| 83161-20380 | ||||
| 83165-20020 | ||||
| 90183-05032 | ||||
| 93540-13016 | ||||
| 93560-55016 | ||||
| 94115-40400 | ||||

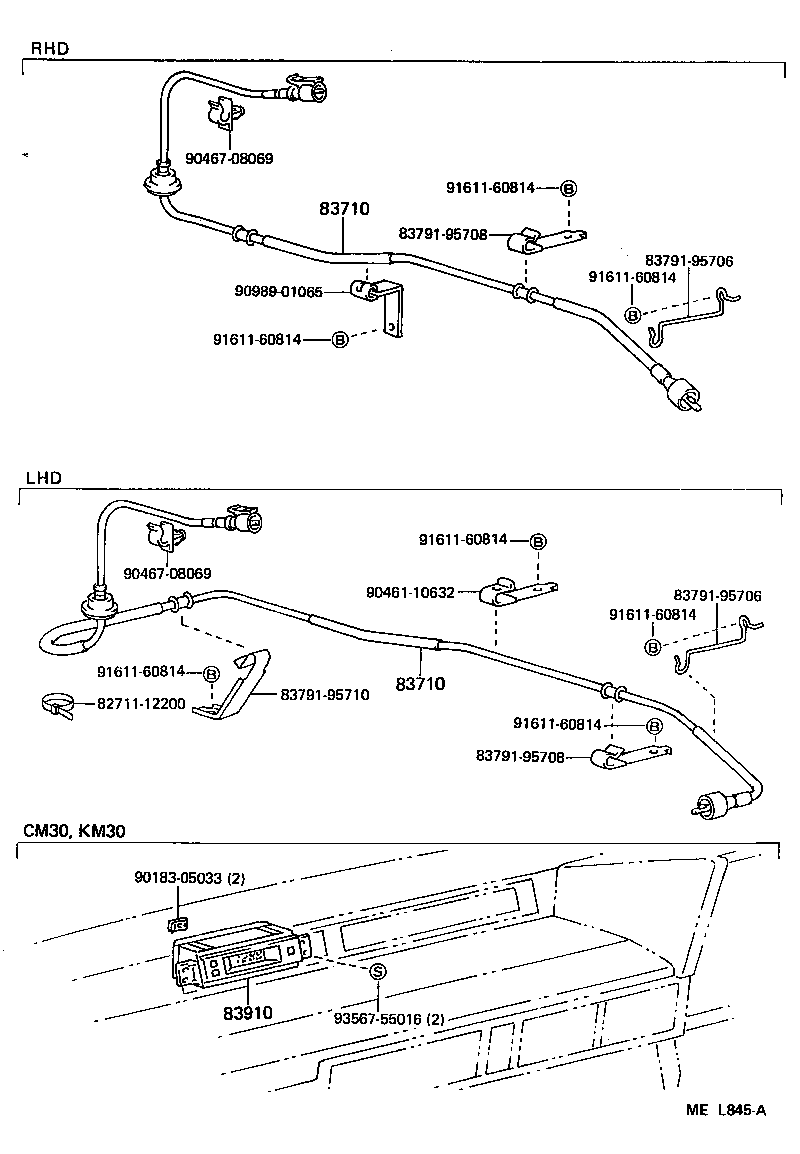

ILLUST NO. 2 OF 3(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95723 |
KM36..4F,4H |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-95723 |
KM36..4F,4H |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 83791-95706 | ||||
| 83791-95708 | ||||
| 83791-95710 | ||||
| 90183-05033 | ||||
| 90461-10632 | ||||
| 90467-08069 | ||||
| 90989-01065 | ||||
| 91611-60814 | ||||
| 93567-55016 | ||||
