KM36LV-KRSW (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
5K
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

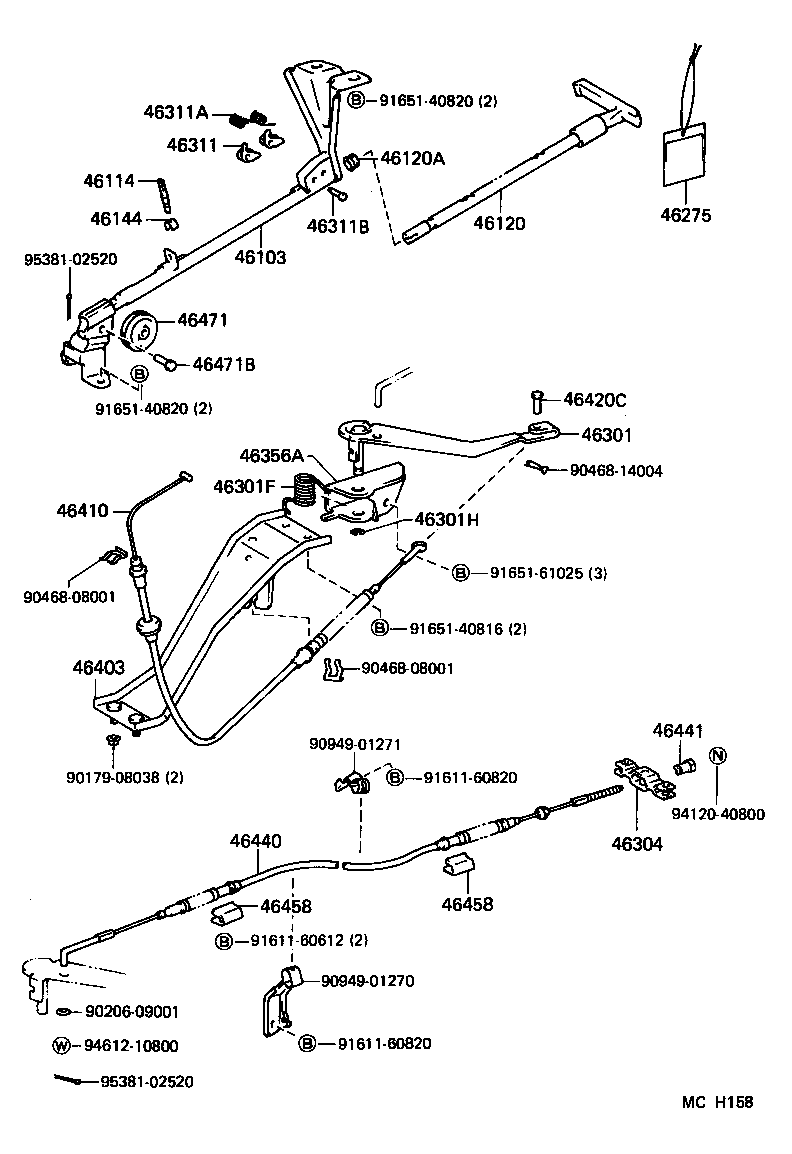

ILLUST NO. 1 OF 2(8808- )LHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-27050 |
CM3#,KM3#..LHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
CM3#,KM3#..LHD |
1 | ||
| 46120 - PLUNGER ASSY, PARKING BRAKE | ||||
| 46120-27020 |
CM3#,KM3#..LHD |
1 | ||
| 46120A - BUSH(FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
CM3#,KM3#..LHD |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
CM3#,KM3#..LHD |
1 | ||
| 46275 - PLATE, PARKING BRAKE RELEASE CAUTION | ||||
| 46275-35010 |
CM3#,KM3#..LHD |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-27011 |
CM3#,KM3#..LHD |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-32028 |
CM3#,KM3#..LHD |
1 | ||
| 46301H - RING, E(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 96160-00900 |
CM3#,KM3#..LHD |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-22020 |
CM3#,KM3# |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
CM3#,KM3#..LHD |
2 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08106 |
CM3#,KM3#..LHD |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 46313-40010 |
CM3#,KM3#..LHD |
2 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-27040 |
CM3#,KM3#..LHD |
1 | ||
| 46403 - BRACKET SUB-ASSY, CABLE SUPPORT, LH | ||||
| 46403-27010 |
CM3#,KM3#..LHD |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-27150 |
CM3#,KM3#..LHD |
1 | ||
| 46420C - PIN, W/HOLE(FOR PARKING BRAKE CABLE) | ||||
| 90240-08028 |
CM3#,KM3#..LHD |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-27011 |
CM3#,KM3#..LHD |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
CM3#,KM3# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CM3#,KM3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CM3#,KM3# |
2 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
CM3#,KM3#..LHD |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08017 |
CM3#,KM3#..LHD |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 90206-09001 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90949-01270 | ||||
| 90949-01271 | ||||
| 91611-60612 | ||||
| 91611-60820 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-61025 | ||||
| 94120-40800 | ||||
| 94612-10800 | ||||
| 95381-02520 | ||||

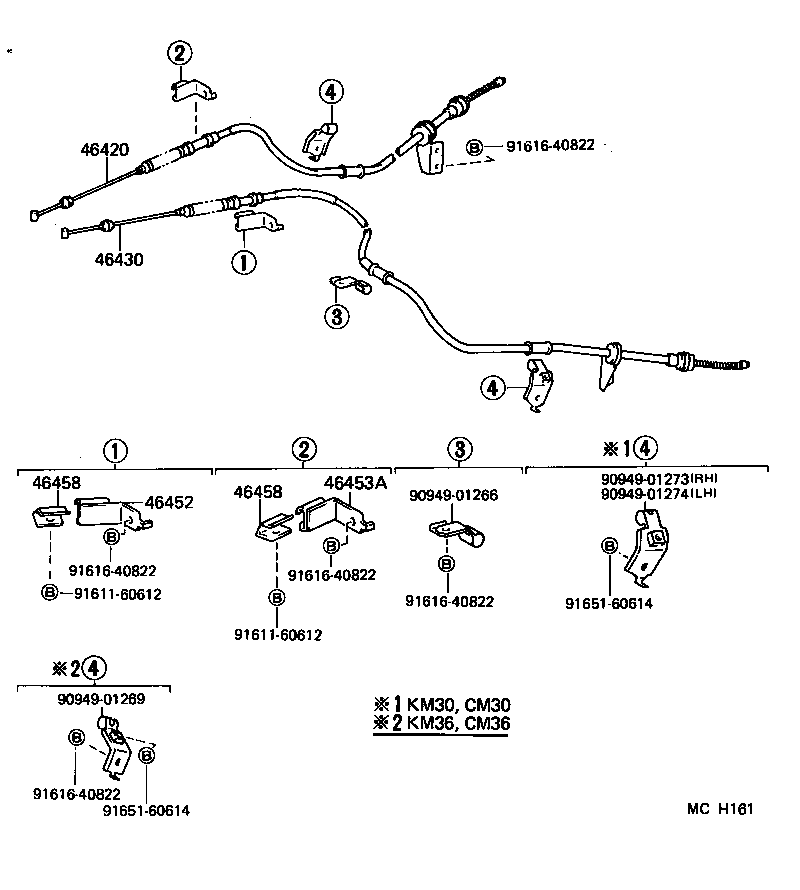

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-27150 |
CM36,KM36 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-27150 |
CM36,KM36 |
1 | ||
| 46430-27151 |
CM36,KM36 |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-28060 |
CM3#,KM3# |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-28010 |
CM3#,KM3# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CM3#,KM3# |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
CM3#,KM3# |
2 | ||
| Common parts | ||||
| 90949-01266 | ||||
| 90949-01269 | ||||
| 90949-01273 | ||||
| 90949-01274 | ||||
| 91611-60612 | ||||
| 91616-40822 | ||||
| 91651-60614 | ||||
