KM36LV-KRBFEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )LHD

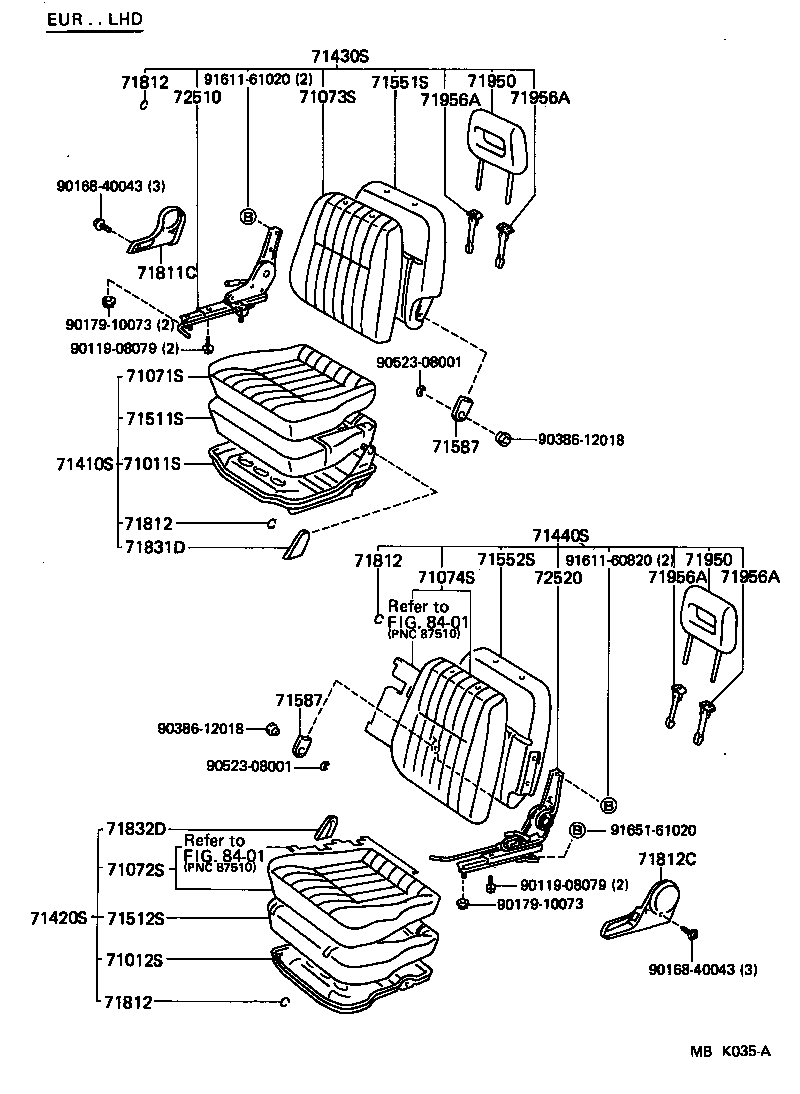

Click highlighted areas on diagram

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71587 71587 71811C 71812 71812 71812 71812 71812C 71831D 71832D 71950 71950 71956A 71956A 71956A 71956A 72510 72520 8401 8401 9011908079 9011908079 9016840043 9016840043 9017910073 9017910073 9038612018 9038612018 9052308001 9052308001 9161160820 9161161020 9165161020
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-95706

CM35,KM3#

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71012-95706

CM35,KM3#..LHD

 1
71012-95706

CM35,KM3#..LHD

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-9571706

CM35,KM3#..STD

PF,BROWN,BROWN,TRIM4#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-9573106

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71072-9575106

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-9571706

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71073-9572206

CM35,KM3#..LHD..STD

PF,W/*HR,BROWN,BROWN,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-9572606

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71074-9572806

CM35,KM3#..LHD..STD

PF,W/*HR,BROWN,BROWN,TRIM4#

 1
71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71410-9576906

CM35,KM3#..STD

PF,BROWN,BROWN,TRIM4#

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-9572806

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71420-9574806

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-9572606

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71430-9573106

CM35,KM3#..LHD..STD

PF,W/*HR,BROWN,BROWN,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-9573406

CM35,KM3#..LHD..STD

PF,BROWN,BROWN,TRIM4#

 1
71440-9573606

CM35,KM3#..LHD..STD

PF,W/*HR,BROWN,BROWN,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-95701

CM35,KM3#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-95704

CM35,KM3#..LHD

 1
71512-95705

CM35,KM3#..LHD

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-95703

CM35,KM3#..LHD

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-95706

CM35,KM3#..LHD

 1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71588-9570006

CM35,KM3#..LHD

BROWN,BROWN,TRIM4#

 2
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71588-9570006

CM35,KM3#..LHD

BROWN,BROWN,TRIM4#

 2
71811C - COVER, RECLINING ADJUSTER, RH
71801-9570006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM35,KM3#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM35,KM3#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM35,KM3#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM35,KM3#

 1
71812C - COVER, RECLINING ADJUSTER, LH
71802-9570006

CM35,KM3#..LHD

BROWN,BROWN,TRIM4#

 1
71831D - COVER, FRONT SEAT HINGE, RH
71831-9570006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
71832D - COVER, FRONT SEAT HINGE, LH
71832-9570006

CM35,KM3#..LHD

BROWN,BROWN,TRIM4#

 1
71950 - HEADREST ASSY, FRONT SEAT
71910-9570806

CM35,KM3#..LHD

BROWN,BROWN,TRIM4#

 2
71950 - HEADREST ASSY, FRONT SEAT
71910-9570806

CM35,KM3#..LHD

BROWN,BROWN,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002016

CM35,KM3#..LHD

W/O(LOCK),W/O LOCK,BROWN,BROWN,TRIM4#

 2
71990-3002016

CM35,KM3#..LHD

W(LOCK),W/LOCK,BROWN,BROWN,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002016

CM35,KM3#..LHD

W/O(LOCK),W/O LOCK,BROWN,BROWN,TRIM4#

 2
71990-3002016

CM35,KM3#..LHD

W(LOCK),W/LOCK,BROWN,BROWN,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002016

CM35,KM3#..LHD

W/O(LOCK),W/O LOCK,BROWN,BROWN,TRIM4#

 2
71990-3002016

CM35,KM3#..LHD

W(LOCK),W/LOCK,BROWN,BROWN,TRIM4#

 2
71956A - SUPPORT, FRONT SEAT HEADREST
71956-3002016

CM35,KM3#..LHD

W/O(LOCK),W/O LOCK,BROWN,BROWN,TRIM4#

 2
71990-3002016

CM35,KM3#..LHD

W(LOCK),W/LOCK,BROWN,BROWN,TRIM4#

 2
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-9570806

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH
72520-9570706

CM35,KM3#..LHD

BROWN,BROWN,TRIM4#

 1
Common parts
90119-08079
90168-40043
90179-10073
90386-12018
90523-08001
91611-60820
91611-61020
91651-61020
Linked diagrams
8401

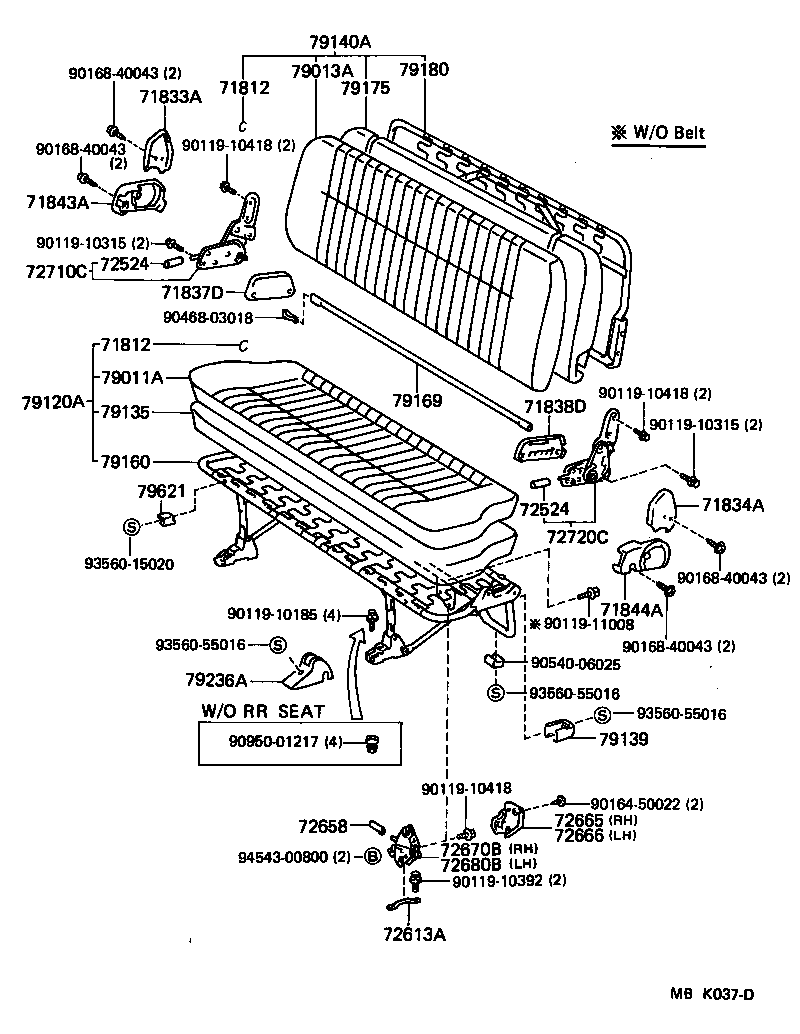

ILLUST NO. 2 OF 2(8510- )CM35,KM31,36..LHD

Click highlighted areas on diagram

diagram 71812 71812 71833A 71834A 71837D 71838D 71843A 71844A 72524 72524 72613A 72658 72665 72666 72670B 72680B 72710C 72720C 79011A 79013A 79120A 79135 79139 79140A 79160 79169 79175 79180 79236A 79621 9011910185 9011910315 9011910315 9011910392 9011910418 9011910418 9011910418 9011911008 9016450022 9016840043 9016840043 9016840043 9016840043 9046803018 9054006025 9095001217 9356015020 9356055016 9356055016 9356055016 9454300800
Part # Description Qty Price
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM35,KM3#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

CM35,KM3#

 1
Common parts
90119-10185
90119-10315
90119-10392
90119-10418
90119-11008
90164-50022
90168-40043
90468-03018
90540-06025
90950-01217
93560-15020
93560-55016
94543-00800
