KM36LV-KRBFEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )CM35,KM31,36..LHD

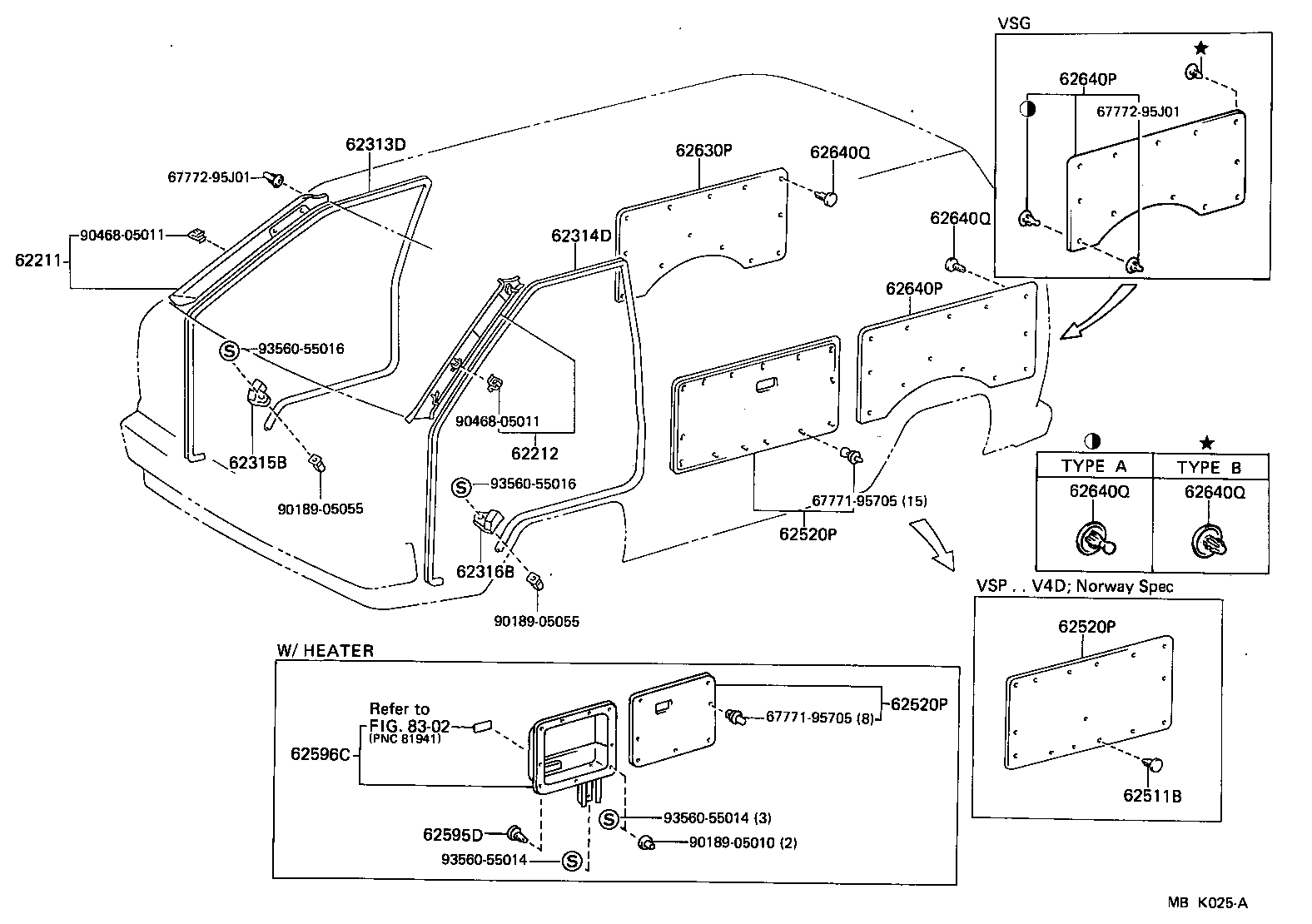

Click highlighted areas on diagram

diagram 62211 62212 62313D 62314D 62315B 62316B 62511B 62520P 62520P 62520P 62595D 62596C 62630P 62640P 62640P 62640Q 62640Q 62640Q 62640Q 6777195705 6777195705 6777295J01 6777295J01 8302 9018905010 9018905055 9018905055 9046805011 9046805011 9356055014 9356055014 9356055016 9356055016
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62211-9570605

CM35,KM3#

BEIGE,BEIGE,TRIM4#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-9570705

CM35,KM3#

BEIGE,BEIGE,TRIM4#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-9571006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62313-9571006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
62315B - COVER, FRONT DOOR OPENING TRIM, RH
62317-9570006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
62316B - COVER, FRONT DOOR OPENING TRIM, LH
62318-9570006

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
62630P - PANEL ASSY, QUARTER TRIM, REAR RH
62631-95704

CM35,KM31,36..LHD

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95704

KM36..SRF;CM35,KM36..RHD

 1
62640P - PANEL ASSY, QUARTER TRIM, REAR LH
62632-95704

KM36..SRF;CM35,KM36..RHD

 1
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36..SRF;CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 26
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36..SRF;CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 26
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36..SRF;CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 26
62640Q - CLIP (FOR QUARTER TRIM REAR PANEL)
90467-1007106

KM36..SRF;CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 26
Common parts
67771-95705
67772-95J01
90189-05010
90189-05055
90468-05011
93560-55014
93560-55016
Linked diagrams
8302
