KM36LV-KRBFEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

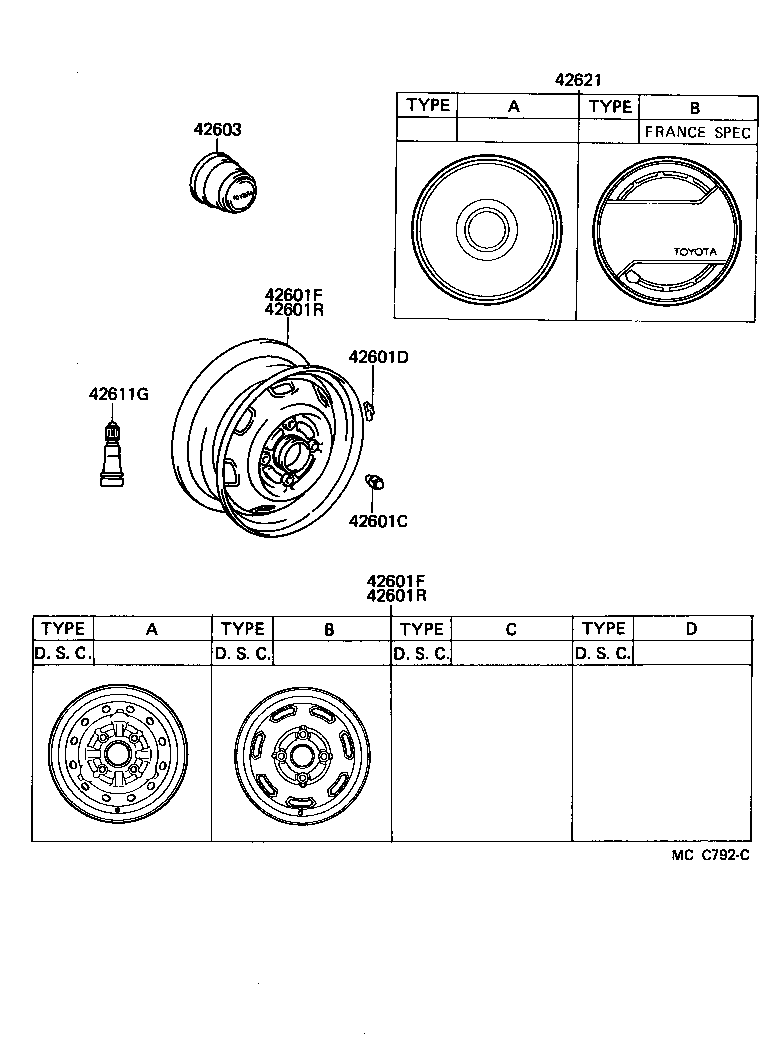

Click highlighted areas on diagram

diagram 42601C 42601D 42601F 42601F 42601R 42601R 42603 42611G 42621
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01007

CM35,KM3#

W/WHEEL CAP

 16
90942-01027

CM35,KM3#

 16
90942-01059

CM35,KM3#

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03022

CM35,KM3#

40G,T=9.5,40G

 1
90942-03025

CM35,KM3#

50G,T=9.5,50G

 1
90942-03041

CM35,KM3#

10G,T=7.5,10G

 1
90942-03017

CM35,KM3#

20G,T=8,20G

 1
90942-03020

CM35,KM3#

30G,T=10,30G

 1
90942-03029

CM35,KM3#

70G,T=9.5,70G

 1
90942-03027

CM35,KM3#

60G,T=9.5,60G

 1
90942-03031

CM35,KM3#

80G,T=9.5,80G

 1
42601F - WHEEL, DISC (FOR FRONT)
42611-22211

CM35,KM3#

14X5J,5J-14,TYPE A

 2
42611-23011

CM35,KM3#

4.5JX14,4.5J-14,TYPE A

 2
42601F - WHEEL, DISC (FOR FRONT)
42611-22211

CM35,KM3#

14X5J,5J-14,TYPE A

 2
42611-23011

CM35,KM3#

4.5JX14,4.5J-14,TYPE A

 2
42601R - WHEEL, DISC (FOR REAR)
42611-22211

CM35,KM3#

14X5J,5J-14,TYPE A

 3
42611-23011

CM35,KM3#

4.5JX14,4.5J-14,TYPE A

 3
42601R - WHEEL, DISC (FOR REAR)
42611-22211

CM35,KM3#

14X5J,5J-14,TYPE A

 3
42611-23011

CM35,KM3#

4.5JX14,4.5J-14,TYPE A

 3
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-27060

CM35,KM3#

*STE

 4
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

CM35,KM3#

 5
42621 - CAP, WHEEL
42621-26110

CM35,KM3#

TYPE A

 4
