KM36LV-KRBFEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

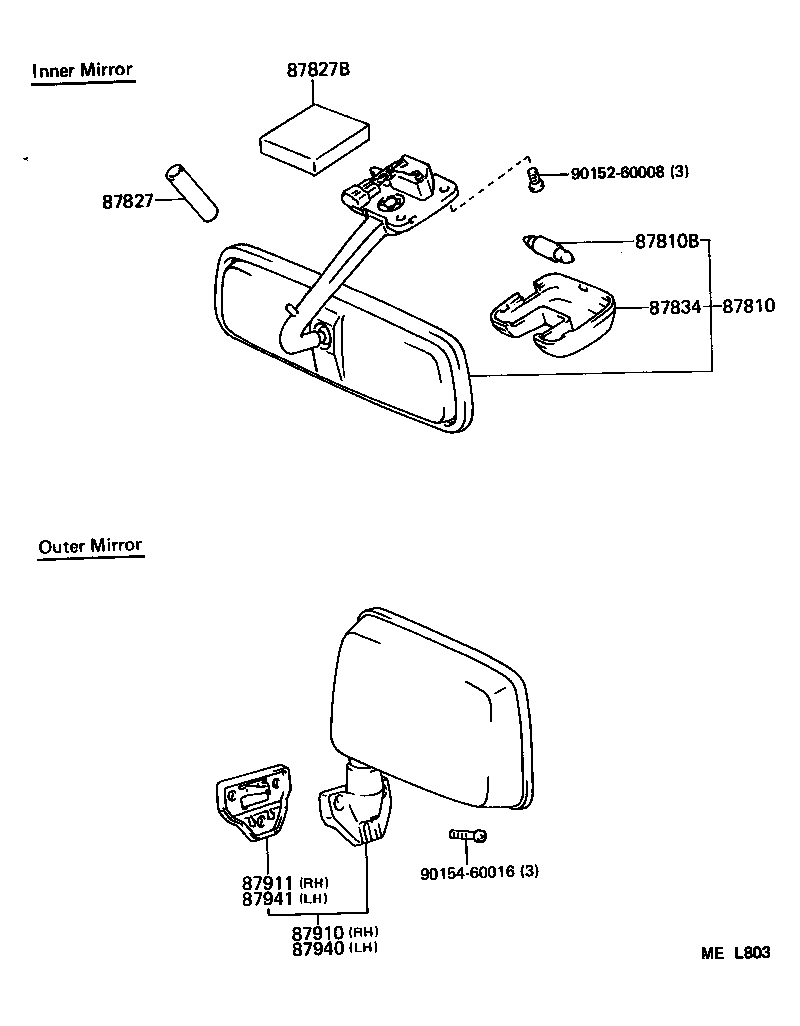

Click highlighted areas on diagram

diagram 87810 87810B 87827 87827B 87834 87910 87911 87940 87941 9015260008 9015460016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95709

CM3#,KM3#

 1
87810-95J06

CM3#,KM3#

NON-GLARE TYPE

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

CM3#,KM3#

12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-22020

CM3#,KM3#

L=35

 1
87828-23010

CM3#,KM3#

L=38.5

 1
87827B - PAD, INNER REAR VIEW MIRROR
87827-95700

CM3#,KM3#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

CM3#,KM3#

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-95721

CM3#,KM3#

 1
87911 - GASKET, OUTER REAR VIEW MIRROR, RH
87959-95701

CM3#,KM3#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-95726

CM3#,KM3#

 1
87941 - GASKET, OUTER REAR VIEW MIRROR, LH
87959-95701

CM3#,KM3#

 1
Common parts
90152-60008
90154-60016
