KM36LV-KRBFEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K

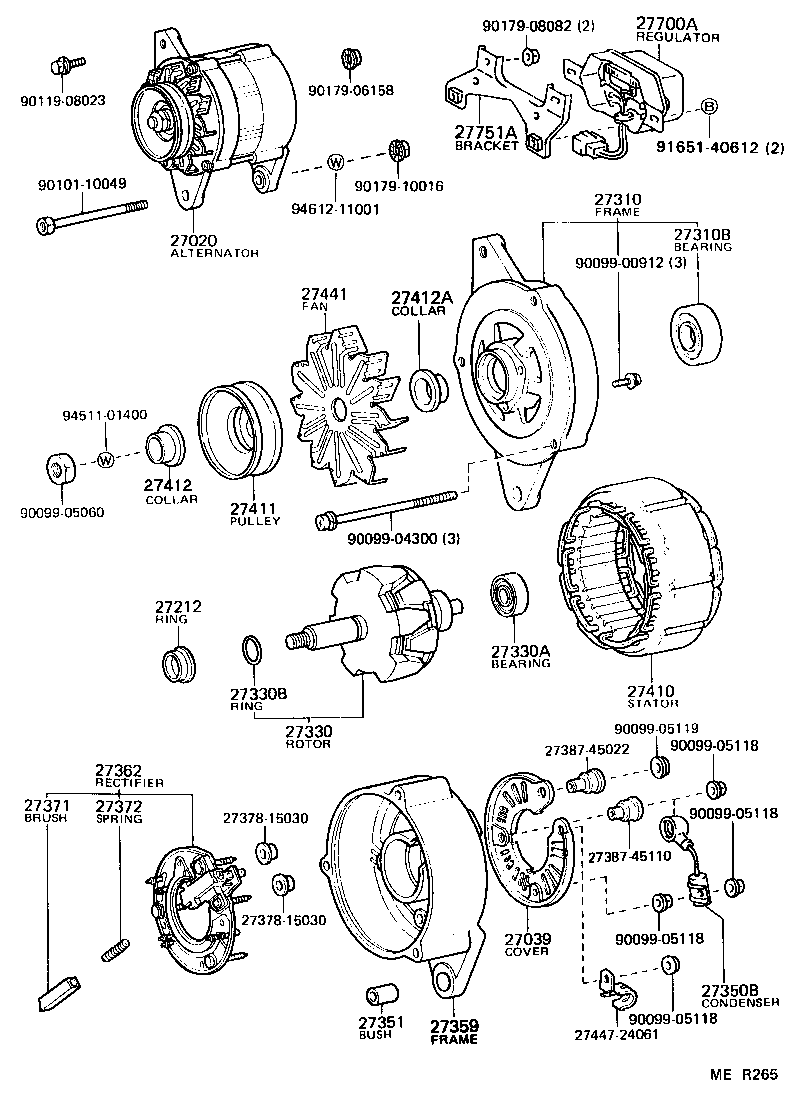

Click highlighted areas on diagram

12V 40A,45A

diagram 27020 27039 27212 27310 27310B 27330 27330A 27330B 27350B 27351 27359 27362 27371 27372 2737815030 2737815030 2738745022 2738745110 27410 27411 27412 27412A 27441 2744724061 27700A 27751A 9009900912 9009904300 9009905060 9009905118 9009905118 9009905118 9009905118 9009905119 9010110049 9011908023 9017906158 9017908082 9017910016 9165140612 9451101400 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-13060

5K..KM30..DLX;5K..KM36..LHD..(4F,5F)

12V 40A

 1
27039 - COVER, ALTERNATOR REAR END
27039-18011

5K..KM3#

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27212-39050

5K..KM3#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-13050

5K..KM3#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10125

5K..KM3#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-26050

5K..KM36..LHD..02S

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

5K..KM3#

 1
27330B - RING, SNAP(FOR ALTERNATOR ROTOR)
90099-07048

5K..KM3#

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

5K..KM3#

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-38051

5K..KM3#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-13050

5K..KM3#

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-18011

5K..KM3#

 1
27371 - BRUSH, ALTERNATOR
27371-31011

5K..KM3#

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

5K..KM3#

 2
27410 - STATOR ASSY, ALTERNATOR
27410-38120

5K..KM3#

 1
27411 - PULLEY, ALTERNATOR
27411-31042

5K..KM3#

 1
27412 - COLLAR, SPACER(FOR ALTERNATOR PULLEY)
27412-44030

5K..KM3#

 1
27412A - COLLAR, SPACE(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

5K..KM3#

 1
27441 - FAN, ALTERNATOR
27441-34030

5K..KM3#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-13101

5K..KM36..SRF;5K..KM36..LHD..V4D

COLD SPEC

 1
27700-13080

5K..KM3#

 1
27751A - BRACKET, GENERATOR REGULATOR
27751-13010

5K..KM3#

 1
Common parts
27378-15030
27387-45022
27387-45110
27447-24061
90099-00912
90099-04300
90099-05060
90099-05118
90099-05119
90101-10049
90119-08023
90179-06158
90179-08082
90179-10016
91651-40612
94511-01400
94612-11001
