KM36LV-JRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

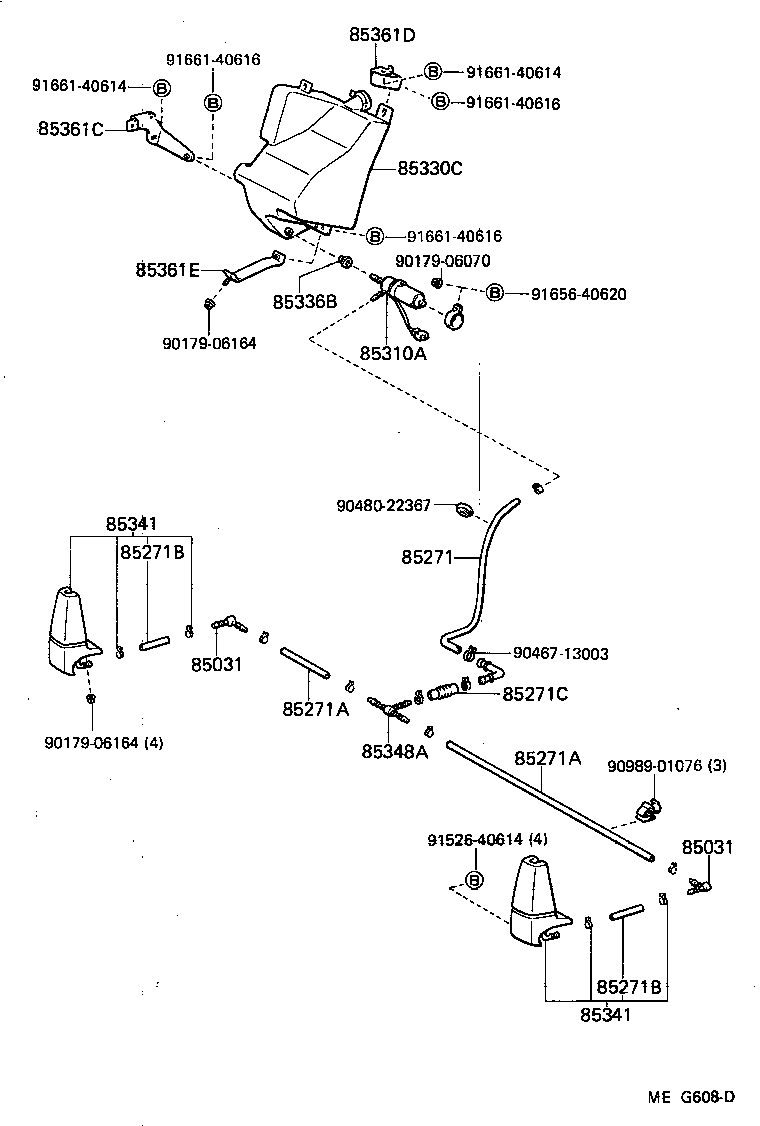

Click highlighted areas on diagram

diagram 85031 85031 85271 85271A 85271A 85271B 85271B 85271C 85310A 85330C 85336B 85341 85341 85348A 85361C 85361D 85361E 9017906070 9017906164 9017906164 9046713003 9048022367 9098901076 9152640614 9165640620 9166140614 9166140614 9166140616 9166140616 9166140616
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

CM35,KM36..4H,5H

 2
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

CM35,KM36..4H,5H

 2
85271 - HOSE, HEADLAMP CLEANER, NO.1
90445-14048

CM35,KM36..4H,5H

L=150

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90445-14048

CM35,KM36..4H,5H

L=150

 1
85375-89115

CM35,KM36..4H,5H

*H,L=960

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90445-14048

CM35,KM36..4H,5H

L=150

 1
85375-89115

CM35,KM36..4H,5H

*H,L=960

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
90445-14071

CM35,KM36..4H,5H

L=50

 2
85271B - HOSE, HEADLAMP CLEANER, NO.3
90445-14071

CM35,KM36..4H,5H

L=50

 2
85271C - HOSE, HEADLAMP CLEANER, NO.4
85375-20190

CM35,KM36..4H,5H

L=90

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85310-95704

CM35,KM36..4H,5H

 1
85330C - JAR ASSY, HEADLAMP CLEANER WASHER
85330-95400

CM35,KM36..4H,5H

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

CM35,KM36..4H,5H

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-95713

CM35,KM36..4H,5H

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85035-95713

CM35,KM36..4H,5H

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85352-12010

CM35,KM36..4H,5H

 1
85361C - BRACKET, WASHER
85361-95710

CM35,KM36..4H,5H

 1
85361D - BRACKET, HEADLAMP CLEANER, NO.2
85361-95711

CM35,KM36..4H,5H

 1
85361E - BRACKET, HEADLAMP CLEANER, NO.3
85361-95712

CM35,KM36..4H,5H

 1
Common parts
90179-06070
90179-06164
90467-13003
90480-22367
90989-01076
91526-40614
91656-40620
91661-40614
91661-40616
