KM36LV-JRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 4H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )4F,4H

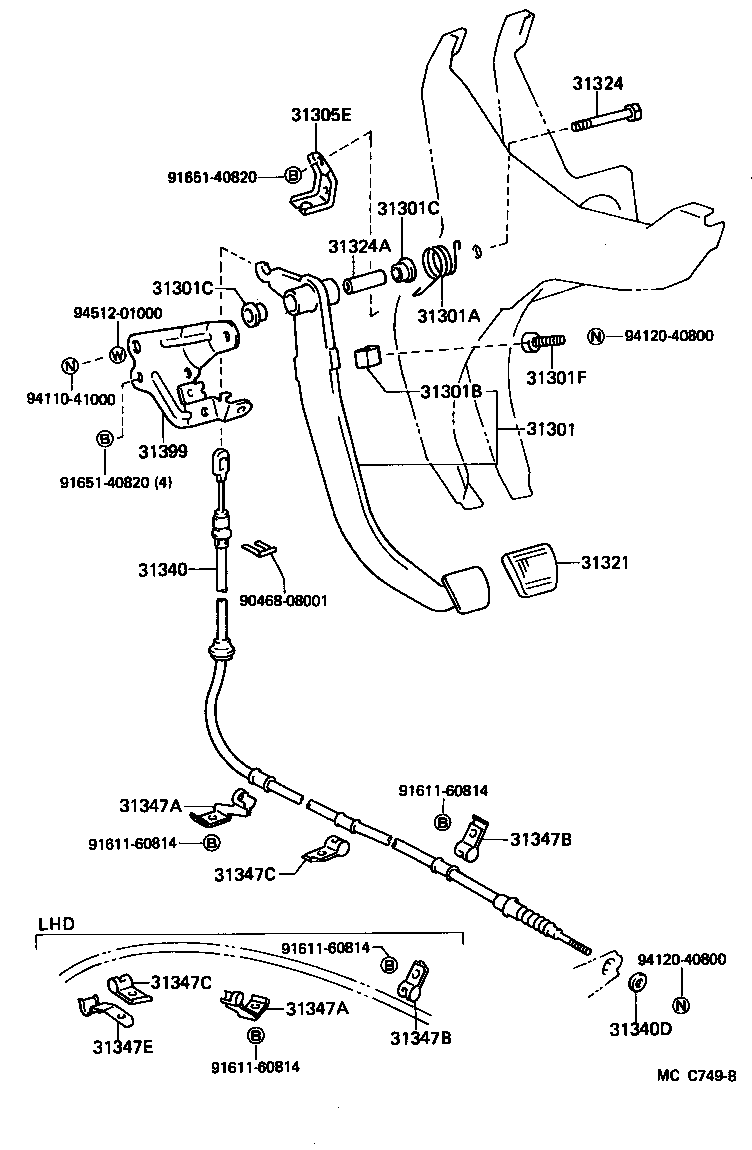

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31305E 31321 31324 31324A 31340 31340D 31347A 31347A 31347B 31347B 31347C 31347C 31347E 31399 9046808001 9161160814 9161160814 9161160814 9161160814 9165140820 9165140820 9411041000 9412040800 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-27140

KM36..LHD..(4F,4H)

 1
31301-27141

KM36..4F,4H

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-35386

KM36..4F,4H

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10020

CM35,KM3#

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM35,KM3#

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

CM35,KM3#

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

CM35,KM3#

 1
31305E - BRACKET, CLUTCH PEDAL STOPPER
55182-95701

KM36..LHD..(4F,4H)

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

CM35,KM3#

 1
31324 - SHAFT, CLUTCH PEDAL
91121-51060

CM35,KM3#

 1
91111-51060

CM35,KM3#

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

CM35,KM3#

 1
31340 - CABLE ASSY, CLUTCH RELEASE
31340-27121

KM36..4F,4H

 1
31340-27120

KM36..LHD..(4F,4H)

 1
31340D - NUT, WIRE ADJUST(FOR CLUTCH RELEASE CABLE)
31339-28010

KM36..4F,4H

 1
31347A - CLAMP, CLUTCH CABLE, NO.1
31347-27020

KM36..4F,4H

 1
31347A - CLAMP, CLUTCH CABLE, NO.1
31347-27020

KM36..4F,4H

 1
31347B - CLAMP, CLUTCH CABLE, NO.2
31347-27050

KM36..LHD..(4F,4H)

 1
31347B - CLAMP, CLUTCH CABLE, NO.2
31347-27050

KM36..LHD..(4F,4H)

 1
31347C - CLAMP, CLUTCH CABLE, NO.3
31347-27060

KM36..LHD..(4F,4H)

 1
31347C - CLAMP, CLUTCH CABLE, NO.3
31347-27060

KM36..LHD..(4F,4H)

 1
31347E - CLAMP, CLUTCH CABLE, NO.4
31347-27070

KM36..LHD..(4F,4H)

 1
31399 - SUPPORT, PEDAL BRACKET CLUTCH WIRE
55105-95706

KM36..LHD..(4F,4H)

 1
Common parts
90468-08001
91611-60814
91651-40820
94110-41000
94120-40800
94512-01000
