KM30LG-MRSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

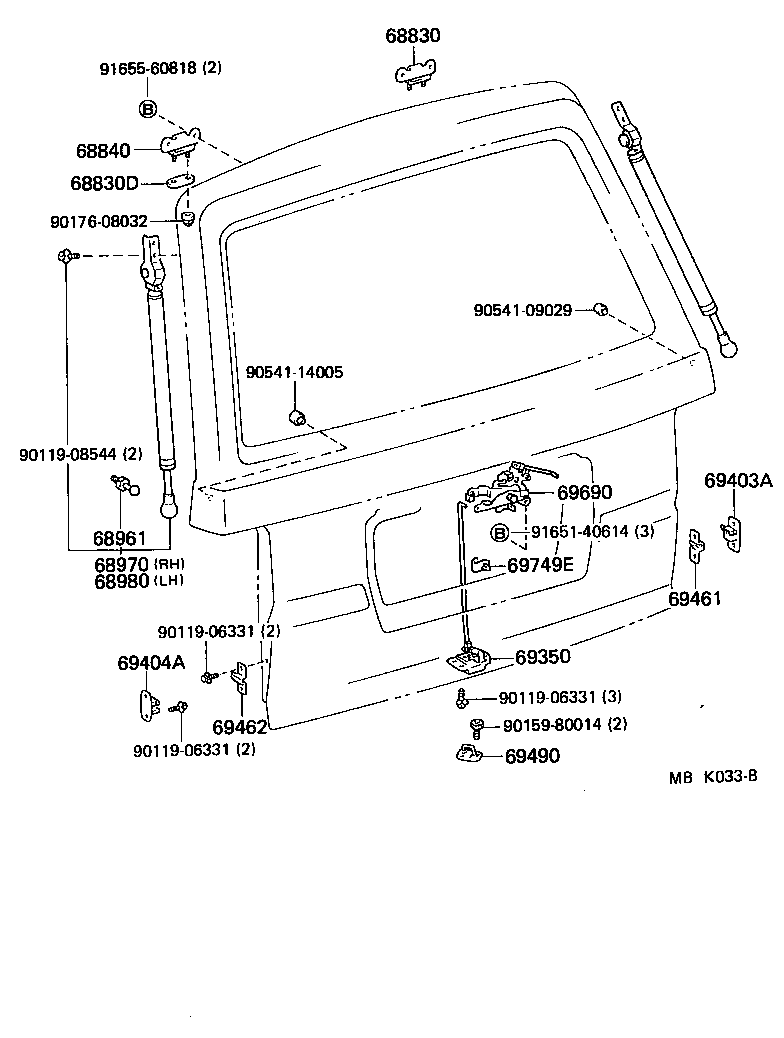

Click highlighted areas on diagram

diagram 68830 68830D 68840 68961 68970 68980 69350 69403A 69404A 69461 69462 69490 69690 69749E 9011906331 9011906331 9011906331 9011908544 9015980014 9017608032 9054109029 9054114005 9165140614 9165560818
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68810-95J01

CM35,KM3#

 1
68810-95J00

CM35,KM3#

 1
68830D - PLATE, BACK DOOR HINGE
68825-95700

CM35,KM3#

 2
68840 - HINGE ASSY, BACK DOOR, LH
68820-95J01

CM35,KM3#

 1
68820-95J00

CM35,KM3#

 1
68961 - BOLT, BACK DOOR STAY
68961-95701

CM35,KM3#

 2
68970 - STAY ASSY, BACK DOOR, RH
68950-29505

CM35,KM3#..MRF

W/RR WIPER

 1
68980 - STAY ASSY, BACK DOOR
68960-29365

CM35,KM3#..MRF

W/RR WIPER

 1
69350 - LOCK ASSY, BACK DOOR
69350-95705

CM35,KM3#

 1
69403A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH
69403-95700

CM35,KM3#

 1
69404A - STOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH
69404-95700

CM35,KM3#

 1
69461 - STOPPER, BACK DOOR SIDE MALE, RH
69461-95701

CM35,KM3#

 1
69462 - STOPPER, BACK DOOR SIDE MALE, LH
69462-95701

CM35,KM3#

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-87002

CM35,KM3#

 1
69430-95702

CM35,KM3#

 1
69690 - CONTROL ASSY, BACK DOOR REMOTE
69690-95706

CM35,KM3#..STD

 1
69690-95704

CM35,KM3#

W/EMERGENCY LEVER

 1
69749E - CLAMP, BACK DOOR LOCK LINK
69749-30020

CM35,KM3#

 1
Common parts
90119-06331
90119-08544
90159-80014
90176-08032
90541-09029
90541-14005
91651-40614
91655-60818
