KM30LG-MRSW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )5K

Click highlighted areas on diagram

diagram 9099992002 9099992002 9099992003 9099992004 9099992006 9099992007 9099992008
Part # Description Qty Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008

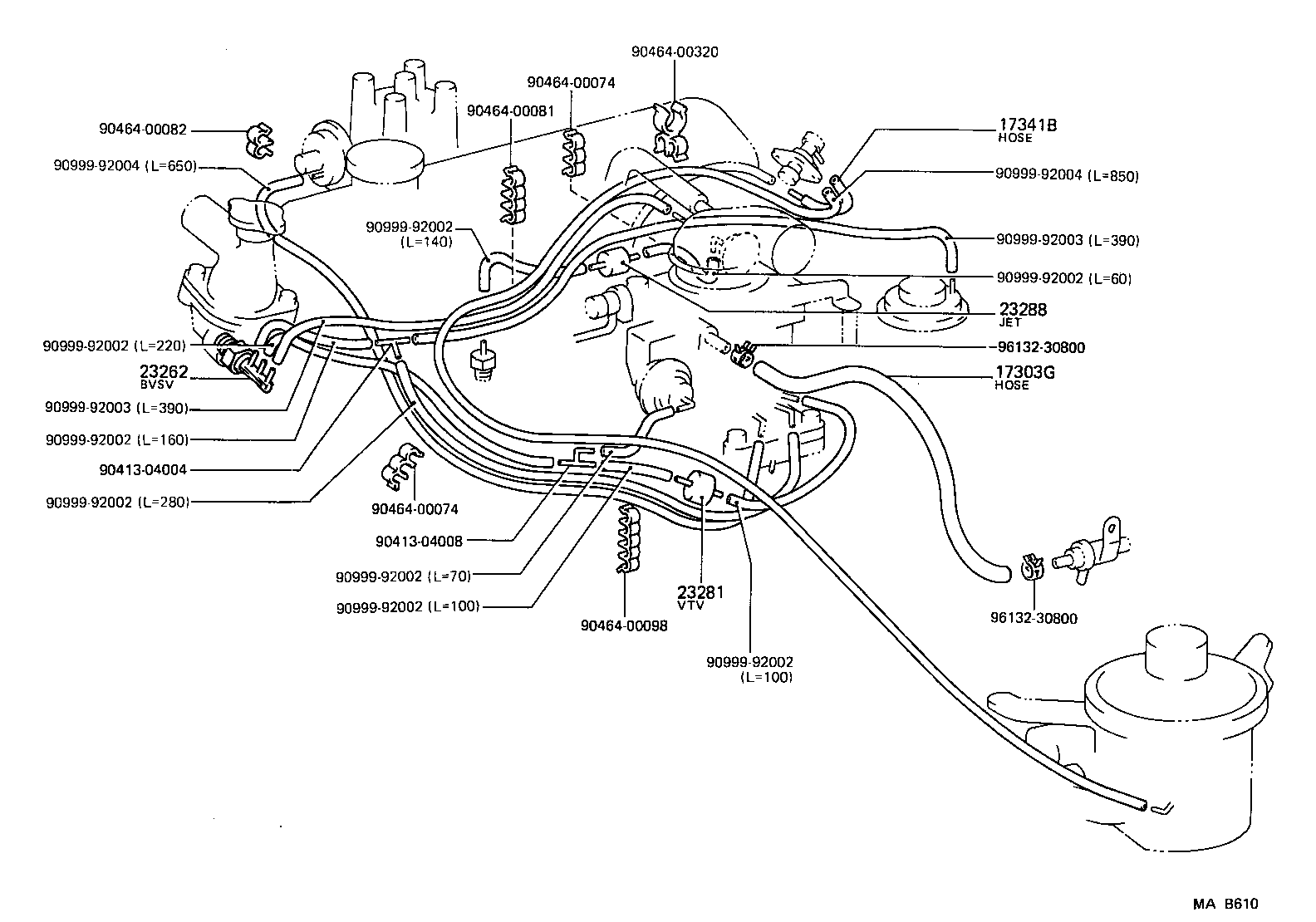

(8808- )5K

Click highlighted areas on diagram

diagram 17303G 17341B 23262 23281 23288 9041304004 9041304008 9046400074 9046400074 9046400081 9046400082 9046400098 9046400320 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9099992004 9099992004 9613230800 9613230800
Part # Description Qty Price
17303G - HOSE, NO.3(FOR AIR PIPE)
23826-13081

5K..KM3#..LHD

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-10010

5K..KM3#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05063

5K..KM3#

 1
90925-05051

5K..KM3#..02S,08S

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01019

5K..KM3#

 1
23288 - JET, NO.1
90925-04006

5K..KM3#

 1
Common parts
90413-04004
90413-04008
90464-00074
90464-00081
90464-00082
90464-00098
90464-00320
90999-92002
90999-92003
90999-92004
96132-30800

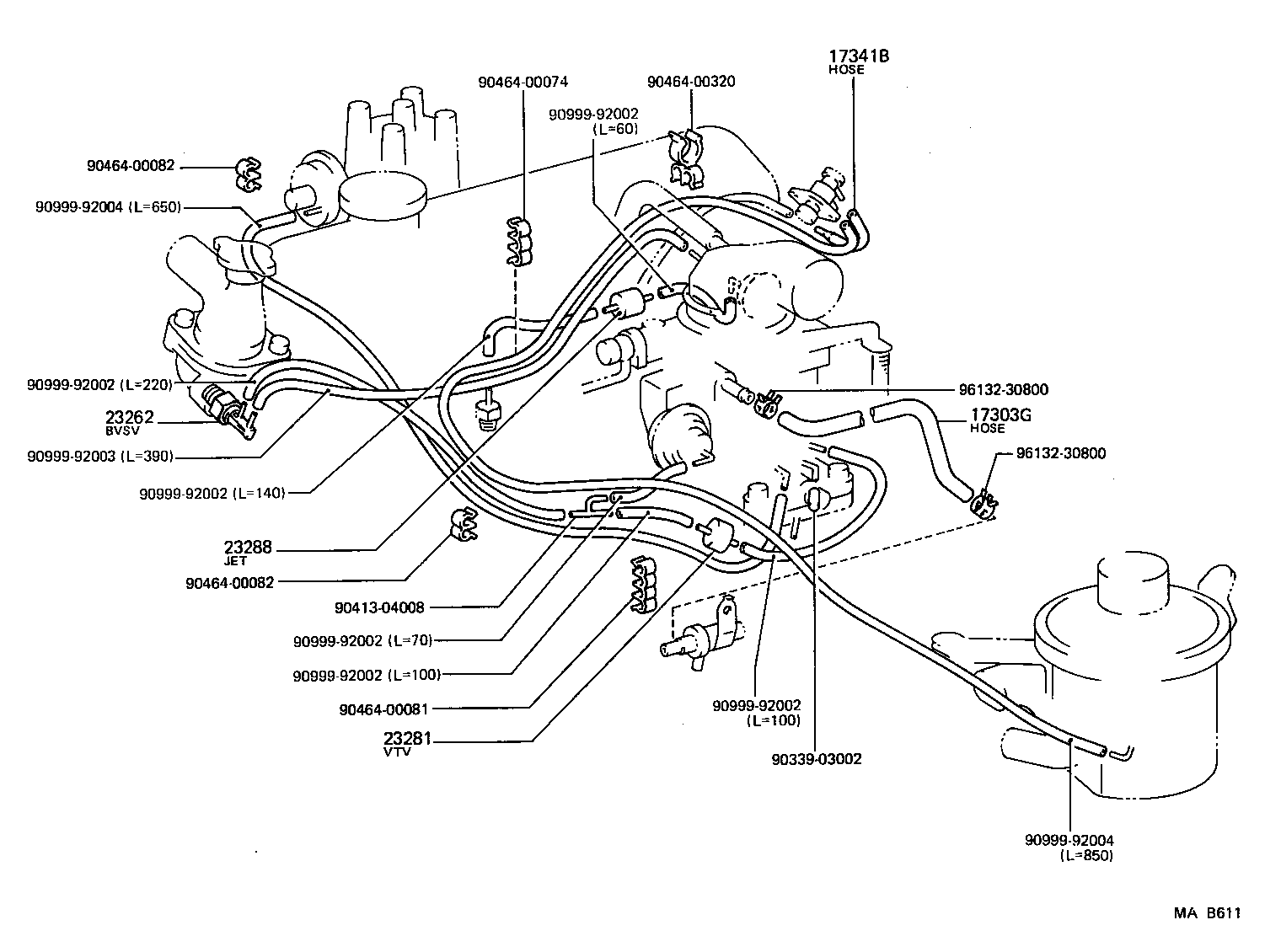

(8808-8908)5K..02S,08S

Click highlighted areas on diagram

diagram 17303G 17341B 23262 23281 23288 9033903002 9041304008 9046400074 9046400081 9046400082 9046400082 9046400320 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992004 9099992004 9613230800 9613230800
Part # Description Qty Price
17303G - HOSE, NO.3(FOR AIR PIPE)
23826-13081

5K..KM3#..LHD

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-10010

5K..KM3#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05063

5K..KM3#

 1
90925-05051

5K..KM3#..02S,08S

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01019

5K..KM3#

 1
23288 - JET, NO.1
90925-04006

5K..KM3#

 1
Common parts
90339-03002
90413-04008
90464-00074
90464-00081
90464-00082
90464-00320
90999-92002
90999-92003
90999-92004
96132-30800

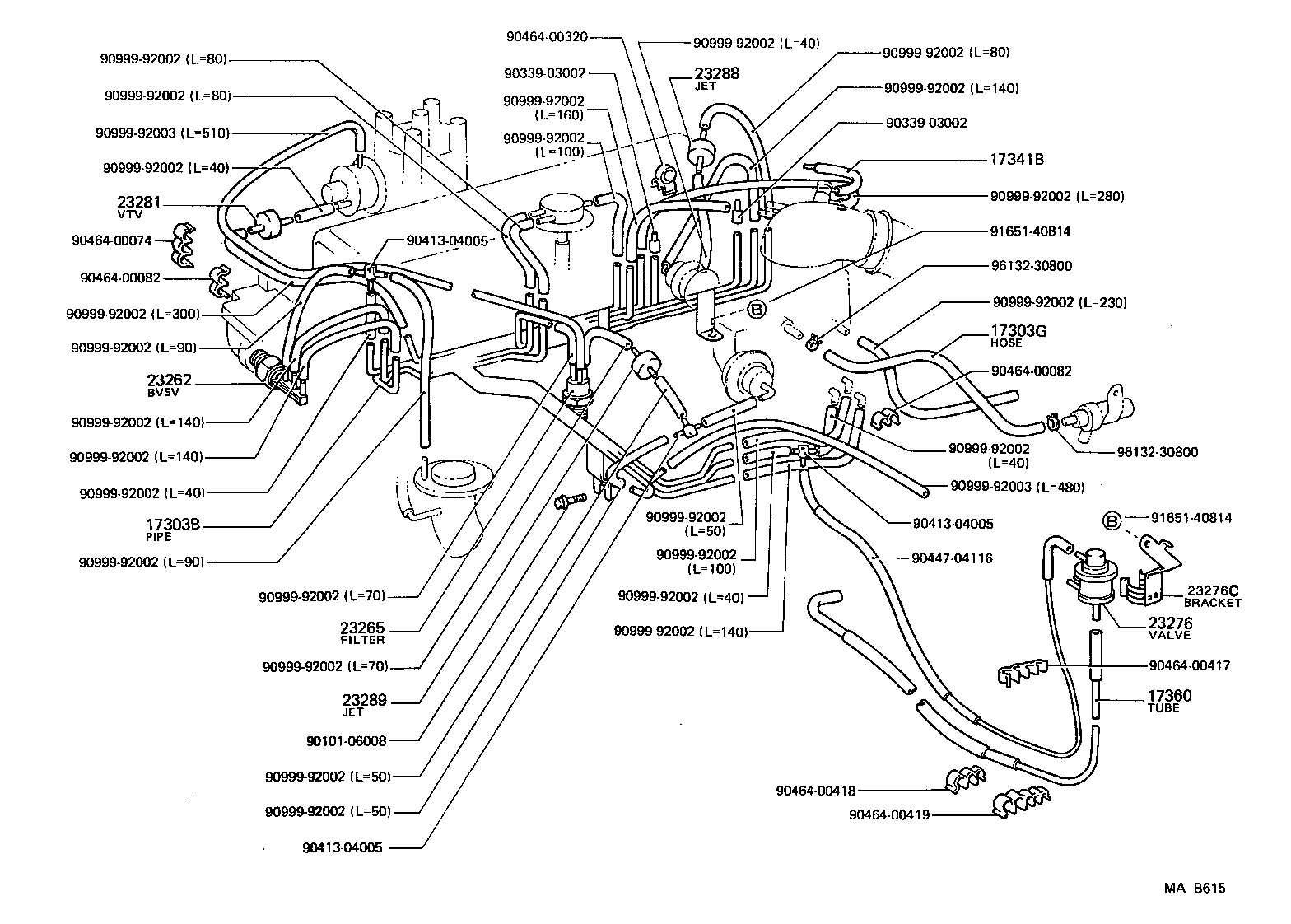

(8808- )5K

Click highlighted areas on diagram

SWITZERLAND SPEC & AUSTRIA SPEC

diagram 17303B 17303G 17341B 17360 23262 23265 23276 23276C 23281 23288 23289 9010106008 9033903002 9033903002 9041304005 9041304005 9041304005 9044704116 9046400074 9046400082 9046400082 9046400320 9046400417 9046400418 9046400419 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9165140814 9165140814 9613230800 9613230800
Part # Description Qty Price
17303G - HOSE, NO.3(FOR AIR PIPE)
23826-13081

5K..KM3#..LHD

 1
17341B - HOSE, NO.1(FOR AIR INJECTION SYSTEM)
17341-10010

5K..KM3#

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05063

5K..KM3#

 1
90925-05051

5K..KM3#..02S,08S

 1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01019

5K..KM3#

 1
23288 - JET, NO.1
90925-04006

5K..KM3#

 1
Common parts
90101-06008
90339-03002
90413-04005
90447-04116
90464-00074
90464-00082
90464-00320
90464-00417
90464-00418
90464-00419
90999-92002
90999-92003
91651-40814
96132-30800
