KM30LG-MDSW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 5K
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )5K

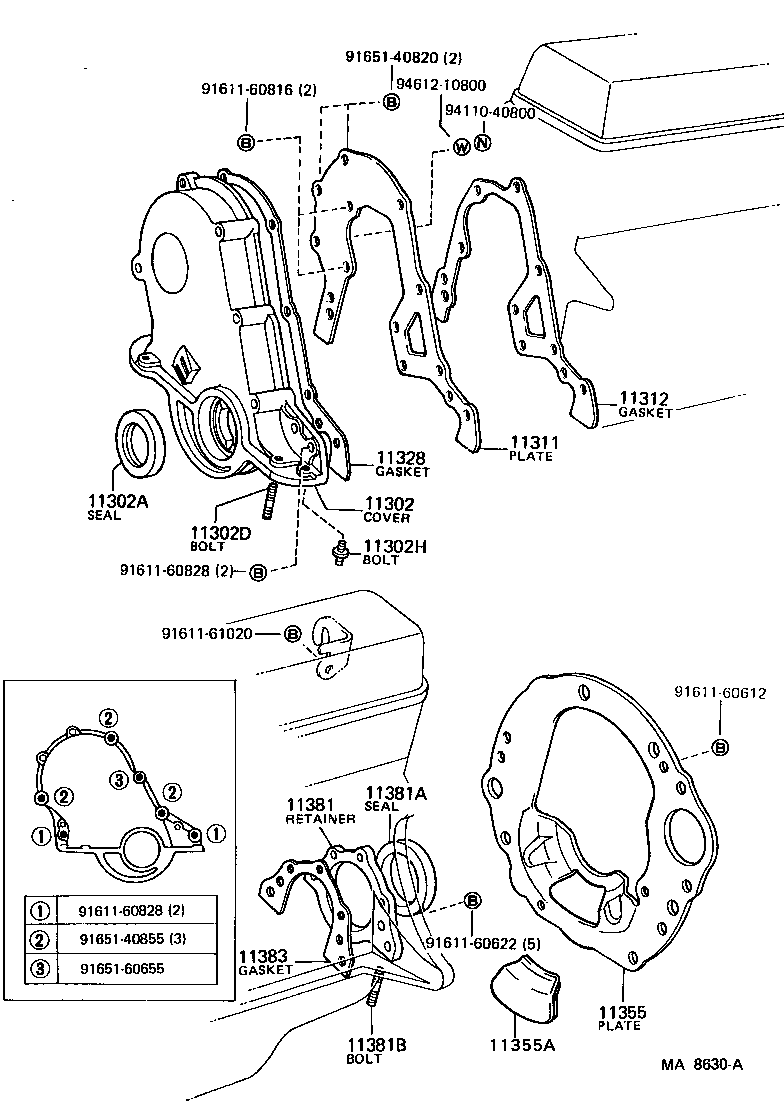

Click highlighted areas on diagram

diagram 11302 11302A 11302D 11302H 11311 11312 11328 11355 11355A 11381 11381A 11381B 11383 9161160612 9161160622 9161160816 9161160828 9161160828 9161161020 9165140820 9165140855 9165160655 9411040800 9461210800
Part # Description Qty Price
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11321-13042

5K..KM3#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-38022

5K..KM3#

 1
11302D - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06012

5K..KM3#

L=26,S=12&12

 2
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-06006

5K..KM3#

L=26.4,S=12&12

 2
11311 - PLATE, FRONT END
11311-13010

5K..KM3#

 1
11312 - GASKET, FRONT END PLATE
11312-13040

5K..KM3#

 1
11312-13030

5K..KM3#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-13011

5K..KM3#

 1
11355 - PLATE, REAR END
11355-24043

5K..KM3#

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01343

5K..KM3#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-13011

5K..KM3#

 1
11381A - SEAL, ENGINE REAR OIL
90311-70004

5K..KM3#

HTC 70 92 8.5

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06035

5K..KM3#

L=23,S=12&9

 2
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-13010

5K..KM3#

 1
Common parts
91611-60612
91611-60622
91611-60816
91611-60828
91611-61020
91651-40820
91651-40855
91651-60655
94110-40800
94612-10800
