CM36RV-MRSBEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CM36..RHD

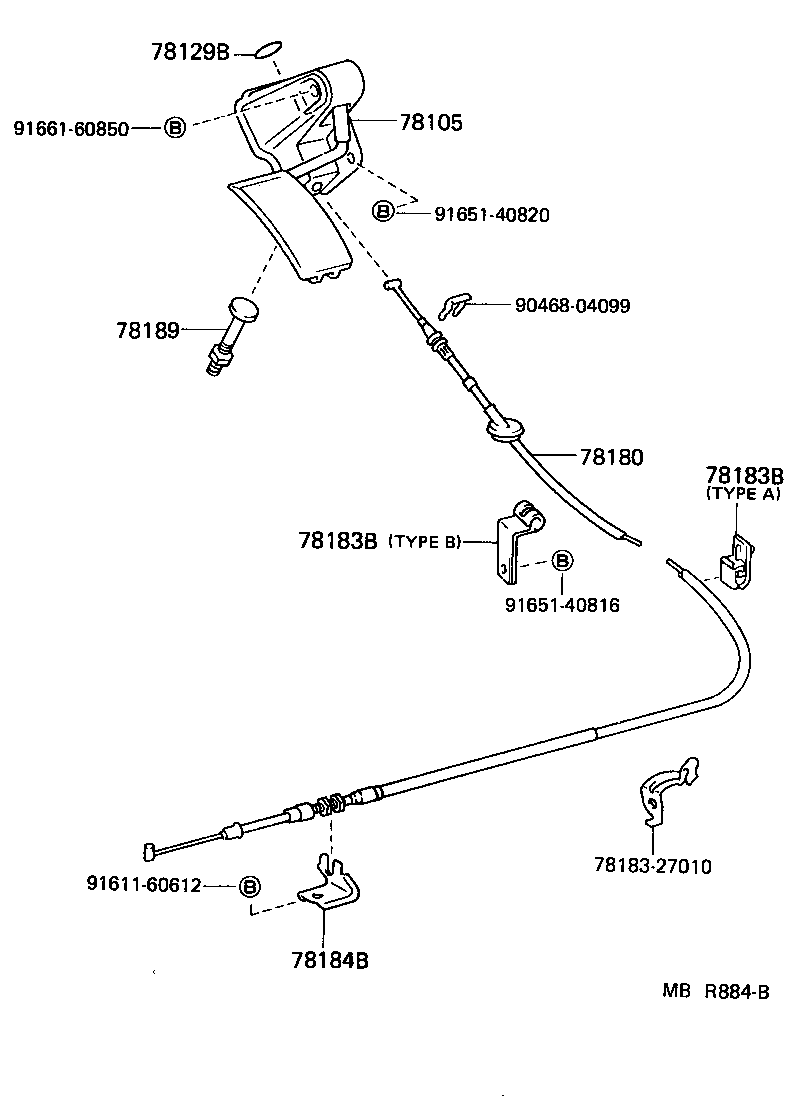

Click highlighted areas on diagram

diagram 78105 78129B 78180 7818327010 78183B 78183B 78184B 78189 9046804099 9161160612 9165140816 9165140820 9166160850
Part # Description Qty Price
78105 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
78105-95706

CM36,KM36..RHD

 1
78129B - SEAL, ACCELERATOR PEDAL ARM
78129-95J00

CM36,KM36..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-27030

CM36..RHD

 1
78150-95718

CM36..RHD

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM36..RHD

TYPE A

 1
78183-95704

CM36..RHD

TYPE A

 1
78183-95707

CM36,KM36..RHD

TYPE B

 1
78183B - CLAMP, ACCELERATOR CONTROL CABLE
78183-95705

CM36..RHD

TYPE A

 1
78183-95704

CM36..RHD

TYPE A

 1
78183-95707

CM36,KM36..RHD

TYPE B

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95704

CM3#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95702

CM3#,KM3#

 1
78208-27010

CM3#

 1
Common parts
78183-27010
90468-04099
91611-60612
91651-40816
91651-40820
91661-60850
