CM36RV-MRSBEW (1988)
Toyota Liteace Van,Wagon

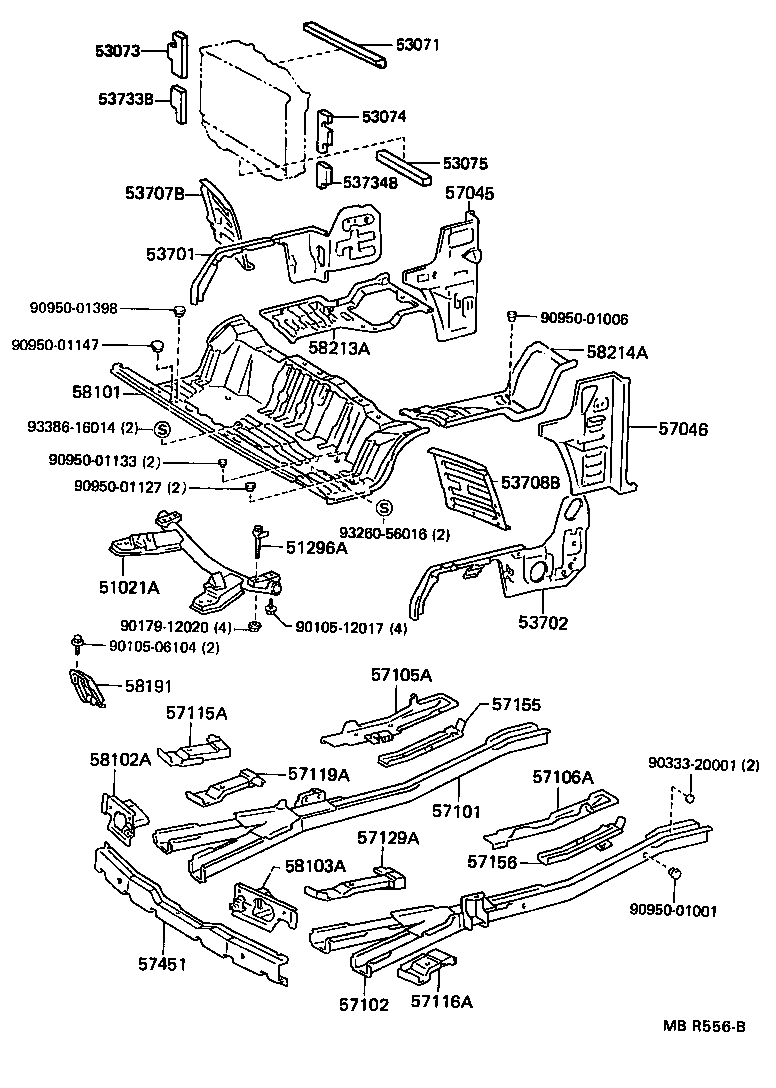

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021A - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-95708 |
CM36..02S |
1 | ||
| 51021-95708 |
CM3# |
1 | ||
| 51296A - BOLT, ENGINE FRONT SUPPORT MEMBER | ||||
| 51296-95701 |
KM36;CM36,KM30..02S,08S |
4 | ||
| 51296-95701 |
CM3#,KM3# |
4 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-95720 |
CM3# ROUGH ROAD PACKAGE |
1 | ||
| 53701-95712 |
CM3# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-95722 |
KM3#;CM36..RHD ROUGH ROAD PACKAGE |
1 | ||
| 53702-95714 |
CM3# |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-95701 |
CM3#,KM3# |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-95704 |
CM3#,KM3# |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-95705 |
CM36,KM36..RHD |
1 | ||
| 57045-95715 |
CM36,KM36..RHD ROUGH ROAD PACKAGE |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-95716 |
CM36,KM36..RHD |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-95728 |
CM36,KM36..RHD |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-95721 |
CM36,KM36..RHD |
1 | ||
| 57105A - PLATE SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57105-95704 |
CM3#,KM3# |
1 | ||
| 57106A - PLATE SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57148-95702 |
CM3#,KM3# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-95703 |
CM3#,KM3# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-95703 |
CM3#,KM3# |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-95702 |
CM3#,KM3# |
1 | ||
| 57129A - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57129-95702 |
CM3#,KM3# |
1 | ||
| 57155 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH | ||||
| 57155-95701 |
CM3#,KM3# |
1 | ||
| 57156 - REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH | ||||
| 57044-95703 |
CM3#,KM3# |
1 | ||
| 57451 - MEMBER, FRONT FLOOR CROSS | ||||
| 57408-95705 |
CM3#,KM3# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-95744 |
CM36,KM36..RHD |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-95700 |
CM3#,KM3# |
1 | ||
| 58103A - REINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH | ||||
| 58103-95704 |
CM3#,KM3# |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-95718 |
CM3#,KM3# |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58214-95708 |
CM36,KM36..RHD |
1 | ||
| Common parts | ||||
| 90105-06104 | ||||
| 90105-12017 | ||||
| 90179-12020 | ||||
| 90333-20001 | ||||
| 90950-01001 | ||||
| 90950-01006 | ||||
| 90950-01127 | ||||
| 90950-01133 | ||||
| 90950-01147 | ||||
| 90950-01398 | ||||
| 93260-56016 | ||||
| 93386-16014 | ||||

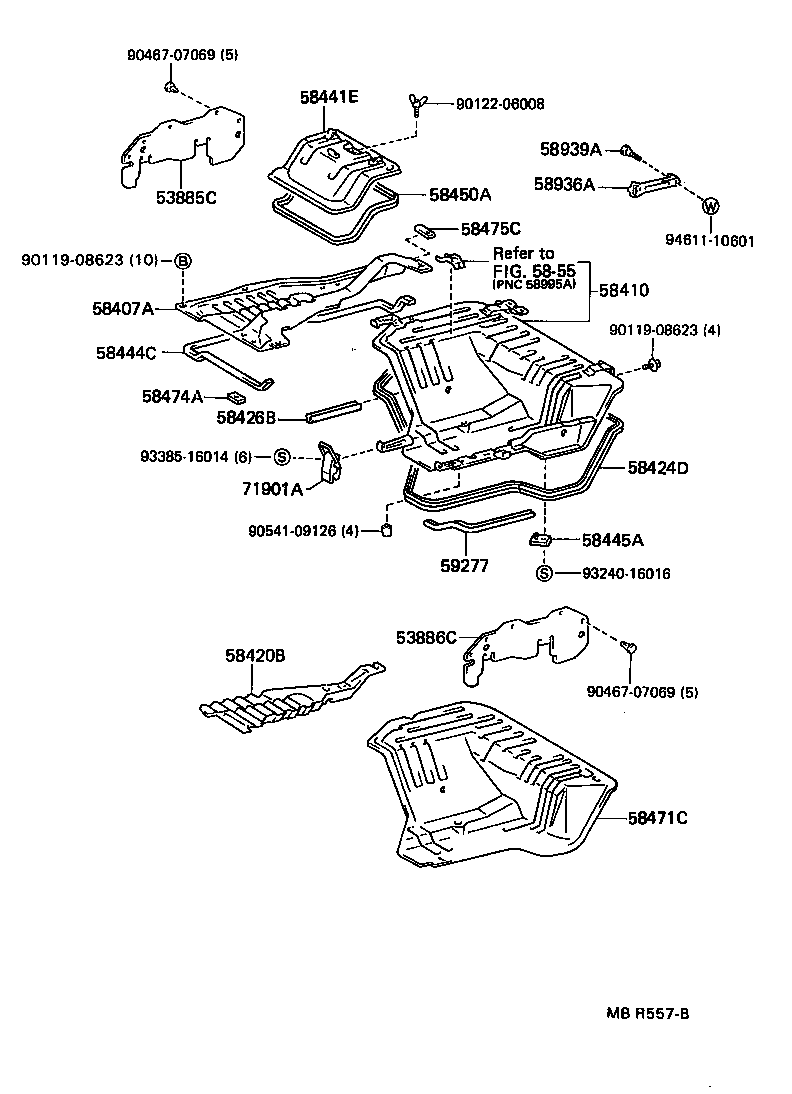

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-95704 |
CM3#,KM3# |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53885-95704 |
CM3#,KM3# |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-95707 |
CM36,KM36..RHD |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 59208-95714 |
CM36,KM36..RHD |
1 | ||
| 59208-95707 |
CM36,KM36..RHD W(CONSOLE BOX CENTER) |
1 | ||
| 58420B - SILENCER, ENGINE SERVICE HOLE COVER, NO.2 | ||||
| 58472-95711 |
CM3#,KM3# |
1 | ||
| 58424D - PACKING, ENGINE COVER | ||||
| 58424-95701 |
CM36,KM36..RHD |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95700 |
CM3#,KM3# |
1 | ||
| 58441E - COVER, BATTERY SERVICE HOLE | ||||
| 58441-95714 |
CM3# COLD SPEC OR W(95D31R BATTERY) |
1 | ||
| 58441-95713 |
CM3#,KM3# |
1 | ||
| 58441-95714 |
CM3# W(95D31R BATTERY) |
1 | ||
| 58444C - PACKING, ENGINE SUB COVER, NO.1 | ||||
| 58444-95701 |
CM3#,KM3# |
1 | ||
| 58445A - CUSHION, ENGINE SERVICE HOLE COVER | ||||
| 58445-95400 |
CM3#,KM3# |
1 | ||
| 58450A - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58449-95701 |
CM3#,KM3# |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-95708 |
CM36,KM36..RHD |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-95706 |
CM3#,KM3# |
1 | ||
| 58475C - PACKING, ENGIN SUB COVER, NO.3 | ||||
| 58475-95705 |
CM3#,KM3# |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58402-9571403 |
CM3#,KM3# GRAY,TRIM1# |
1 | ||
| 58939A - SCREW, ENGINE SERVICE HOLE COVER SUPPORT BAND | ||||
| 58939-95J00 |
CM3#,KM3# |
1 | ||
| 59277 - PROTECTOR, ENGINE MAIN COVER | ||||
| 59277-95700 |
CM36,KM36..RHD |
1 | ||
| 59277-95703 |
CM3#,KM3# |
1 | ||
| 59277-95702 |
CM36,KM36..RHD |
1 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-95703 |
CM3#,KM3# RH |
1 | ||
| 71902-95706 |
CM36,KM36..RHD CTR |
1 | ||
| 71902-95705 |
CM36,KM36..RHD LH |
1 | ||
| Common parts | ||||
| 90119-08623 | ||||
| 90122-06008 | ||||
| 90467-07069 | ||||
| 90541-09126 | ||||
| 93240-16016 | ||||
| 93385-16014 | ||||
| 94611-10601 | ||||
| Linked diagrams | ||||
| 5855 | ||||
