Toyota Liteace van,wagon CM36 STARTER

CM36LV-QRSBEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992

Engine 2C

Transmission 5H MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )2C

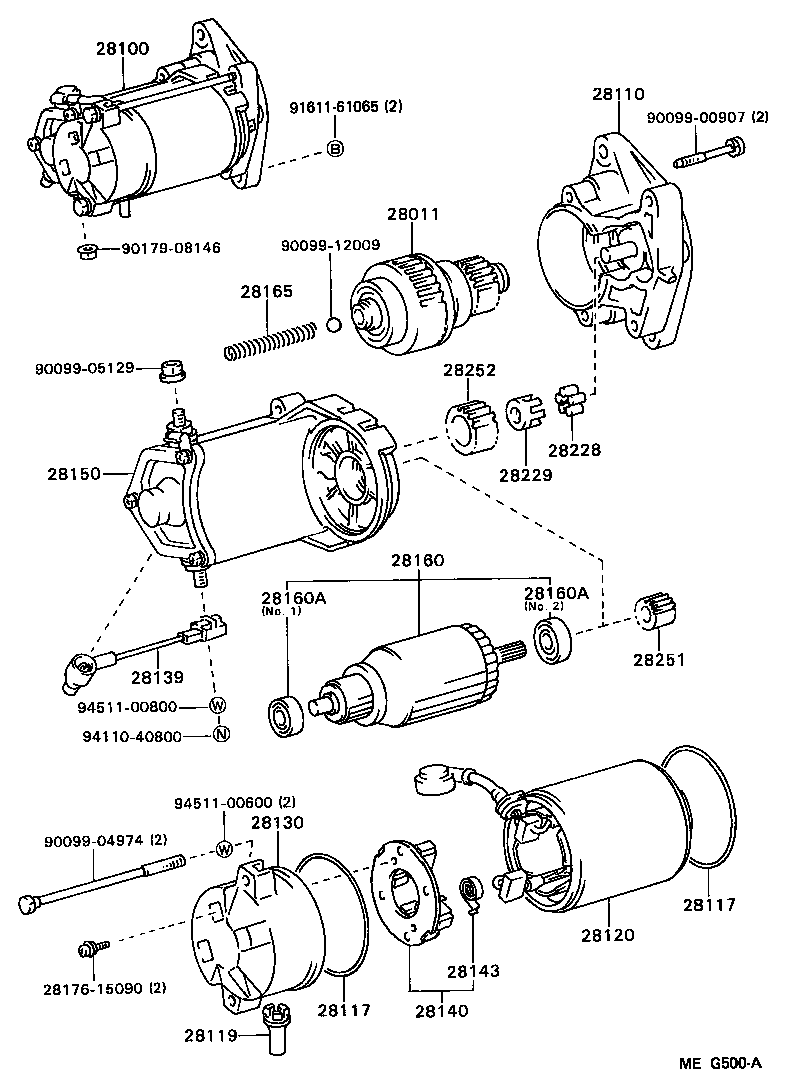

Click highlighted areas on diagram

12V 1.4KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-64010	2C..CM3#	08/1988 - 01/1992	1
28100 - STARTER ASSY
28100-64040	2C..CM3# 12V 2.2KW,COLD SPEC	08/1988 - 01/1992	1
28100-64100	2C..CM3# 12V 1.4KW	08/1988 - 01/1992	1
28110 - HOUSING ASSY, STARTER DRIVE
28115-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28110-64070	2C..CM3#	08/1988 - 01/1992	1
28117 - RUBBER(FOR STARTER YOKE)
90099-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
90099-14064	2C..CM3#	08/1988 - 01/1992	2
28117 - RUBBER(FOR STARTER YOKE)
90099-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
90099-14064	2C..CM3#	08/1988 - 01/1992	2
28119 - COVER, STARTER END FRAME
28199-77090	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28199-74100	2C..CM3#	01/1991 - 01/1992	1
28199-72020	2C..CM3#	08/1988 - 01/1991	1
28120 - YOKE ASSY, STARTER
28120-15090	2C..CM3#	08/1988 - 01/1992	1
28120-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-64100	2C..CM3#	08/1988 - 01/1991	1
28130-64110	2C..CM3#	01/1991 - 01/1992	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-64071	2C..CM3#	01/1991 - 01/1992	1
28139-64010	2C..CM3#	08/1988 - 10/1990	1
28139-64010	2C..CM3# COLD SPEC	10/1990 - 01/1992	1
28139-64070	2C..CM3#	10/1990 - 01/1991	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28140-15090	2C..CM3#	08/1988 - 01/1992	1
28143 - SPRING, STARTER BRUSH
90099-17115	2C..CM3# COLD SPEC	08/1988 - 01/1992	4
90099-17112	2C..CM3#	08/1988 - 01/1992	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-64070	2C..CM3#	08/1988 - 10/1990	1
28150-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28150-64100	2C..CM3#	10/1990 - 01/1991	1
28150-64101	2C..CM3#	01/1991 - 01/1992	1
28160 - ARMATURE ASSY, STARTER
28160-15090	2C..CM3#	08/1988 - 08/1989	1
28160-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28160-15091	2C..CM3#	08/1989 - 01/1992	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2C..CM3# NO.2	08/1988 - 01/1992	1
90099-10144	2C..CM3# NO.1	08/1988 - 01/1992	1
28253-54070	2C..CM3# COLD SPEC,NO.1	08/1988 - 01/1992	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2C..CM3# NO.2	08/1988 - 01/1992	1
90099-10144	2C..CM3# NO.1	08/1988 - 01/1992	1
28253-54070	2C..CM3# COLD SPEC,NO.1	08/1988 - 01/1992	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	2C..CM3#	08/1988 - 01/1992	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	2C..CM3#	08/1988 - 01/1992	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	2C..CM3#	08/1988 - 01/1992	1
28251 - PINION, STARTER DRIVE
28251-15090	2C..CM3#	08/1988 - 01/1992	1
28251-54070	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28252 - GEAR, STARTER IDLE
28254-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28254-54070	2C..CM3#	08/1988 - 01/1992	1
Common parts
28176-15090
90099-00907
90099-04974
90099-05129
90099-12009
90179-08146
91611-61065
94110-40800
94511-00600
94511-00800

(8808- )2C

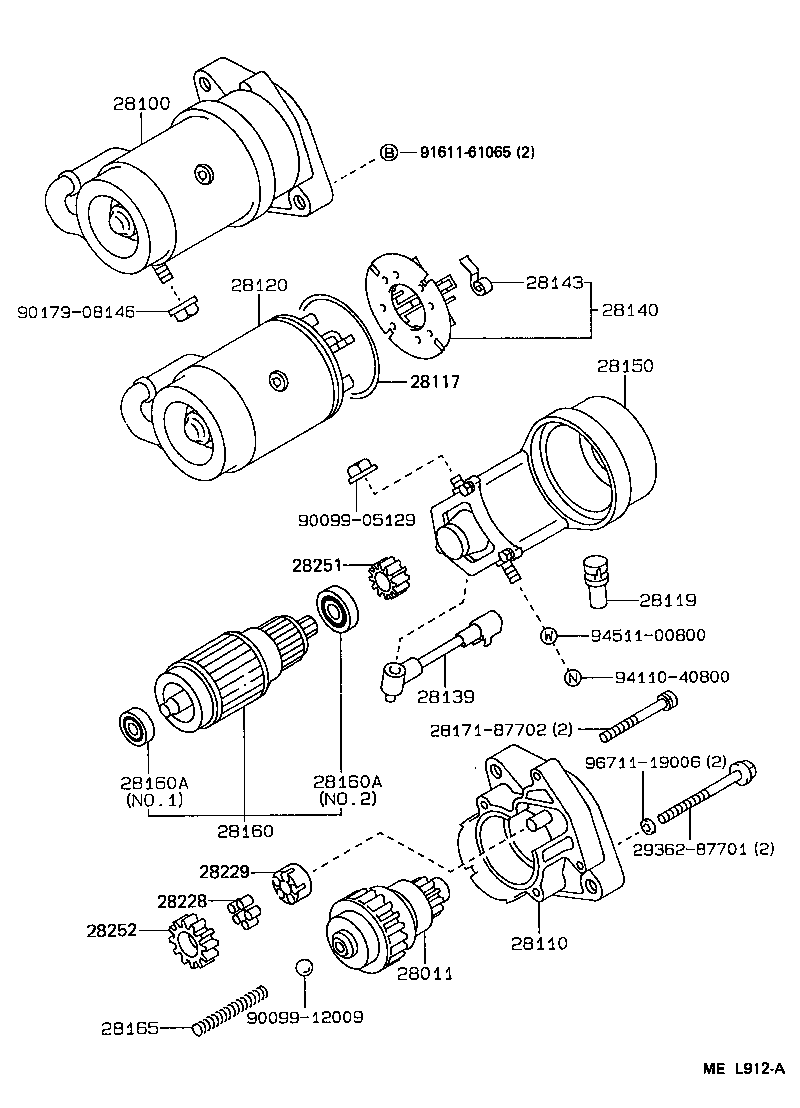

Click highlighted areas on diagram

12V 2.2KW

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-64010	2C..CM3#	08/1988 - 01/1992	1
28100 - STARTER ASSY
28100-64040	2C..CM3# 12V 2.2KW,COLD SPEC	08/1988 - 01/1992	1
28100-64100	2C..CM3# 12V 1.4KW	08/1988 - 01/1992	1
28110 - HOUSING ASSY, STARTER DRIVE
28115-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28110-64070	2C..CM3#	08/1988 - 01/1992	1
28117 - RUBBER(FOR STARTER YOKE)
90099-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
90099-14064	2C..CM3#	08/1988 - 01/1992	2
28119 - COVER, STARTER END FRAME
28199-77090	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28199-74100	2C..CM3#	01/1991 - 01/1992	1
28199-72020	2C..CM3#	08/1988 - 01/1991	1
28120 - YOKE ASSY, STARTER
28120-15090	2C..CM3#	08/1988 - 01/1992	1
28120-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28139 - WIRE, LEAD, NO.1(FOR STARTER)
28139-64071	2C..CM3#	01/1991 - 01/1992	1
28139-64010	2C..CM3#	08/1988 - 10/1990	1
28139-64010	2C..CM3# COLD SPEC	10/1990 - 01/1992	1
28139-64070	2C..CM3#	10/1990 - 01/1991	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28140-15090	2C..CM3#	08/1988 - 01/1992	1
28143 - SPRING, STARTER BRUSH
90099-17115	2C..CM3# COLD SPEC	08/1988 - 01/1992	4
90099-17112	2C..CM3#	08/1988 - 01/1992	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-64070	2C..CM3#	08/1988 - 10/1990	1
28150-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28150-64100	2C..CM3#	10/1990 - 01/1991	1
28150-64101	2C..CM3#	01/1991 - 01/1992	1
28160 - ARMATURE ASSY, STARTER
28160-15090	2C..CM3#	08/1988 - 08/1989	1
28160-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28160-15091	2C..CM3#	08/1989 - 01/1992	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2C..CM3# NO.2	08/1988 - 01/1992	1
90099-10144	2C..CM3# NO.1	08/1988 - 01/1992	1
28253-54070	2C..CM3# COLD SPEC,NO.1	08/1988 - 01/1992	1
28160A - BEARING, STARTER ARMATURE
90099-10143	2C..CM3# NO.2	08/1988 - 01/1992	1
90099-10144	2C..CM3# NO.1	08/1988 - 01/1992	1
28253-54070	2C..CM3# COLD SPEC,NO.1	08/1988 - 01/1992	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	2C..CM3#	08/1988 - 01/1992	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	2C..CM3#	08/1988 - 01/1992	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	2C..CM3#	08/1988 - 01/1992	1
28251 - PINION, STARTER DRIVE
28251-15090	2C..CM3#	08/1988 - 01/1992	1
28251-54070	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28252 - GEAR, STARTER IDLE
28254-64040	2C..CM3# COLD SPEC	08/1988 - 01/1992	1
28254-54070	2C..CM3#	08/1988 - 01/1992	1
Common parts
28171-87702
29362-87701
90099-05129
90099-12009
90179-08146
91611-61065
94110-40800
94511-00800
96711-19006

CM36LV-QRSBEW (1988)

(8808- )2C

(8808- )2C
