CM36LV-MRSBFEW (1988)
Toyota Liteace Van,Wagon
Production
Aug 1988
-
Jan 1992
Engine
2C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

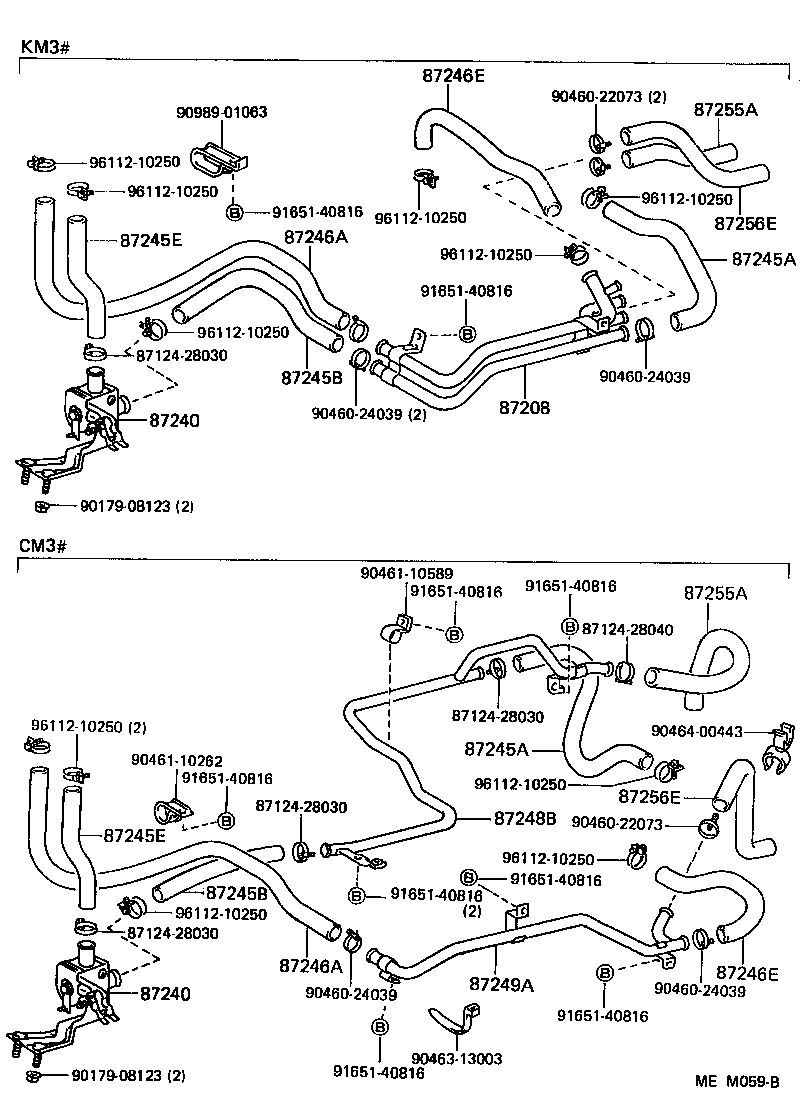

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
FRONT HEATER PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95712 |
CM3#,KM3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95712 |
CM3#,KM3# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95736 |
CM3# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95736 |
CM3# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30240 |
CM3#..LHD *H,L=240 |
1 | ||
| 99556-30260 |
CM3# *H,L=260 |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 99556-30240 |
CM3#..LHD *H,L=240 |
1 | ||
| 99556-30260 |
CM3# *H,L=260 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30210 |
CM3#,KM3# *H,L=210 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30210 |
CM3#,KM3# *H,L=210 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30700 |
CM3# L=700 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30700 |
CM3# L=700 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95739 |
CM3# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95739 |
CM3# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-95721 |
CM3# |
1 | ||
| 87208-95721 |
CM36 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95747 |
CM3# |
1 | ||
| 87208-95747 |
CM36 |
1 | ||
| Common parts | ||||
| 87124-28030 | ||||
| 87124-28040 | ||||
| 90179-08123 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90461-10262 | ||||
| 90461-10589 | ||||
| 90463-13003 | ||||
| 90464-00443 | ||||
| 90989-01063 | ||||
| 91651-40816 | ||||
| 96112-10250 | ||||

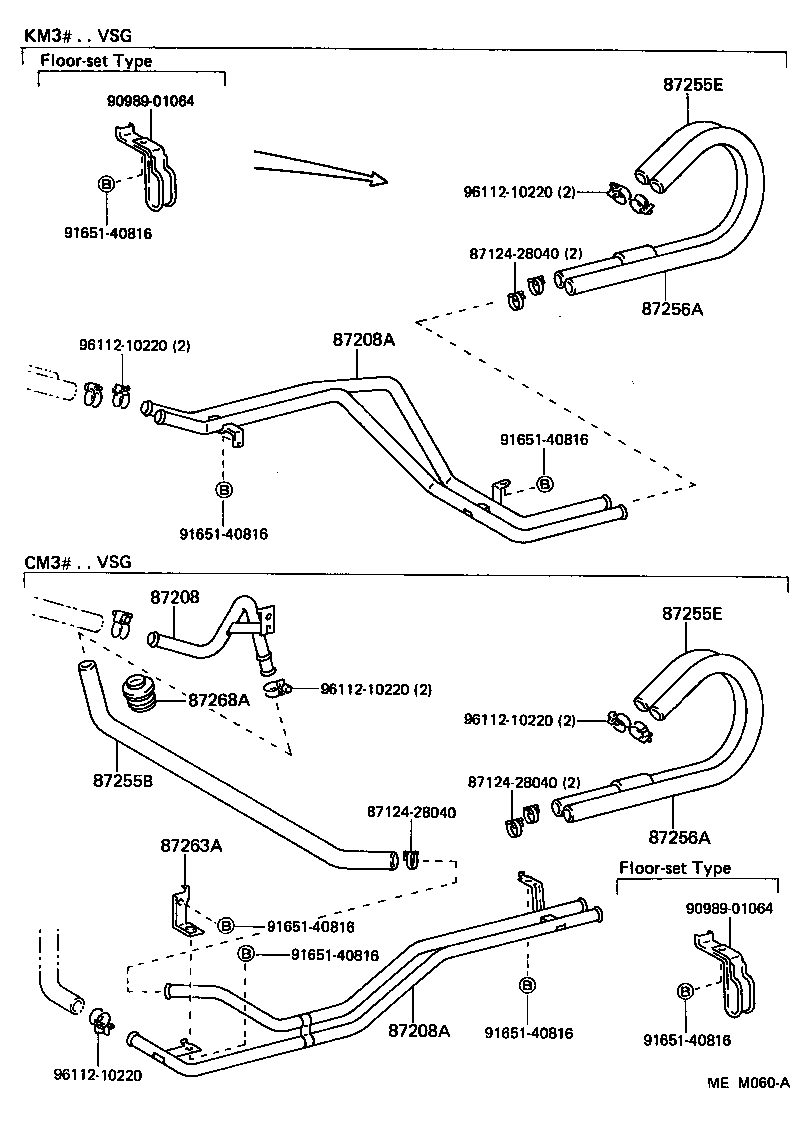

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
REAR HEATER PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-28040 | ||||
| 90989-01064 | ||||
| 91651-40816 | ||||
| 96112-10220 | ||||
