CM36LV-MRSBFEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

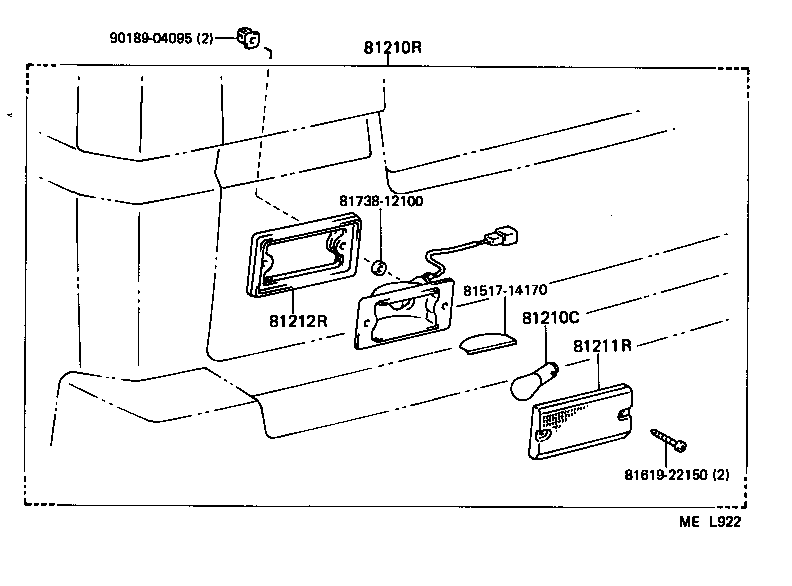

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81212R 8151714170 8161922150 8173812100 9018904095
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

CM3#,KM3#

12V 21W

 1
81210R - LAMP ASSY, REAR FOG
81210-95701

CM3#,KM3#..LHD

 1
81211R - LENS, REAR FOG LAMP
81211-20030

CM3#,KM3#

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81214-95701

CM3#,KM3#..LHD

 1
Common parts
81517-14170
81619-22150
81738-12100
90189-04095
