CM36LV-MRSBEW (1988)

Toyota Liteace Van,Wagon

Production Aug 1988 - Jan 1992
Engine 2C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

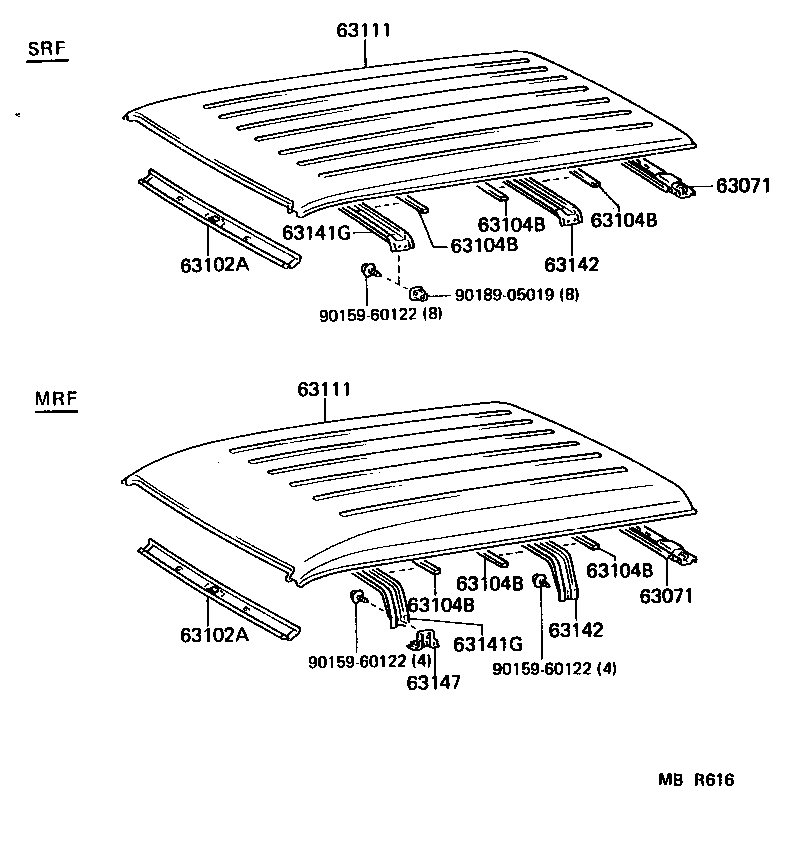

Click highlighted areas on diagram

diagram 63071 63071 63102A 63102A 63104B 63104B 63104B 63104B 63104B 63104B 63111 63111 63141G 63141G 63142 63142 63147 9015960122 9015960122 9015960122 9018905019
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-95703

CM36,KM3#..STD

 1
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-95703

CM36,KM3#..STD

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM36,KM3#..STD

 1
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-95706

CM36,KM3#..STD

 1
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36..02S

 4
63357-95701

CM36,KM36..02S

 8
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36..02S

 4
63357-95701

CM36,KM36..02S

 8
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36..02S

 4
63357-95701

CM36,KM36..02S

 8
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36..02S

 4
63357-95701

CM36,KM36..02S

 8
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36..02S

 4
63357-95701

CM36,KM36..02S

 8
63104B - CUSHION, ROOF TO ROOF REINFORCEMENT
63357-95701

CM36,KM36..02S

 4
63357-95701

CM36,KM36..02S

 8
63111 - PANEL, ROOF
63111-95712

CM3#,KM3#..MRF

 1
63111 - PANEL, ROOF
63111-95712

CM3#,KM3#..MRF

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95710

CM36,KM3#..MRF..STD

 1
63103-95712

KM36..MRF..4F..02S;CM36,KM36..LHD..V4D..(4H,5F,5H)

W(ROOM SEPARATOR)

 1
63103-95712

KM36..MRF..4F..02S;CM36,KM36..LHD..(4H,5F,5H)

W(ROOM SEPARATOR)

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-95710

CM36,KM3#..MRF..STD

 1
63103-95712

KM36..MRF..4F..02S;CM36,KM36..LHD..V4D..(4H,5F,5H)

W(ROOM SEPARATOR)

 1
63103-95712

KM36..MRF..4F..02S;CM36,KM36..LHD..(4H,5F,5H)

W(ROOM SEPARATOR)

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95705

CM3#,KM3#..MRF

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-95705

CM3#,KM3#..MRF

 1
63147 - BRACKET, ROOF PANEL REINFORCEMENT
63147-95703

CM3#,KM3#..LHD..MRF

RH

 1
Common parts
90159-60122
90189-05019
