CM35RV-MRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

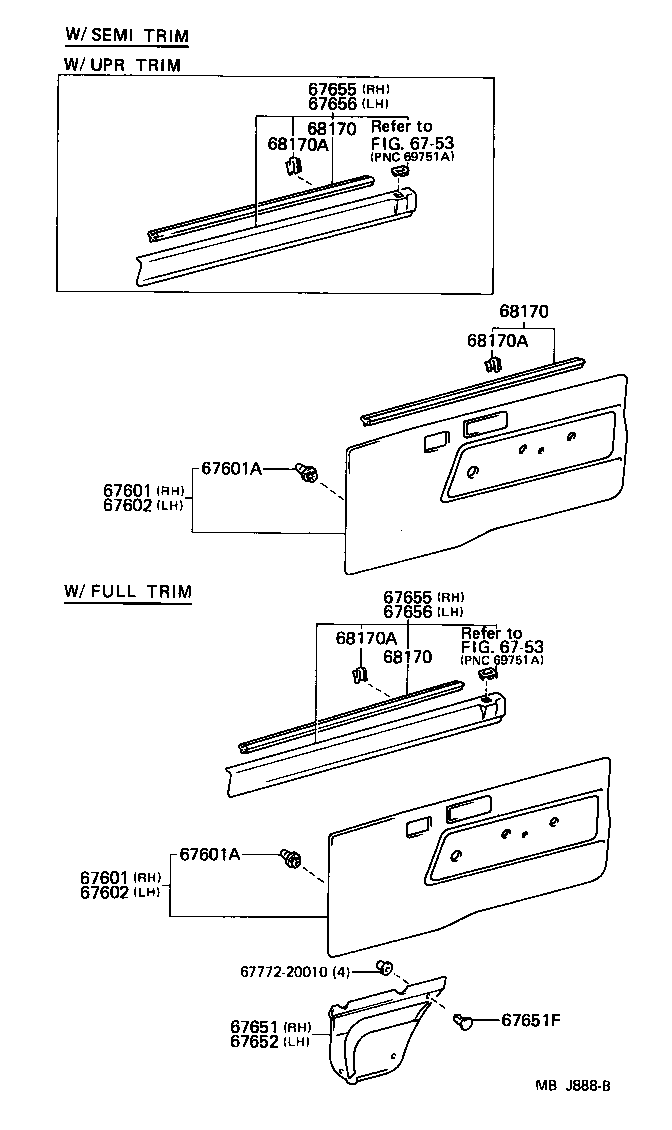

ILLUST NO. 2 OF 2(8510-8708)

Click highlighted areas on diagram

diagram 6753 6753 67601 67601 67601A 67601A 67602 67602 67651 67651F 67652 67655 67655 67656 67656 6777220010 68170 68170 68170 68170A 68170A 68170A
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9575806

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67610-9576306

CM35,KM31,36

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G1606

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G0806

CM35,KM36..RHD

BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9575806

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67610-9576306

CM35,KM31,36

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G1606

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G0806

CM35,KM36..RHD

BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM35,KM3#

 26
67771-95J09

CM35,KM3#

TYPE B

 2
67771-16020

CM35,KM3#

TYPE A

 11
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM35,KM3#

 26
67771-95J09

CM35,KM3#

TYPE B

 2
67771-16020

CM35,KM3#

TYPE A

 11
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9574606

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
67620-9574806

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67620-9574606

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9574606

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
67620-9574806

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67620-9574606

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67650-9570306

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67650-9570306

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67656 - GARNISH, DOOR TRIM, LH
67660-9570406

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67656 - GARNISH, DOOR TRIM, LH
67660-9570406

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM35,KM3#

RH(FULL TRIM)

 1
68172-95706

CM35,KM36..02S

LH

 1
68171-95706

CM35,KM36..02S

RH

 1
68172-95707

CM35,KM3#

LH(FULL TRIM)

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM35,KM3#

RH(FULL TRIM)

 1
68172-95706

CM35,KM36..02S

LH

 1
68171-95706

CM35,KM36..02S

RH

 1
68172-95707

CM35,KM3#

LH(FULL TRIM)

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM35,KM3#

RH(FULL TRIM)

 1
68172-95706

CM35,KM36..02S

LH

 1
68171-95706

CM35,KM36..02S

RH

 1
68172-95707

CM35,KM3#

LH(FULL TRIM)

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM35,KM3#

 14
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM35,KM3#

 14
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM35,KM3#

 14
Common parts
67772-20010
Linked diagrams
6753

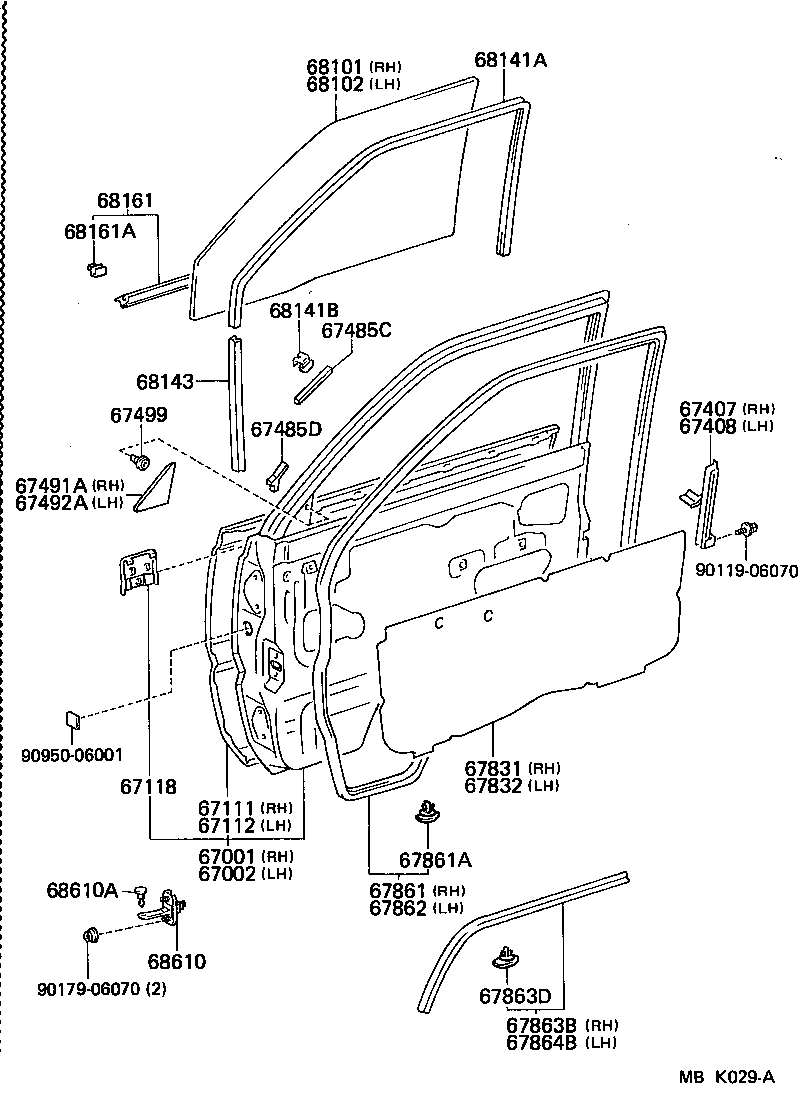

ILLUST NO. 1 OF 2(8510- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67118 67407 67408 67485C 67485D 67491A 67492A 67499 67831 67832 67861 67861A 67862 67863B 67863D 67864B 68101 68102 68141A 68141B 68143 68161 68161A 68610 68610A 9011906070 9017906070 9095006001
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-95730

CM35,KM3#..STD

W/FR PILLAR GARNISH

 1
67001-95729

CM35,KM36..02S

 1
67001-95734

CM35,KM36..02S

 1
67001-95735

CM35,KM3#..STD

W/FR PILLAR GARNISH

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-95729

CM35,KM36..02S

 1
67002-95739

CM35,KM3#..STD

W/FR PILLAR GARNISH

 1
67002-95731

CM35,KM3#..STD

W/FR PILLAR GARNISH

 1
67002-95737

CM35,KM36..02S

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-95716

CM35,KM3#

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-95713

CM35,KM3#

 1
67118 - RETAINER, OUTER MIRROR
67119-95700

CM35,KM3#

LH

 1
67118-95700

CM35,KM3#

RH

 1
67407 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-95700

CM35,KM3#

 1
67408 - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-95700

CM35,KM3#

 1
67485C - SEAL, FRONT DOOR BRACKET, NO.1
67485-95J01

CM35,KM3#

 2
67485D - SEAL, FRONT DOOR BRACKET, NO.2
67485-95700

CM35,KM3#

 2
67485-95701

CM35,KM3#

 2
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-95700

CM35,KM3#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-95700

CM35,KM3#

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67772-95J01

CM35,KM3#

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-95703

CM35,KM3#

 1
67831-95704

CM35,KM3#

W/SPEAKER

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-95700

CM35,KM3#

W/SPEAKER

 1
67831-95703

CM35,KM3#

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-95703

CM35,KM3#

 1
67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP)
67868-89101

CM35,KM3#

RH

 1
67867-89103

CM35,KM3#

LH

 1
67868-95700

CM35,KM3#

LH

 1
67867-95700

CM35,KM3#

RH

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-95703

CM35,KM3#

 1
67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH
67863-95700

CM35,KM3#

 1
67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67867-95700

CM35,KM3#

RH

 1
67868-95700

CM35,KM3#

LH

 1
67867-89103

CM35,KM3#

LH

 1
67868-89101

CM35,KM3#

RH

 1
67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH
67864-95700

CM35,KM3#

 1
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-95705

CM35,KM3#

*TEM,T=4.0,*TEM,T=4.0

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-95705

CM35,KM3#

*TEM,T=4.0,*TEM,T=4.0

 1
68141A - RUN, FRONT DOOR GLASS, UPPER
68141-95706

CM35,KM3#

 2
68141B - CLIP, DOOR GLASS RUN
62367-10010

CM35,KM3#

 2
68143 - RUN, FRONT DOOR GLASS, LOWER
68143-95704

CM35,KM3#

L=394

 2
68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER
68160-95701

CM35,KM3#

 2
68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68211-30080

CM35,KM3#

 14
68610 - CHECK ASSY, FRONT DOOR
68610-95701

CM35,KM3#

 2
68610A - PIN(FOR FRONT DOOR CHECK)
68617-90A00

CM35,KM3#

 2
Common parts
90119-06070
90179-06070
90950-06001

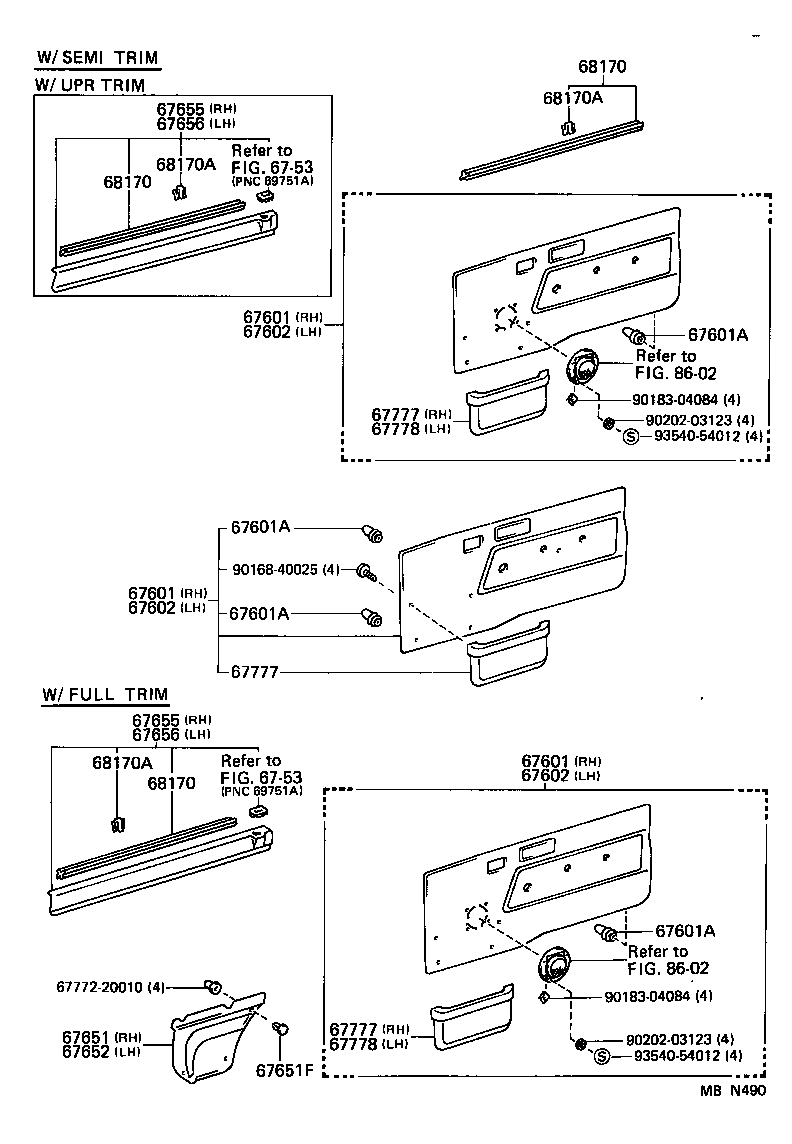

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 6753 6753 67601 67601 67601 67601A 67601A 67601A 67601A 67602 67602 67602 67651 67651F 67652 67655 67655 67656 67656 6777220010 67777 67777 67777 67778 67778 68170 68170 68170 68170A 68170A 68170A 8602 8602 9016840025 9018304084 9018304084 9020203123 9020203123 9354054012 9354054012
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9575806

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67610-9576306

CM35,KM31,36

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G1606

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G0806

CM35,KM36..RHD

BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9575806

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67610-9576306

CM35,KM31,36

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G1606

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G0806

CM35,KM36..RHD

BROWN,TRIM4#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-9575806

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67610-9576306

CM35,KM31,36

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G1606

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67610-95G0806

CM35,KM36..RHD

BROWN,TRIM4#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM35,KM3#

 26
67771-95J09

CM35,KM3#

TYPE B

 2
67771-16020

CM35,KM3#

TYPE A

 11
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM35,KM3#

 26
67771-95J09

CM35,KM3#

TYPE B

 2
67771-16020

CM35,KM3#

TYPE A

 11
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM35,KM3#

 26
67771-95J09

CM35,KM3#

TYPE B

 2
67771-16020

CM35,KM3#

TYPE A

 11
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16020

CM35,KM3#

 26
67771-95J09

CM35,KM3#

TYPE B

 2
67771-16020

CM35,KM3#

TYPE A

 11
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9574606

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
67620-9574806

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67620-9574606

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9574606

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
67620-9574806

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67620-9574606

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-9574606

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
67620-9574806

CM35,KM36..RHD

W/AM FM RADIO,BROWN,BROWN,TRIM4#

 1
67620-9574606

CM35,KM31,36

BROWN,BROWN,TRIM4#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67650-9570306

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67655 - GARNISH, FRONT DOOR TRIM, RH
67650-9570306

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67656 - GARNISH, DOOR TRIM, LH
67660-9570406

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67656 - GARNISH, DOOR TRIM, LH
67660-9570406

CM35,KM3#

BROWN,BROWN,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67778-2203030

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67778-2203030

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
67777 - POCKET, FRONT DOOR TRIM, RH
67778-2203030

CM35,KM36..RHD

BROWN,BROWN,TRIM4#

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM35,KM3#

RH(FULL TRIM)

 1
68172-95706

CM35,KM36..02S

LH

 1
68171-95706

CM35,KM36..02S

RH

 1
68172-95707

CM35,KM3#

LH(FULL TRIM)

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM35,KM3#

RH(FULL TRIM)

 1
68172-95706

CM35,KM36..02S

LH

 1
68171-95706

CM35,KM36..02S

RH

 1
68172-95707

CM35,KM3#

LH(FULL TRIM)

 1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68171-95707

CM35,KM3#

RH(FULL TRIM)

 1
68172-95706

CM35,KM36..02S

LH

 1
68171-95706

CM35,KM36..02S

RH

 1
68172-95707

CM35,KM3#

LH(FULL TRIM)

 1
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM35,KM3#

 14
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM35,KM3#

 14
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-12080

CM35,KM3#

 14
Common parts
67772-20010
90168-40025
90183-04084
90202-03123
93540-54012
Linked diagrams
6753
