CM35RV-MRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

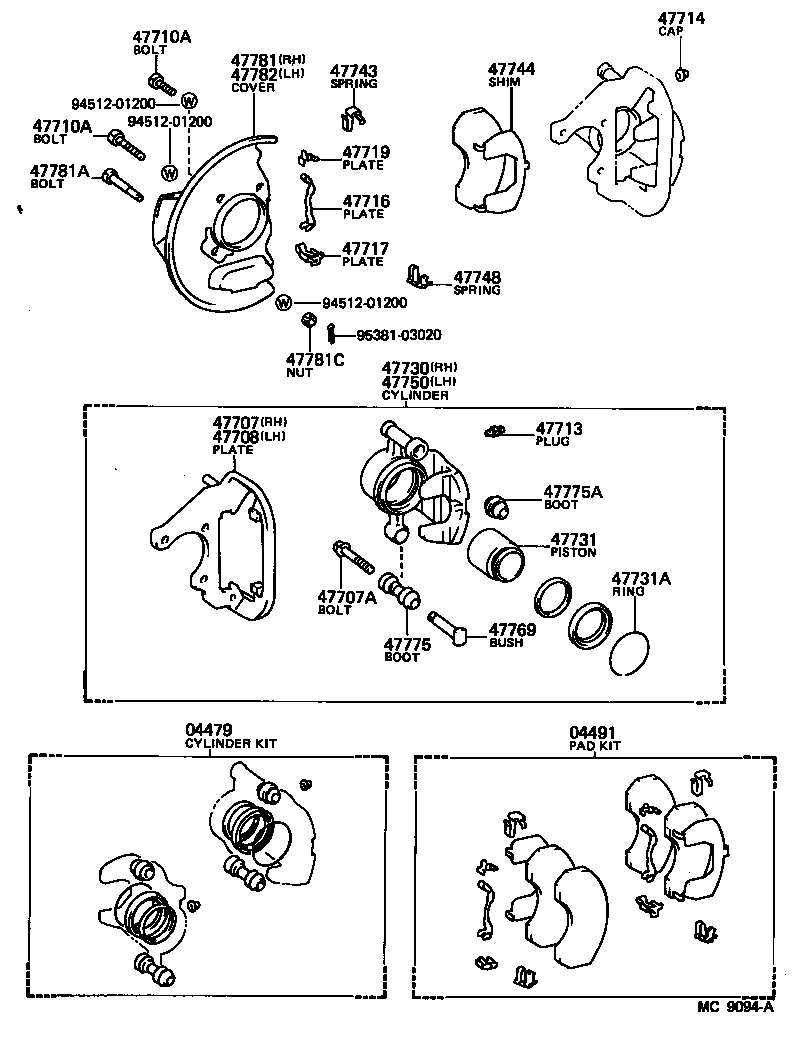

ILLUST NO. 1 OF 2(8510- )

Click highlighted areas on diagram

SINGLE PISTON TYPE

diagram 04479 04491 47707 47707A 47708 47710A 47710A 47713 47714 47716 47717 47719 47730 47731 47731A 47743 47744 47748 47750 47769 47775 47775A 47781 47781A 47781C 47782 9451201200 9451201200 9451201200 9538103020
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-14070

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-28070

CM35,KM36..02S

SINGLE PISTON TYPE

 1
47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
90119-08384

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47708-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12010

CM35,KM3#

*12-1.25PX50-26,L=50

 2
90101-12030

CM35,KM3#

*12-1.25PX31-20,L=30

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12010

CM35,KM3#

*12-1.25PX50-26,L=50

 2
90101-12030

CM35,KM3#

*12-1.25PX31-20,L=30

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

CM35,KM3#

 4
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CM35,KM3#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-28020

CM35,KM3#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-14050

CM35,KM3#

RH

 1
47718-14090

CM35,KM3#

LH

 1
47719 - PLATE, FRONT DISC BRAKE PAD GUIDE
47736-14030

CM35,KM3#

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-27030

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47730-27070

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47731 - PISTON, FRONT DISC BRAKE
47731-14090

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-69002

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-14040

CM35,KM3#

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-28020

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-14050

CM35,KM3#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-27070

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47750-27030

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-28010

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-17010

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47775A - BOOT, PIN
47776-14010

CM35,KM3#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90102-12001

CM35,KM3#

 2
47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
94145-71200

CM35,KM3#

 2
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
Common parts
94512-01200
95381-03020

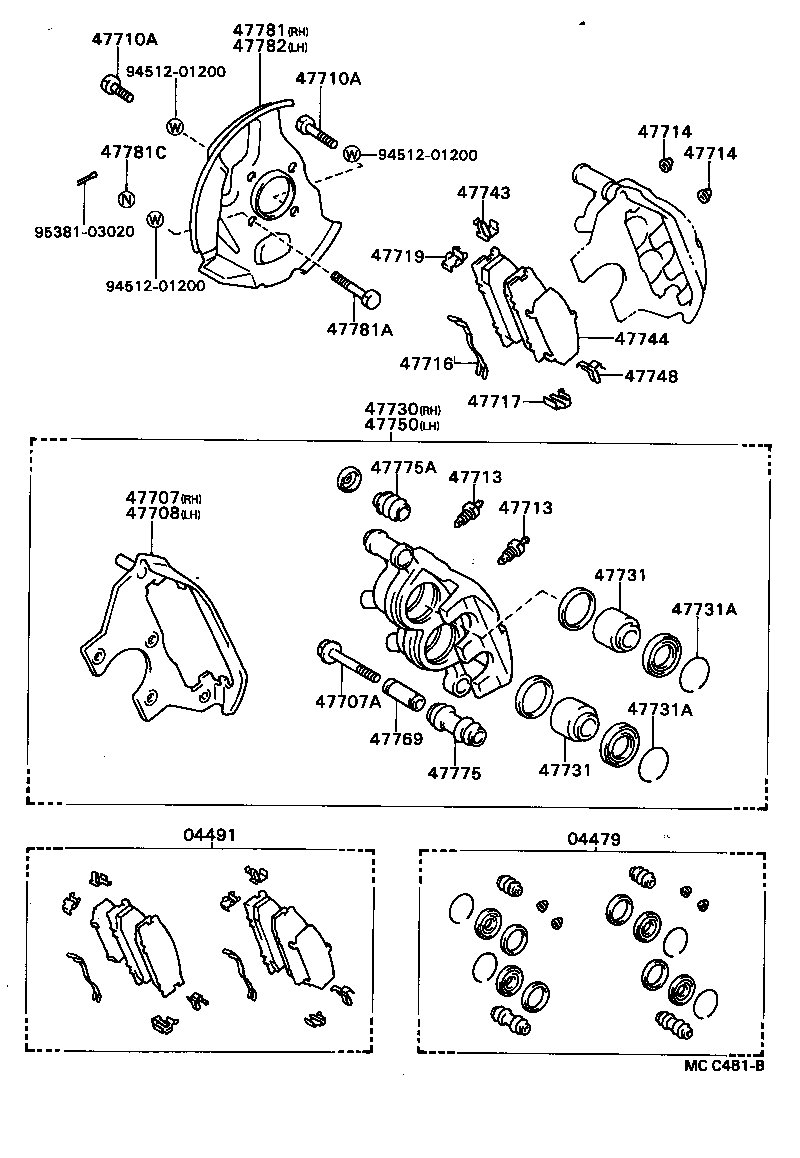

ILLUST NO. 1 OF 2(8510- )

Click highlighted areas on diagram

DUAL PISTON TYPE

diagram 04479 04491 47707 47707A 47708 47710A 47710A 47713 47713 47714 47714 47716 47717 47719 47730 47731 47731 47731A 47731A 47743 47744 47748 47750 47769 47775 47775A 47781 47781A 47781C 47782 9451201200 9451201200 9451201200 9538103020
Part # Description Qty Price
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04479-14070

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
04491 - PAD KIT, DISC BRAKE, FRONT
04491-28070

CM35,KM36..02S

SINGLE PISTON TYPE

 1
47707 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT RH
47707-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47707A - BOLT, HEXAGON(FOR FRONT DISC BRAKE TORQUE PLATE)
90119-08384

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47708 - PLATE SUB-ASSY, DISC BRAKE TORQUE, FRONT LH
47708-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12010

CM35,KM3#

*12-1.25PX50-26,L=50

 2
90101-12030

CM35,KM3#

*12-1.25PX31-20,L=30

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12010

CM35,KM3#

*12-1.25PX50-26,L=50

 2
90101-12030

CM35,KM3#

*12-1.25PX31-20,L=30

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

CM35,KM3#

 4
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-20010

CM35,KM3#

 4
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CM35,KM3#

 4
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

CM35,KM3#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-28020

CM35,KM3#

 2
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-14050

CM35,KM3#

RH

 1
47718-14090

CM35,KM3#

LH

 1
47719 - PLATE, FRONT DISC BRAKE PAD GUIDE
47736-14030

CM35,KM3#

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-27030

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47730-27070

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47731 - PISTON, FRONT DISC BRAKE
47731-14090

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47731 - PISTON, FRONT DISC BRAKE
47731-14090

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-69002

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-69002

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47743 - SPRING, ANTI-RATTLE, NO.2(FOR FRONT DISC BRAKE)
47743-14040

CM35,KM3#

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-28020

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-14050

CM35,KM3#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-27070

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47750-27030

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47769-28010

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-17010

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 2
47775A - BOOT, PIN
47776-14010

CM35,KM3#

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90102-12001

CM35,KM3#

 2
47781C - NUT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
94145-71200

CM35,KM3#

 2
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-28060

CM35;KM36..02S;KM36..4F..05S

SINGLE PISTON TYPE

 1
Common parts
94512-01200
95381-03020

ILLUST NO. 2 OF 2(8510- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-28010

CM35,KM36..02S

SINGLE PISTON TYPE

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-28110

CM35,KM36..02S

SINGLE PISTON TYPE

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-28040

CM35,KM3#

 1
