CM35RV-MRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

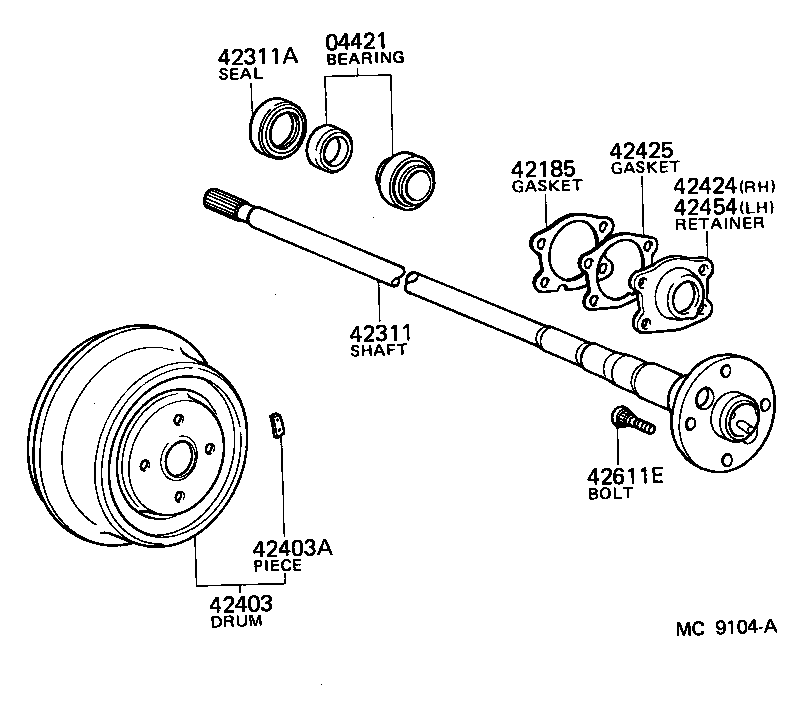

Click highlighted areas on diagram

diagram 04421 42185 42311 42311A 42403 42403A 42424 42425 42454 42611E
Part # Description Qty Price
04421 - BEARING KIT, REAR AXLE SHAFT
04421-27010

CM35,KM3#

 2
42185 - GASKET, REAR AXLE HOUSING END
42185-14020

CM35,KM3#

 2
42311 - SHAFT, REAR AXLE
42311-22100

CM35,KM36

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-52059

CM35,KM3#

 2
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-27020

CM35,KM3#

 2
42431-14061

CM35,KM3#

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01033

CM35,KM3#

50G,50G

 2
90937-01287

CM35,KM3#

10G,10G

 2
90937-01021

CM35,KM3#

40G,40G

 2
90937-01020

CM35,KM3#

20G,20G

 2
90937-01032

CM35,KM3#

30G,30G

 2
90937-01034

CM35,KM3#

60G,60G

 2
90937-01289

CM35,KM3#

30G,30G

 2
90937-01023

CM35,KM3#

10G,10G

 2
90937-01288

CM35,KM3#

20G,20G

 2
42424 - RETAINER, REAR AXLE BEARING, OUTER, RH
42424-14020

CM35,KM3#

 1
42425 - GASKET, REAR AXLE BEARING RETAINER
42425-14020

CM35,KM3#

 2
42454 - RETAINER, REAR AXLE BEARING, OUTER, LH
42454-14010

CM35,KM3#

 1
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

CM35,KM3#

 8
