CM35RV-MRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )1C

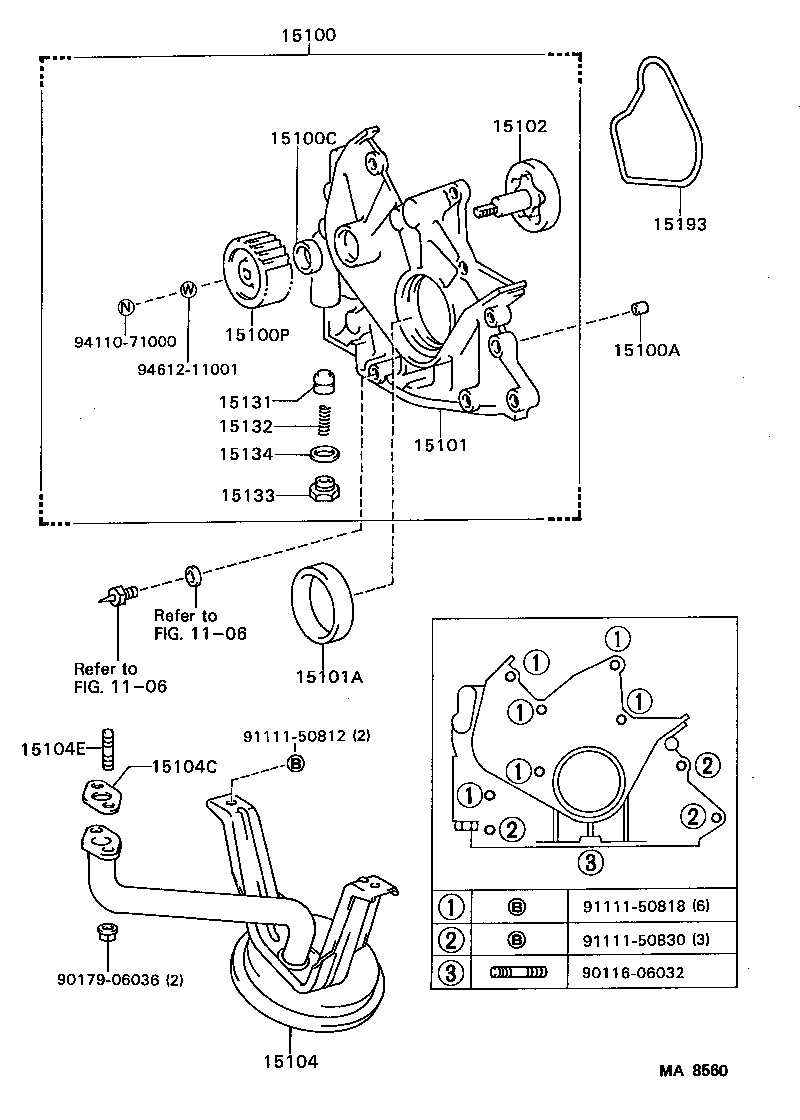

Click highlighted areas on diagram

diagram 1106 1106 15100 15100A 15100C 15100P 15101 15101A 15102 15104 15104C 15104E 15131 15132 15133 15134 15193 9011606032 9017906036 9111150812 9111150818 9111150830 9411071000 9461211001
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-64011

1C..CM35

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

1C..CM35

 2
15100C - SEAL(FOR OIL PUMP)
90029-21007

1C..CM35

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-64010

1C..CM35

 1
15101 - BODY SUB-ASSY, OIL PUMP
15101-64011

1C..CM35

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-42015

1C..CM35

 1
15102 - ROTOR SET, OIL PUMP
15102-64010

1C..CM35

 1
15104 - STRAINER SUB-ASSY, OIL
15104-64030

1C..CM35

 1
15104C - GASKET(FOR OIL STRAINER)
15149-64010

1C..CM35

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06032

1C..CM35

 2
15131 - VALVE, OIL PUMP RELIEF
15131-64020

1C..CM35

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-76011

1C..CM35

 1
15133 - PLUG, OIL PUMP RELIEF VALVE
15133-20010

1C..CM35

 1
15134 - GASKET, OIL PUMP RELIEF VALVE
15134-20010

1C..CM35

 1
15193 - GASKET, OIL PUMP
15193-64021

1C..CM35

 1
Common parts
90116-06032
90179-06036
91111-50812
91111-50818
91111-50830
94110-71000
94612-11001
Linked diagrams
1106
