CM35LV-QRSBEW (1985)
Toyota Liteace Van,Wagon

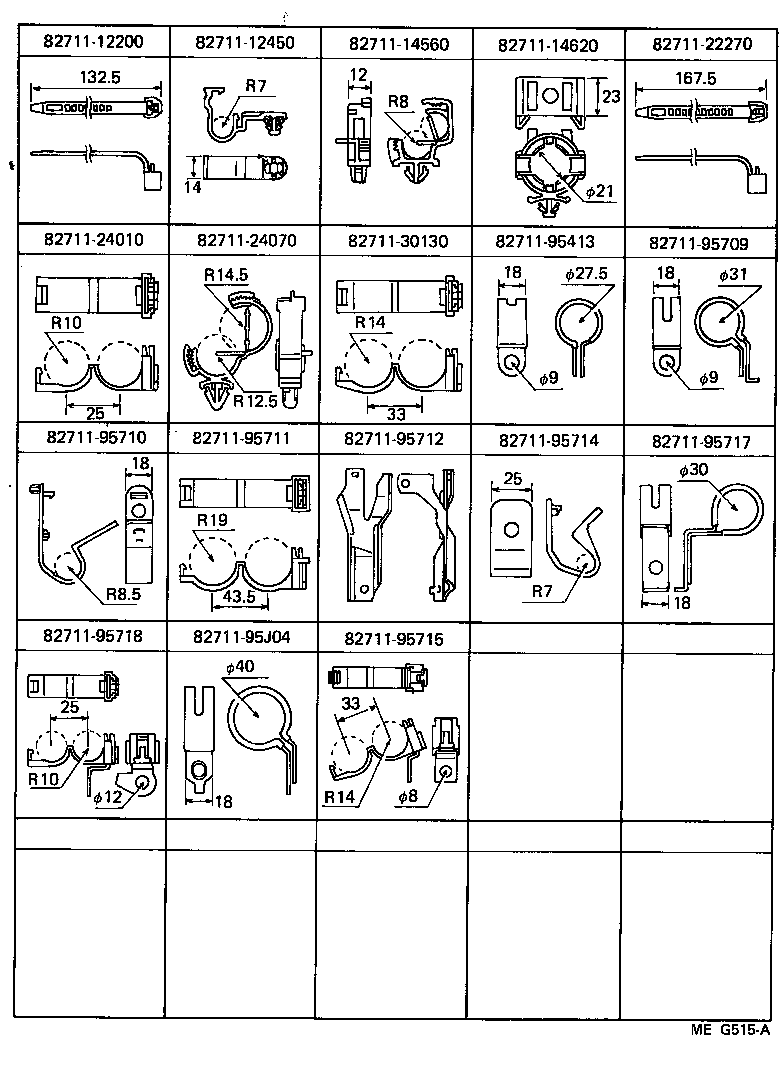

ILLUST NO. 3 OF 3(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-12450 | ||||
| 82711-14560 | ||||
| 82711-14620 | ||||
| 82711-22270 | ||||
| 82711-24010 | ||||
| 82711-24070 | ||||
| 82711-30130 | ||||
| 82711-95413 | ||||
| 82711-95709 | ||||
| 82711-95710 | ||||
| 82711-95711 | ||||
| 82711-95712 | ||||
| 82711-95714 | ||||
| 82711-95715 | ||||
| 82711-95717 | ||||
| 82711-95718 | ||||
| 82711-95J04 | ||||

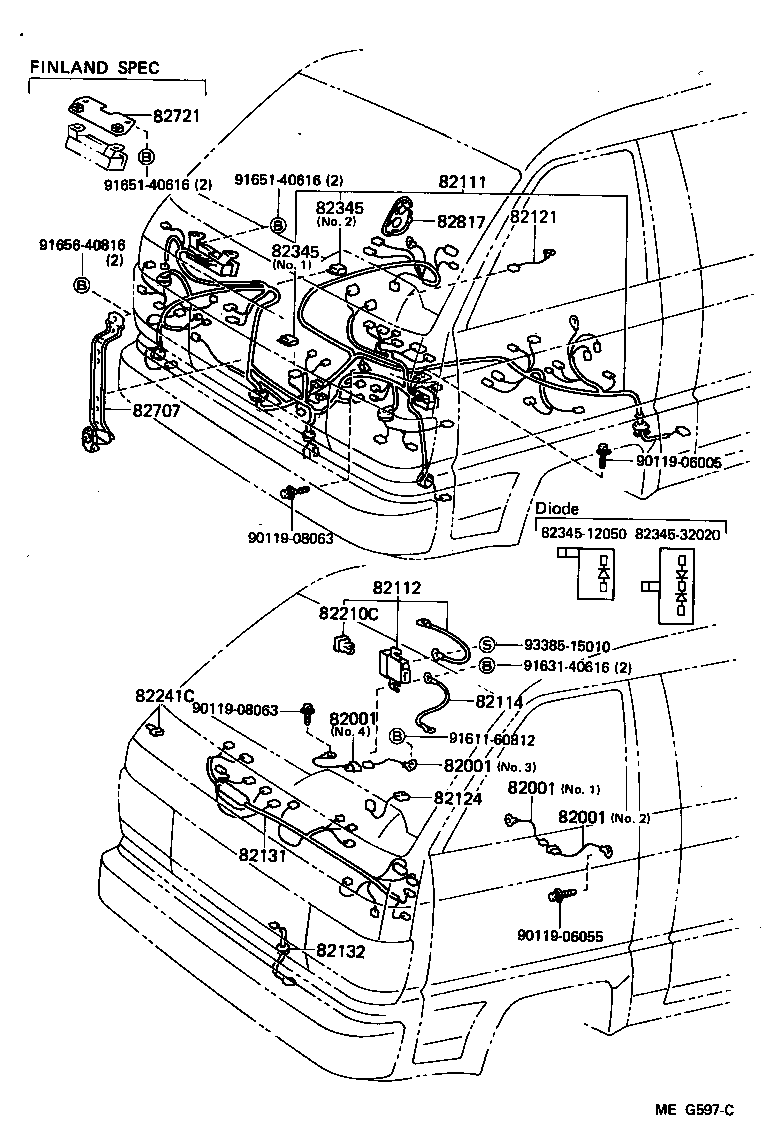

ILLUST NO. 1 OF 3(8510- )CM35..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07259 |
CM35 NO.3 |
1 | ||
| 90980-07258 |
CM35 NO.4 |
1 | ||
| 90980-07228 |
CM35 NO.1 |
1 | ||
| 90980-07206 |
CM35 NO.2 |
1 | ||
| 90980-07275 |
CM35 NO.2 |
1 | ||
| 90980-07276 |
CM35 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07259 |
CM35 NO.3 |
1 | ||
| 90980-07258 |
CM35 NO.4 |
1 | ||
| 90980-07228 |
CM35 NO.1 |
1 | ||
| 90980-07206 |
CM35 NO.2 |
1 | ||
| 90980-07275 |
CM35 NO.2 |
1 | ||
| 90980-07276 |
CM35 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07259 |
CM35 NO.3 |
1 | ||
| 90980-07258 |
CM35 NO.4 |
1 | ||
| 90980-07228 |
CM35 NO.1 |
1 | ||
| 90980-07206 |
CM35 NO.2 |
1 | ||
| 90980-07275 |
CM35 NO.2 |
1 | ||
| 90980-07276 |
CM35 NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07259 |
CM35 NO.3 |
1 | ||
| 90980-07258 |
CM35 NO.4 |
1 | ||
| 90980-07228 |
CM35 NO.1 |
1 | ||
| 90980-07206 |
CM35 NO.2 |
1 | ||
| 90980-07275 |
CM35 NO.2 |
1 | ||
| 90980-07276 |
CM35 NO.1 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-95G61 |
CM35..LHD |
1 | ||
| 82115-95741 |
CM35..LHD |
1 | ||
| 82111-95G07 |
CM35..LHD |
1 | ||
| 82111-95G08 |
CM35..LHD W/LIGHTING WARNING;W/*FH,*RWD,*RFL,*RW OR *REH |
1 | ||
| 82111-95G09 |
CM35..5H FINLAND SPEC |
1 | ||
| 82111-95G63 |
CM35..5H FINLAND SPEC |
1 | ||
| 82111-95G62 |
CM35..LHD W/LIGHTING WARNING;W/*FH,*RWD,*RW OR *REH |
1 | ||
| 82115-95743 |
CM35..5H FINLAND SPEC |
1 | ||
| 82115-95742 |
CM35..LHD W/LIGHTING WARNING;W/*FH,*RWD,*RW OR *REH |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-95706 |
CM35..LHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-95705 |
CM35 |
1 | ||
| 82114-95701 |
CM35 |
1 | ||
| 82114-95703 |
CM35 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95702 |
CM35 |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-95703 |
CM35 |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-95741 |
CM35..LHD..02S |
1 | ||
| 82131-95749 |
CM35,KM36..4H,5H FINLAND SPEC |
1 | ||
| 82131-95742 |
CM35,KM36..LHD..02S W/*RWD,CLOCK,*REH |
1 | ||
| 82131-95G12 |
CM35,KM36..4H,5H FINLAND SPEC |
1 | ||
| 82131-95742 |
CM35,KM3#..LHD W/LIGHTING WARNING |
1 | ||
| 82131-95G11 |
CM35,KM36..LHD..02S W/*RWD,CLOCK,*REH |
1 | ||
| 82131-95G10 |
CM35..LHD..02S |
1 | ||
| 82131-95G22 |
CM35..LHD..02S |
1 | ||
| 82131-95G11 |
CM35,KM3#..LHD W/LIGHTING WARNING |
1 | ||
| 82131-95G23 |
CM35,KM36..LHD..02S W/*RWD,CLOCK,*REH |
1 | ||
| 82131-95G23 |
CM35,KM3#..LHD W/LIGHTING WARNING |
1 | ||
| 82131-95G24 |
CM35,KM36..4H,5H FINLAND SPEC |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-95701 |
CM35,KM3#..LHD |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
CM35 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08203 |
CM35 80A,TERM.:MALE,BLK,80A |
1 | ||
| 90982-08189 |
CM35,KM3# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 82241C - WIRE, RELAY | ||||
| 82241-95701 |
CM35,KM3#..LHD W/*RFL |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CM35,KM3#..LHD NO.1 |
1 | ||
| 82345-12050 |
CM35,KM3# NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
CM35,KM3#..LHD NO.1 |
1 | ||
| 82345-12050 |
CM35,KM3# NO.2 |
1 | ||
| 82707 - SUPPORT SUB-ASSY, WIRING HARNESS | ||||
| 82701-95701 |
CM35,KM3#..LHD |
1 | ||
| 82721 - BRACKET, WIRING HARNESS, NO.1 | ||||
| 87499-95700 |
CM35,KM36..4H,5H |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-95703 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 82345-12050 | ||||
| 82345-32020 | ||||
| 90119-06005 | ||||
| 90119-06055 | ||||
| 90119-08063 | ||||
| 91611-60812 | ||||
| 91631-40616 | ||||
| 91651-40616 | ||||
| 91656-40816 | ||||
| 93385-15010 | ||||

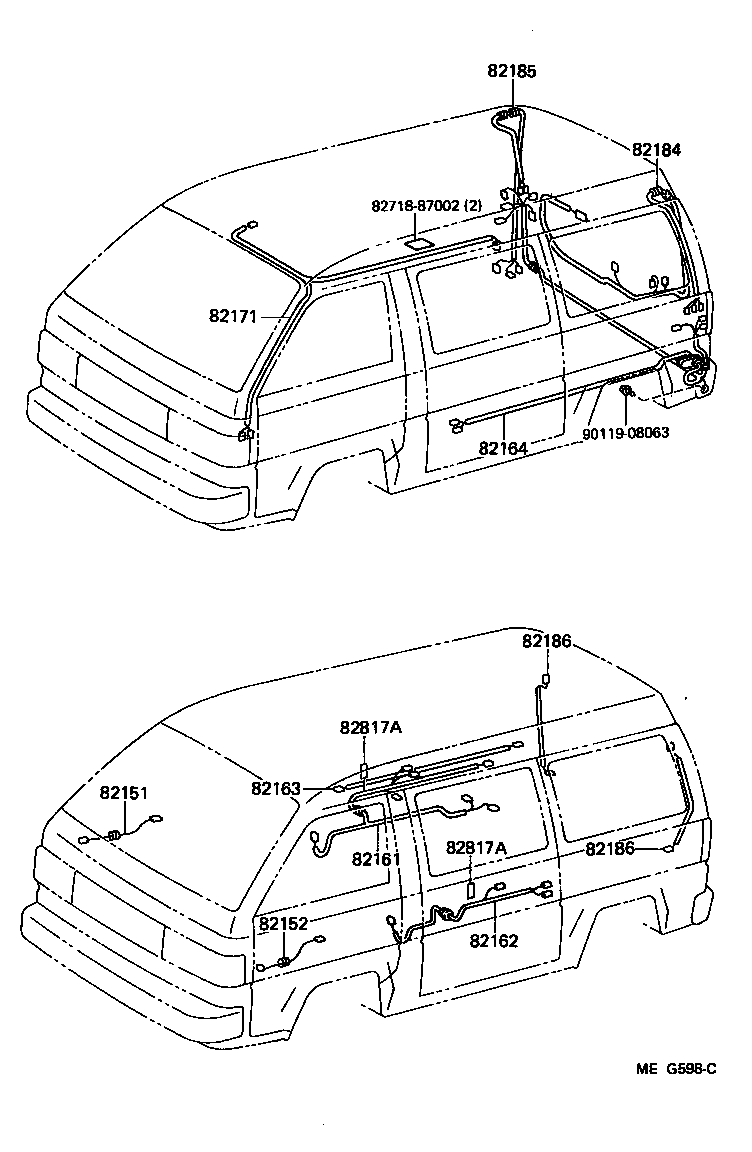

ILLUST NO. 2 OF 3(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-95702 |
CM35,KM3# |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-95700 |
CM35,KM3# |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-95711 |
CM35,KM3#..LHD |
1 | ||
| 82161-95706 |
CM35,KM3#..LHD |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-95700 |
CM35,KM36..LHD |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95706 |
CM35,KM31,36 W/*RWD |
1 | ||
| 82164-95704 |
CM35,KM36..02S |
1 | ||
| 82164-95707 |
CM35,KM3# W/*RW,W/*RW & *RWD |
1 | ||
| 82164-95712 |
CM35,KM3# W/*RFL & *RW,W/*RFL,*RW & *RWD |
1 | ||
| 82164-95712 |
CM35,KM36 W/*RW,W/*RW & *RWD |
1 | ||
| 82164-95711 |
CM35,KM31,36 W/*RFL,W/*RFL & *RWD |
1 | ||
| 82164-95711 |
CM35,KM36 |
1 | ||
| 82164-95737 |
CM35,KM36 |
1 | ||
| 82164-95740 |
CM35,KM36 W/*RW,W/*RW & *RWD |
1 | ||
| 82164-95756 |
CM35,KM36 W/*RW,W/*RW & *RWD |
1 | ||
| 82164-95755 |
CM35,KM36 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95701 |
CM35,KM36..02S |
1 | ||
| 82171-95702 |
CM35,KM3#..MRF |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-95718 |
CM35,KM36..LHD..MRF |
1 | ||
| 82184-95715 |
CM35,KM31,36..MRF |
1 | ||
| 82184-95718 |
CM35,KM31,36..LHD..MRF W/*RFL,W/*RFL & *RWD |
1 | ||
| 82184-95712 |
CM35,KM3#..LHD..MRF W/*RFL & *RW,W/*RFL,*RW & *RWD |
1 | ||
| 82184-95716 |
CM35,KM31,36..MRF W/*RWD |
1 | ||
| 82184-95710 |
CM35,KM3#..MRF W/*RW,W/*RW & *RWD |
1 | ||
| 82184-95712 |
CM35,KM36..MRF W/*RW |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95702 |
CM35,KM3# |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-95702 |
CM35,KM3# |
2 | ||
| Common parts | ||||
| 82718-87002 | ||||
| 90119-08063 | ||||

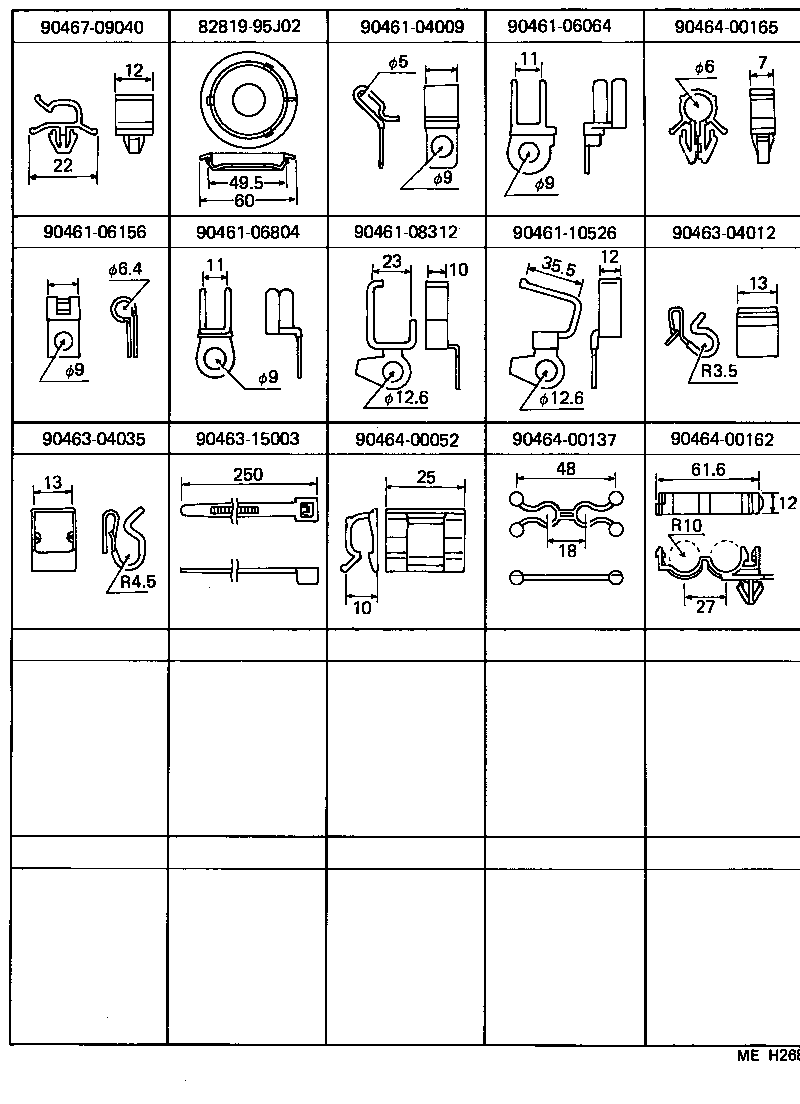

ILLUST NO. 3 OF 3(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82819-95J02 | ||||
| 90461-04009 | ||||
| 90461-06064 | ||||
| 90461-06156 | ||||
| 90461-06804 | ||||
| 90461-08312 | ||||
| 90461-10526 | ||||
| 90463-04012 | ||||
| 90463-04035 | ||||
| 90463-15003 | ||||
| 90464-00052 | ||||
| 90464-00137 | ||||
| 90464-00162 | ||||
| 90464-00165 | ||||
| 90467-09040 | ||||
