CM35LV-QRSBEW (1985)

Toyota Liteace Van,Wagon

Production Oct 1985 - Aug 1988
Engine 1C
Transmission 5H MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8510- )

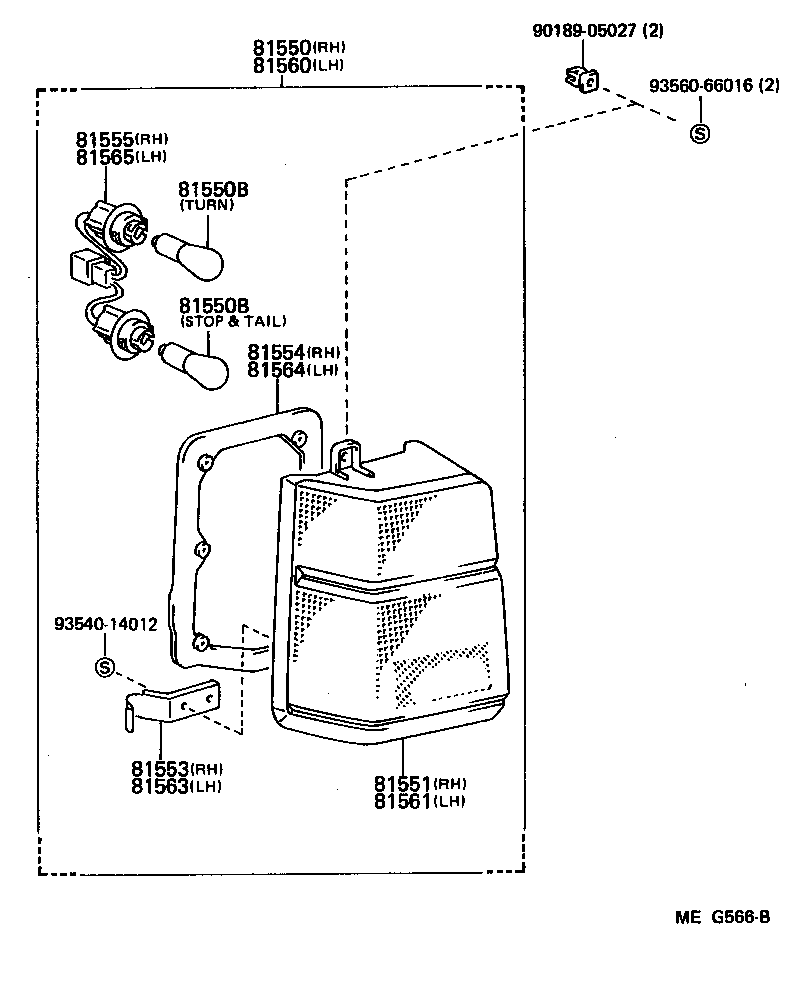

Click highlighted areas on diagram

diagram 81550 81550B 81550B 81551 81553 81554 81555 81560 81561 81563 81564 81565 9018905027 9354014012 9356066016
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-95710

CM35,KM3#

 1
81550-95712

CM35,KM3#

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM35,KM3#

12V 21W,12V 21W(TURN)

 2
99132-21210

CM35,KM3#

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-11210

CM35,KM3#

12V 21W,12V 21W(TURN)

 2
99132-21210

CM35,KM3#

12V 21/5W,12V 21/5W(STOP & TAIL)

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95712

CM35,KM3#

 1
81551-95710

CM35,KM3#

 1
81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH
81556-95707

CM35,KM3#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-95707

CM35,KM3#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95710

CM35,KM3#

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-95710

CM35,KM3#

 1
81560-95712

CM35,KM3#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95712

CM35,KM3#

 1
81561-95710

CM35,KM3#

 1
81563 - BRACKET, REAR COMBINATION LAMP, NO.1 LH
81556-95707

CM35,KM3#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81564-95707

CM35,KM3#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-95710

CM35,KM3#

 1
Common parts
90189-05027
93540-14012
93560-66016
