CM35LV-QRSBEW (1985)
Toyota Liteace Van,Wagon

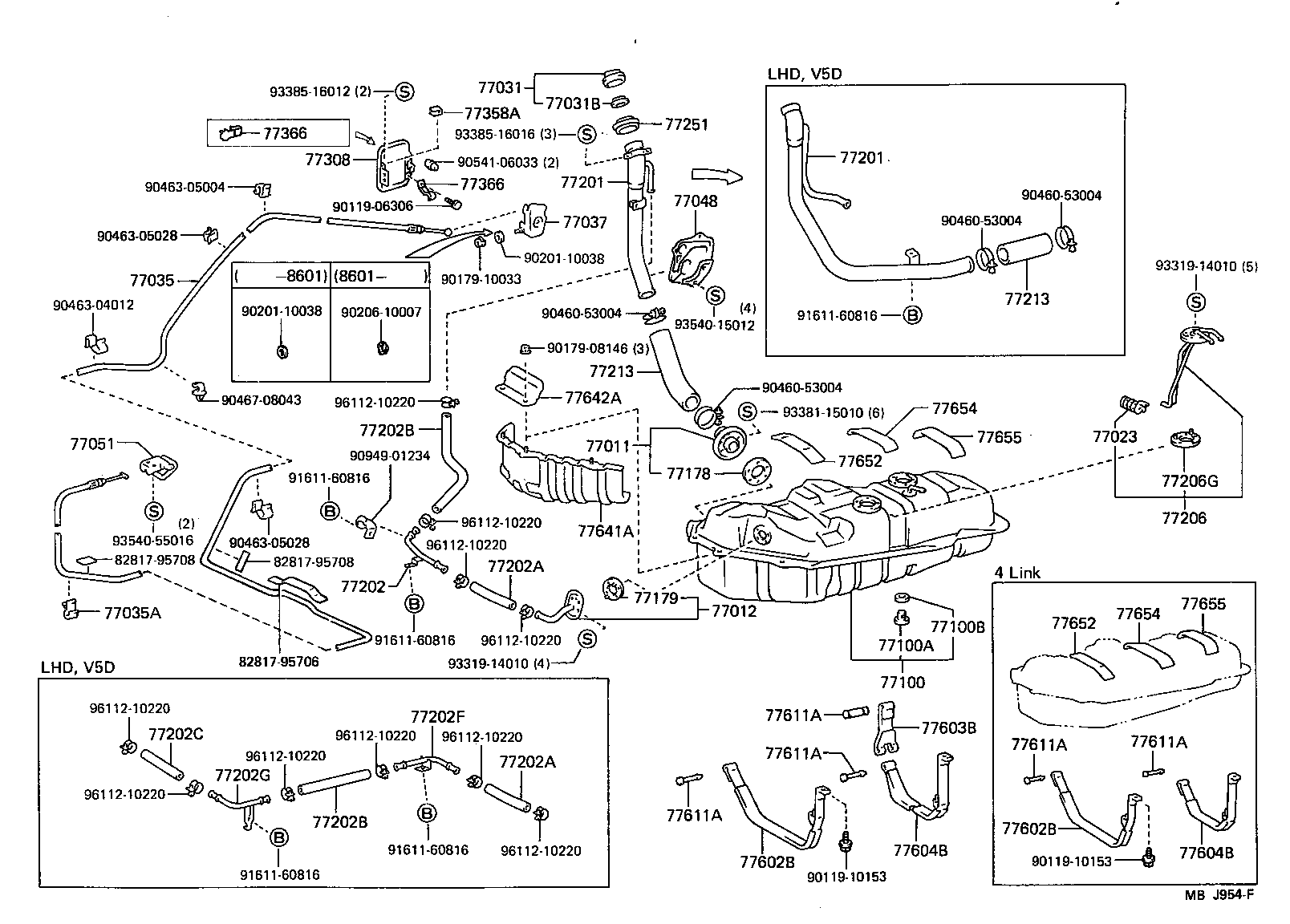

ILLUST NO. 1 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-27010 |
CM35,KM3# |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-27060 |
CM35,KM3# |
1 | ||
| 77012-27061 |
CM35,KM3# |
1 | ||
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-32010 |
CM35 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-35061 |
CM35 |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
CM35,KM3# |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-95702 |
CM35,KM3#..LHD |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 69749-12010 |
CM35,KM3# |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-95700 |
CM35,KM3# |
1 | ||
| 77048 - SEAL SUB-ASSY, FUEL INLET PIPE, UPPER | ||||
| 77048-95700 |
CM35,KM3#..LHD |
1 | ||
| 77051 - LEVER SUB-ASSY, FUEL LID OPEN | ||||
| 77051-95700 |
CM35,KM3# |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-27140 |
CM35..LHD |
1 | ||
| 77001-27310 |
CM35..LHD |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
CM35,KM3# |
1 | ||
| 90341-12116 |
CM35,KM3# |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
CM35,KM3# |
1 | ||
| 90430-20007 |
CM35,KM3# |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-13020 |
CM35,KM3# |
1 | ||
| 77179 - RETAINER, FUEL TANK MOUNTING, FRONT | ||||
| 77179-14030 |
CM35,KM3# |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27190 |
CM35,KM36..LHD |
1 | ||
| 77201-27120 |
CM35,KM3#..LHD |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-27190 |
CM35,KM36..LHD |
1 | ||
| 77201-27120 |
CM35,KM3#..LHD |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-27140 |
CM35,KM3# |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77259-27140 |
CM35,KM3# |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-22013 |
CM35,KM3#..LHD L=270 |
1 | ||
| 77202B - HOSE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 90445-22013 |
CM35,KM3#..LHD L=270 |
1 | ||
| 77202C - HOSE, FUEL, NO.3 (FOR BREATHER TUBE) | ||||
| 90445-22015 |
CM35,KM3#..LHD L=150 |
1 | ||
| 77202F - TUBE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77203-27170 |
CM35,KM3#..LHD |
1 | ||
| 77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE) | ||||
| 77203-27140 |
CM35,KM3#..LHD |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-27110 |
CM35 |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
CM35,KM3# |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77259-27130 |
CM35,KM3#..LHD |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77259-27130 |
CM35,KM3#..LHD |
1 | ||
| 77251 - SHIELD, FUEL TANK, INLET, NO.1 | ||||
| 77251-10010 |
CM35,KM3# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77305-95700 |
CM35,KM3# |
1 | ||
| 77305-95701 |
CM35,KM3# |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-87001 |
CM35,KM3# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-95701 |
CM35,KM3# |
1 | ||
| 77366-95702 |
CM35,KM3# |
1 | ||
| 77360-95700 |
CM35,KM3# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-95702 |
CM35,KM3# |
1 | ||
| 77360-95701 |
CM35,KM3# |
1 | ||
| 77360-95700 |
CM35,KM3# |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-27040 |
CM35,KM30,31 |
1 | ||
| 77602-27041 |
CM35,KM30,31 |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-27040 |
CM35,KM30,31 |
1 | ||
| 77602-27041 |
CM35,KM30,31 |
1 | ||
| 77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH | ||||
| 77614-27010 |
CM35,KM36 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-27030 |
CM35,KM36 |
1 | ||
| 77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH | ||||
| 77604-27030 |
CM35,KM36 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM35,KM3# L=73 |
2 | ||
| 77653-27010 |
CM35,KM36 L=57 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM35,KM3# L=73 |
2 | ||
| 77653-27010 |
CM35,KM36 L=57 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM35,KM3# L=73 |
2 | ||
| 77653-27010 |
CM35,KM36 L=57 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM35,KM3# L=73 |
2 | ||
| 77653-27010 |
CM35,KM36 L=57 |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-28010 |
CM35,KM3# L=73 |
2 | ||
| 77653-27010 |
CM35,KM36 L=57 |
1 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-27020 |
CM35,KM3#..LHD |
1 | ||
| 77642A - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-27061 |
CM35,KM3# |
1 | ||
| 77606-27060 |
CM35,KM3# |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27120 |
CM35,KM3# |
1 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-27120 |
CM35,KM3# |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-27131 |
CM35,KM3# |
1 | ||
| 77654 - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-27131 |
CM35,KM3# |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77651-27150 |
CM35,KM3# |
1 | ||
| 77655 - CUSHION, FUEL TANK, NO.3 | ||||
| 77651-27150 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 82817-95706 | ||||
| 82817-95708 | ||||
| 90119-06306 | ||||
| 90119-10153 | ||||
| 90179-08146 | ||||
| 90179-10033 | ||||
| 90201-10038 | ||||
| 90206-10007 | ||||
| 90460-53004 | ||||
| 90463-04012 | ||||
| 90463-05004 | ||||
| 90463-05028 | ||||
| 90467-08043 | ||||
| 90541-06033 | ||||
| 90949-01234 | ||||
| 91611-60816 | ||||
| 93319-14010 | ||||
| 93381-15010 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93540-15012 | ||||
| 93540-55016 | ||||
| 96112-10220 | ||||

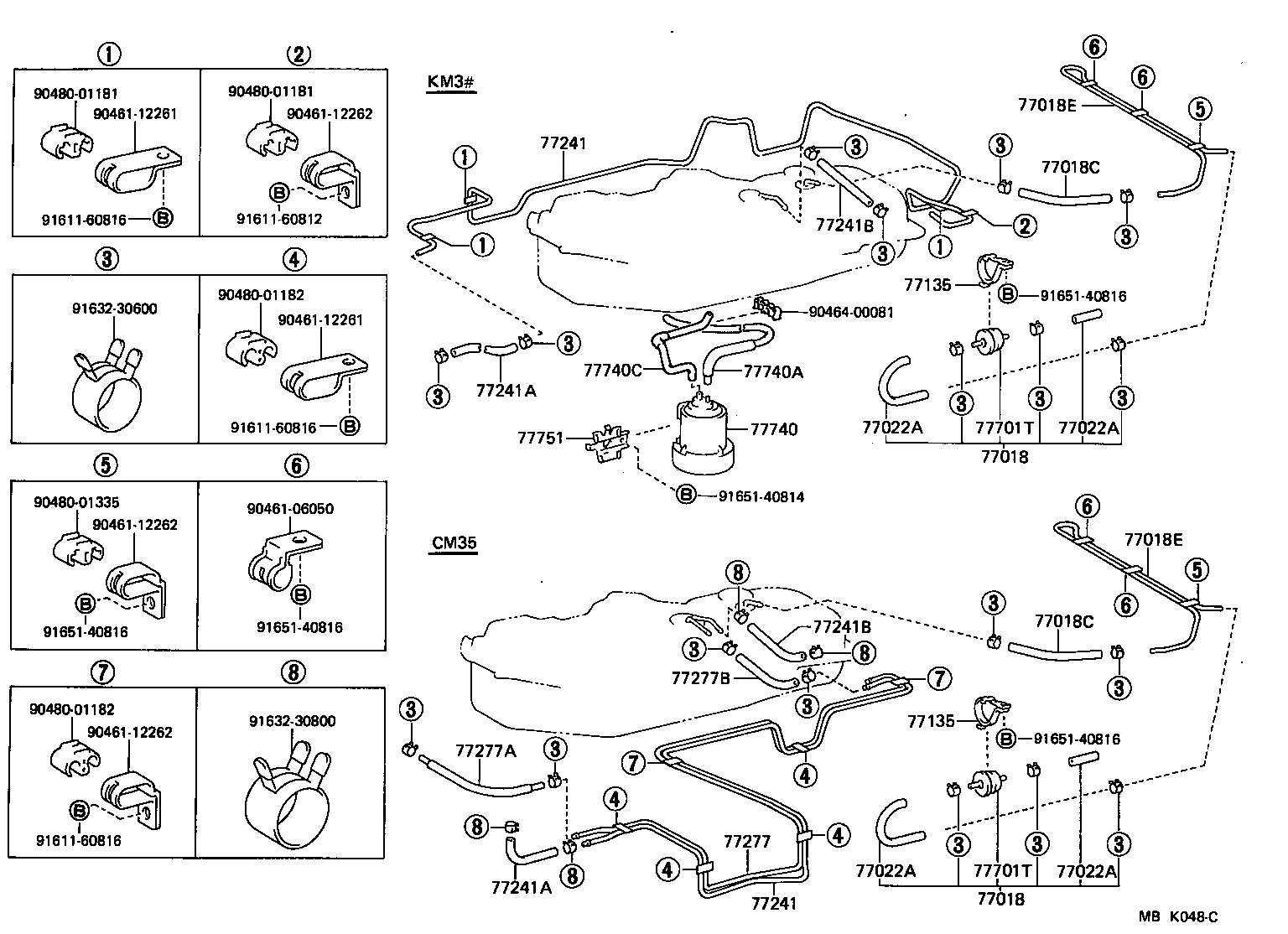

ILLUST NO. 2 OF 2(8510- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-27060 |
CM35,KM3# |
1 | ||
| 77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE | ||||
| 77018-27060 |
CM35,KM3# |
1 | ||
| 77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE) | ||||
| 95333-06020 |
CM35,KM3# *H,L=200 |
1 | ||
| 95332-06020 |
CM35,KM3# *H,L=200 |
1 | ||
| 77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE) | ||||
| 95333-06020 |
CM35,KM3# *H,L=200 |
1 | ||
| 95332-06020 |
CM35,KM3# *H,L=200 |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77227-27010 |
CM35,KM3# |
1 | ||
| 77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT | ||||
| 77227-27010 |
CM35,KM3# |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27170 |
CM35,KM3# L=180 |
1 | ||
| 95333-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 95332-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27170 |
CM35,KM3# L=180 |
1 | ||
| 95333-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 95332-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27170 |
CM35,KM3# L=180 |
1 | ||
| 95333-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 95332-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) | ||||
| 77259-27170 |
CM35,KM3# L=180 |
1 | ||
| 95333-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 95332-06010 |
CM35,KM3# *H,L=50 |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77277-27030 |
CM35,KM3# |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77277-27030 |
CM35,KM3# |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-27200 |
CM35 |
1 | ||
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-27200 |
CM35 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
CM35 *H,L=340,ID=7.6 |
1 | ||
| 95333-08040 |
CM35 L=340 |
1 | ||
| 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08040 |
CM35 *H,L=340,ID=7.6 |
1 | ||
| 95333-08040 |
CM35 L=340 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
CM35 *H,L=150,ID=7.6 |
1 | ||
| 95333-08020 |
CM35 *H,L=150 |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 95332-08020 |
CM35 *H,L=150,ID=7.6 |
1 | ||
| 95333-08020 |
CM35 *H,L=150 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-27200 |
CM35 |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12064 |
CM35 L=540 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 90445-12193 |
CM35 |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
CM35,KM3# |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10067 |
CM35,KM3# |
1 | ||
| Common parts | ||||
| 90461-06050 | ||||
| 90461-12261 | ||||
| 90461-12262 | ||||
| 90464-00081 | ||||
| 90480-01181 | ||||
| 90480-01182 | ||||
| 90480-01335 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91632-30600 | ||||
| 91632-30800 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
